Before you use this device

Thank you for choosing this product from TFA.

Please make sure you read the instruction manual carefully.
Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.
This product should only be used as described within these instructions.
We shall not be liable for any damage occurring as a result of non-following of these instructions. Likewise, we take no responsibility for any incorrect readings or for any consequences resulting from them.
Please pay particular attention to the safety notices!
Please keep this instruction manual safe for future reference.

Safety notices

Keep this device and the battery out of reach of children.
Small parts can be swallowed by children (under three years old).
Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.
Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
Low batteries should be changed as soon as possible to prevent damage caused by leaking.
Remove the battery if the device will not be used for an extended period of time.
Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor.
Unauthorized repairs, alterations or changes to the product are prohibited.
Do not expose the device to extreme temperatures, vibrations or shocks.
Clean the instrument with a soft damp cloth. Do not use solvents or scouring agents.
Protect it from moisture!

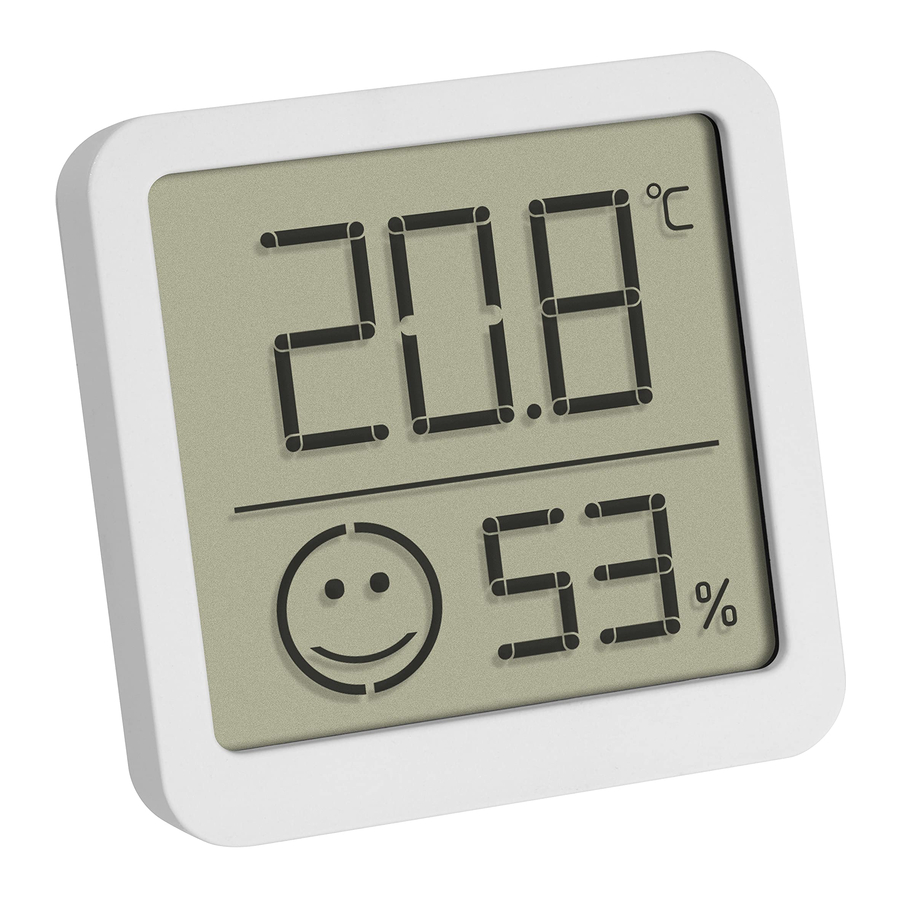

Elements

Temperature
Humidity
Smiley for the comfort level
Stand (for sticking on)
Battery compartment

Getting started

Remove the protective film from the display.
Open the battery compartment and remove the battery insulation strip.
Close the battery compartment.
All LCD segments will be displayed for a short moment.
The device is ready for use.
Temperature and humidity appear on the display.

Comfort level

For the indication of the comfort level of the indoor climate on the display appears:

	*Ideal values*
	19-25°C	40-55%
	25,1-30°C	30-39%, 56-60%
	<19°C, >30°C	< 30%, >60%

Positioning and fixing

Attach the device directly to the desired location using the supplied self-adhesive film. Please clean the surface before.
The device can also be positioned on a flat surface by sticking the stand to the back.

Troubleshooting

Problem	Solution
No display	Ensure that the battery polarity is correct (+pole above) Change the battery
Incorrect indication	Change the battery
Indication: LL / HH	Outside measuring range

If your device fails to work despite these measures, contact the retailer where you purchased the product.

Specifications

Power consumption	Battery CR2032 3V (included)
Measuring range temperature	-10°C... +50°C
Accuracy	±1°C
Measuring range humidity	10%... 99%RH
Accuracy	±5% @ 40...80%
Housing dimension	46 x 13 (34) x 46 mm
Weight	25 g (device only)

No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice.
The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box.
