Pulsar ISF108 Quick Start Manual

 10 ports switch
8 PoE ports 10/100Mb/s, (1÷8 ports) (data and power
supply)
2 ports 10/100/1000Mb/s (G1/TP, G2/TP ports ) (UpLink)
2 ports 10/100/1000Mb/s SFP (G1/SFP, G2/SFP ports)
 30 W for each PoE port, supports devices complaint with
the IEEE802.3af/at standard
 Supports auto-learning and auto-aging of MAC addresses
(16K size)
1. Technical description
1.1. General description.

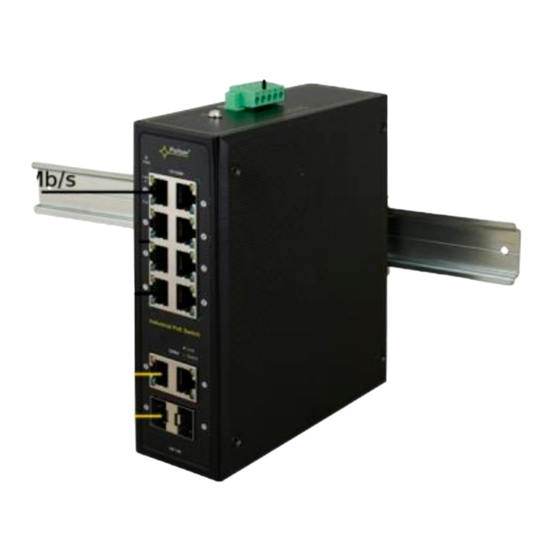

ISF108 is a 10-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE standard is enabled at the 1 – 8 ports of the switch. The G1/TP and
G2/TP ports is used for connection of another network device via RJ45 connector. The switch is fitted with SFP slots (marked as
G1/SFP and G2/SFP), the use of fiber optic module (GBIC) allows fiber optic transmission. Device has solutions that allow it to
be powered from two sources (emergency power supply, redundant power supply) – in case of a failure of one source, it
immediately switches to backup one.
The LEDs at the front panel indicate the operation status (description in the table 3). The PoE technology ensures a
network connection and reduces installation costs by eliminating the need to supply a separate power cable for each device.
This method allows supplying other network devices, such as IP phone, wireless access point or router.
ISF108
v1.0
Industrial switch ISF108 (8xPoE, 2xCombo)
Edition: 1 z dnia 16.01.2020
Supercedes the edition: ---------------
Features
:

Possibility of redundant power supply
 Mounting on a DIN rail (TH35)
 LED indication
 warranty – 2 year from the production date
Example of use.
1
