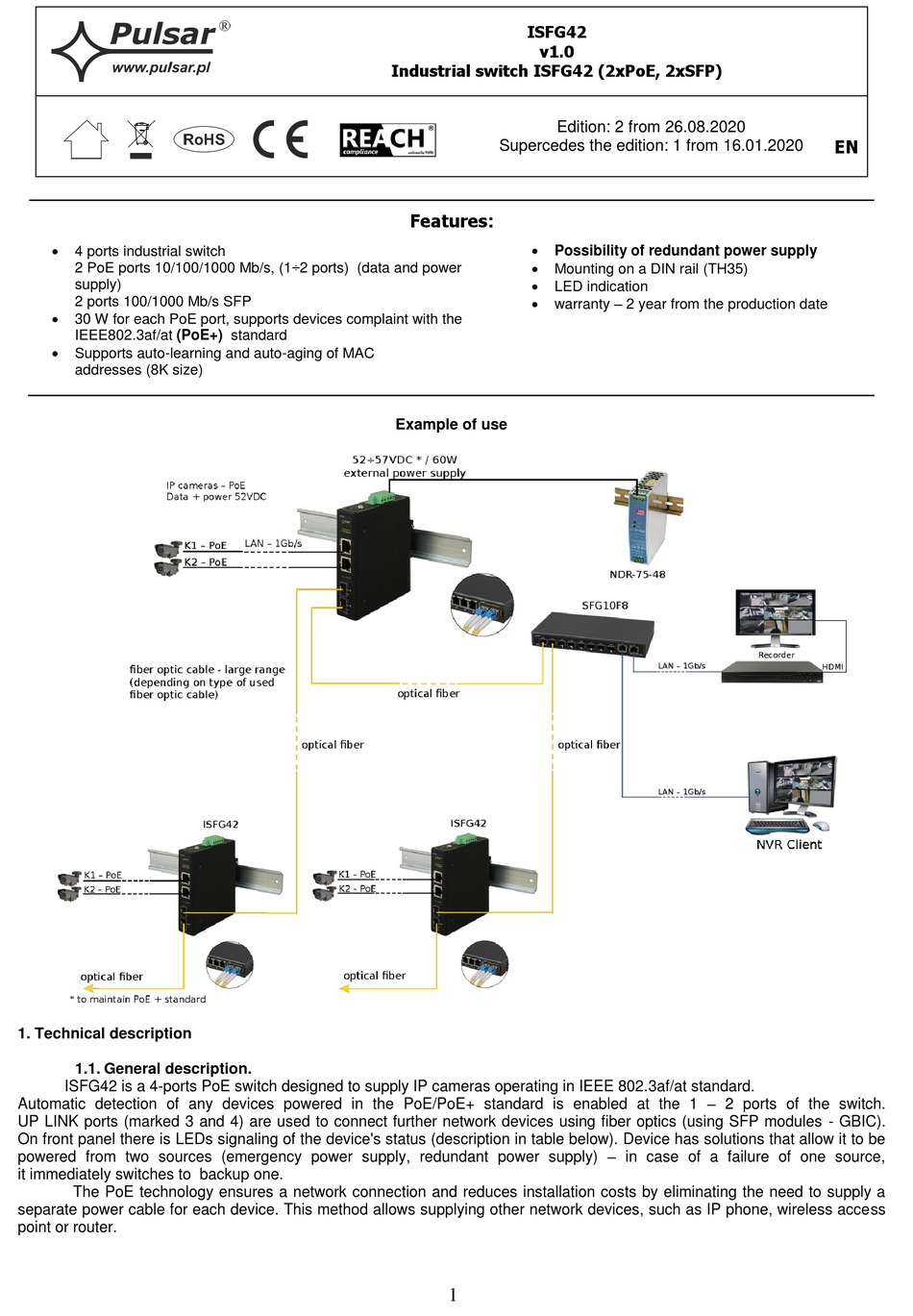

Pulsar ISFG42 Manual


4 ports industrial switch
2 PoE ports 10/100/1000 Mb/s, (1÷2 ports) (data and power
supply)
2 ports 100/1000 Mb/s SFP

30 W for each PoE port, supports devices complaint with the
IEEE802.3af/at (PoE+) standard

Supports auto-learning and auto-aging of MAC
addresses (8K size)
1. Technical description
1.1. General description.
ISFG42 is a 4-ports PoE switch designed to supply IP cameras operating in IEEE 802.3af/at standard.
Automatic detection of any devices powered in the PoE/PoE+ standard is enabled at the 1 – 2 ports of the switch.
UP LINK ports (marked 3 and 4) are used to connect further network devices using fiber optics (using SFP modules - GBIC).
On front panel there is LEDs signaling of the device's status (description in table below). Device has solutions that allow it to be
powered from two sources (emergency power supply, redundant power supply) – in case of a failure of one source,
it immediately switches to backup one.
The PoE technology ensures a network connection and reduces installation costs by eliminating the need to supply a
separate power cable for each device. This method allows supplying other network devices, such as IP phone, wireless access
point or router.
ISFG42
v1.0

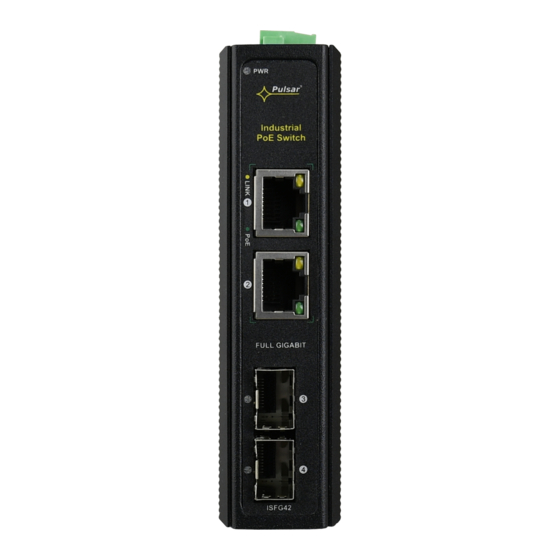

Industrial switch ISFG42 (2xPoE, 2xSFP)
Edition: 2 from 26.08.2020
Supercedes the edition: 1 from 16.01.2020
Features
:

Possibility of redundant power supply

Mounting on a DIN rail (TH35)

LED indication

warranty – 2 year from the production date
Example of use
