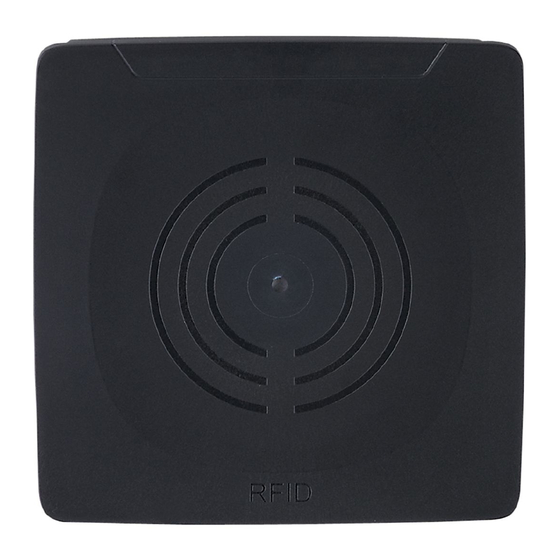

IFM DTE601 Operating Instructions Manual
Rfid compact unit
Hide thumbs
Also See for DTE601:
- Installation instructions manual (25 pages) ,
- Installation instructions manual (25 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IFM DTE601
Summary of Contents for IFM DTE601
- Page 1 Operating instructions RFID compact unit DTE601 DTE602 DTE604 DTE605...
-
Page 2: Table Of Contents
Display elements DTE601........ -
Page 3: Preliminary Note
Warning of damage to property 1.3 Legal and copyright information © All rights reserved by ifm electronic gmbh. No part of these instructions may be reproduced and used without the consent of ifm electronic gmbh. All product names, pictures, companies or other brands used on our pages are the property of the respective rights owners. -
Page 4: Open Source Information
The price of the ifm products has then to be paid for the respective device itself (hardware) and not for the firmware. For the latest information on the license agreement for your product please visit www.ifm.com... -
Page 5: Safety Instructions
RFID compact unit DTE601 DTE602 DTE604 DTE605 2 Safety instructions • The unit described is a subcomponent for integration into a system. – The system architect is responsible for the safety of the system. – The system architect undertakes to perform a risk assessment and to create documentation in accordance with legal and normative requirements to be provided to the operator and user of the system. -
Page 6: Intended Use
ID tags which conform to the system without contact, • can be configured via a web server, • only DTE601: communication with the control level via PROFINET IO, • only DTE602: communication with the control level via EtherNet/IP, •... -
Page 7: Items Supplied
RFID compact unit DTE601 DTE602 DTE604 DTE605 4 Items supplied • RFID compact unit • Package insert 'general information’ • Package insert 'radio approval' The device is supplied without installation and connection accessories. Available accessories: www.ifm.com. The optimum function is not ensured when using components from other manufacturers. -
Page 8: Function
DTE601 DTE602 DTE604 DTE605 RFID compact unit 5 Function The ID tags are operated passively without battery. The energy required for operation is provided by the compact RFID device. The energy is transferred via an electromagnetic wave. The receiving antenna takes up the wave and transforms it into voltage which supplies the data carrier with energy. - Page 9 RFID compact unit DTE601 DTE602 DTE604 DTE605 DTE605 Article number: DTE605 Function: RFID compact unit Type designation: DTRHF HLRWITUS03 Type: rectangular...
-
Page 10: Installation
DTE601 DTE602 DTE604 DTE605 RFID compact unit 6 Installation ATTENTION Radiated electromagnetic field strengths w The device sends ultrahigh frequency electromagnetic waves. It complies with the country-specific limit values for the public and workers. u Disconnect the device in the vicinity of medical equipment. -
Page 11: Mechanical Design
RFID compact unit DTE601 DTE602 DTE604 DTE605 6.4 Mechanical design 1 Sensing face 2 Connections (can be rotated by 270°) 6.5 Mounting options The device can be mounted without the accessories. u For installation, please use the threaded sleeves on the back of the device. -
Page 12: Installation With Fixing Bars E80337
DTE601 DTE602 DTE604 DTE605 RFID compact unit 6.5.3 Installation with fixing bars E80337 6.6 Mounting distances Operating mode Distance side (A) Distance front (B) Read and write (at 100% transmitter ≥ 850 mm ≥ 600 mm power) -
Page 13: Positioning Of The Id Tags
RFID compact unit DTE601 DTE602 DTE604 DTE605 Interference in data communication is avoided if there are no other RFID UHF devices in the vicinity. If there are other RFID UHF devices in the vicinity: u The mounting distances between the devices should be as large as possible. -
Page 14: Electrical Connection
DTE601 DTE602 DTE604 DTE605 RFID compact unit 7 Electrical connection The device must be connected by a qualified electrician. Device of protection class III (PC III). The electrical supply must only be made via PELV/SELV circuits. u Disconnect power before connecting the device. -
Page 15: Connecting The Functional Earth
RFID compact unit DTE601 DTE602 DTE604 DTE605 Reset Ethernet parameters w Reset the Ethernet parameters to factory setting: u Remove all cable connections from the device. u Insert an electrically conductive bridge between pin 2 and pin 4 on the connection “voltage supply PWR”. -
Page 16: Operating And Display Elements
DTE601 DTE602 DTE604 DTE605 RFID compact unit 8 Operating and display elements Fig. 3: Operating and display elements 1 1x LED power (green) 2 Sensing face 4x LED signal bar (yellow) 2x LED field bus (green/red) The following table applies to all units. -
Page 17: Display Elements Dte601
The LEDs of the signal bar (yellow) are on one after the other. Then LED 4 of the signal bar (yellow) flashes at 8 Hz. 8.1 Display elements DTE601 The following tables only apply to the DTE601 device. LED SF LED red LED green... -
Page 18: Display Elements Dte604 / Dte605
DTE601 DTE602 DTE604 DTE605 RFID compact unit LED red LED green State Note Normal operation Connection to the EtherNet/IP scanner is established. The device is configured. The data transfer is running. flashes Minor error A connection to the EtherNet/IP scanner was not established: u Verify voltage supply. - Page 19 RFID compact unit DTE601 DTE602 DTE604 DTE605 LED red LED green State Note flashes Connection to the host controller is established, there is no data ex- change Connection to the host controller is established, data exchange takes place flashes Connection to the host controller is...
-
Page 20: Maintenance, Repair And Disposal
9 Maintenance, repair and disposal The unit is maintenance-free. u Contact ifm in case of malfunction. u Do not open the housing as the unit does not contain any components which can be maintained by the user. The unit must only be repaired by the manufacturer. -
Page 21: Approvals / Standards
RFID compact unit DTE601 DTE602 DTE604 DTE605 10 Approvals / standards The EU Declaration of Conformity, approvals and country-specific certificates are available at: → www.ifm.com Notes relevant for approval: → Package insert...
