1 Preliminary note This document is part of the device and contains information about the correct handling of the product� This document is intended for specialists� These specialists are people who are qualified by their training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device�...
3 Functions and features In combination with the IO-Link master the read/write head DTI513 is used for non-contact reading and writing of RFID tags that conform to the system� The data is available as process data at the IO-Link interface�...

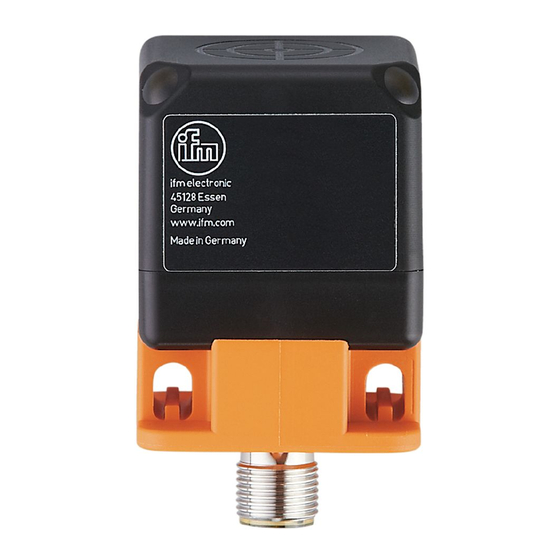

4.2 Overview Art� no�: DTI513 Function: read/write head Type designation: DTRHF MCRWIOUS03 operating frequency: 13�56MHz H X W X D [mm]: 40 x 40 x 54 Max� transmission power: 200 mW 5 Installation 5.1 General installation instructions When mounting several read/write heads adhere to the minimum distances between the systems�...
5.3 Avoiding interference The device generated a modulated electrical field with a frequency of 13�56 kHz� To avoid interference of the data communication no other devices generating interference emission in this frequency band must be operated in the vicinity� Such devices are for example frequency converters and switched-mode power supplies�...
5.6 Fixing ► The device is fixed with 2 M5 screws and nuts� Order non flush or flush� non flush flush 5.7 Mounting distances Operating mode Distance side (A) Distance front (B) For reading and writing ≥ 300 mm ≥ 250 mm...
E80370 E80371 1: front side 5.9 Orientation of the ID tags 1: antenna axis DTI513 = ID tag axis 2: middle of the antenna DTI513 = middle of the ID tag 5.10 Read/write distances Installation read/write head ID tag Type...
► Disconnect power before connecting the unit� 6.1 Wiring ► Connect the unit to the IO-Link master via the M12 connector� > Voltage is supplied via the IO-Link master� IO-Link A selection of sockets is available on our website at: www�ifm�com...
No ID tag in the field_or faulty ID tag in the field or invalid ID tag in the field green + FLASHING ALTERNATELY Device fault yellow 8 Operation The read/write head is configured via the IO-Link master� You can find more information about the operation in the manual: www�ifm�com...
9 Dimensions 10 Technical data The data sheets are available on our website at: www�ifm�com 11 Maintenance, repair and disposal ► Do not open the housing as the device does not contain any components which must be maintained by the user� The device must only be repaired by the manufacturer�...
12.1.2 Europe Use in all EU countries 12.1.3 EC declaration of conformity ifm electronic gmbh hereby declares that the DTI513 radio system corresponds to the directive 2014/53/EU� You can find the EC declaration of conformity on our website at: www�ifm�com�...
