Dimension Sketch - SCAN 41 Assembly And Instruction Manual

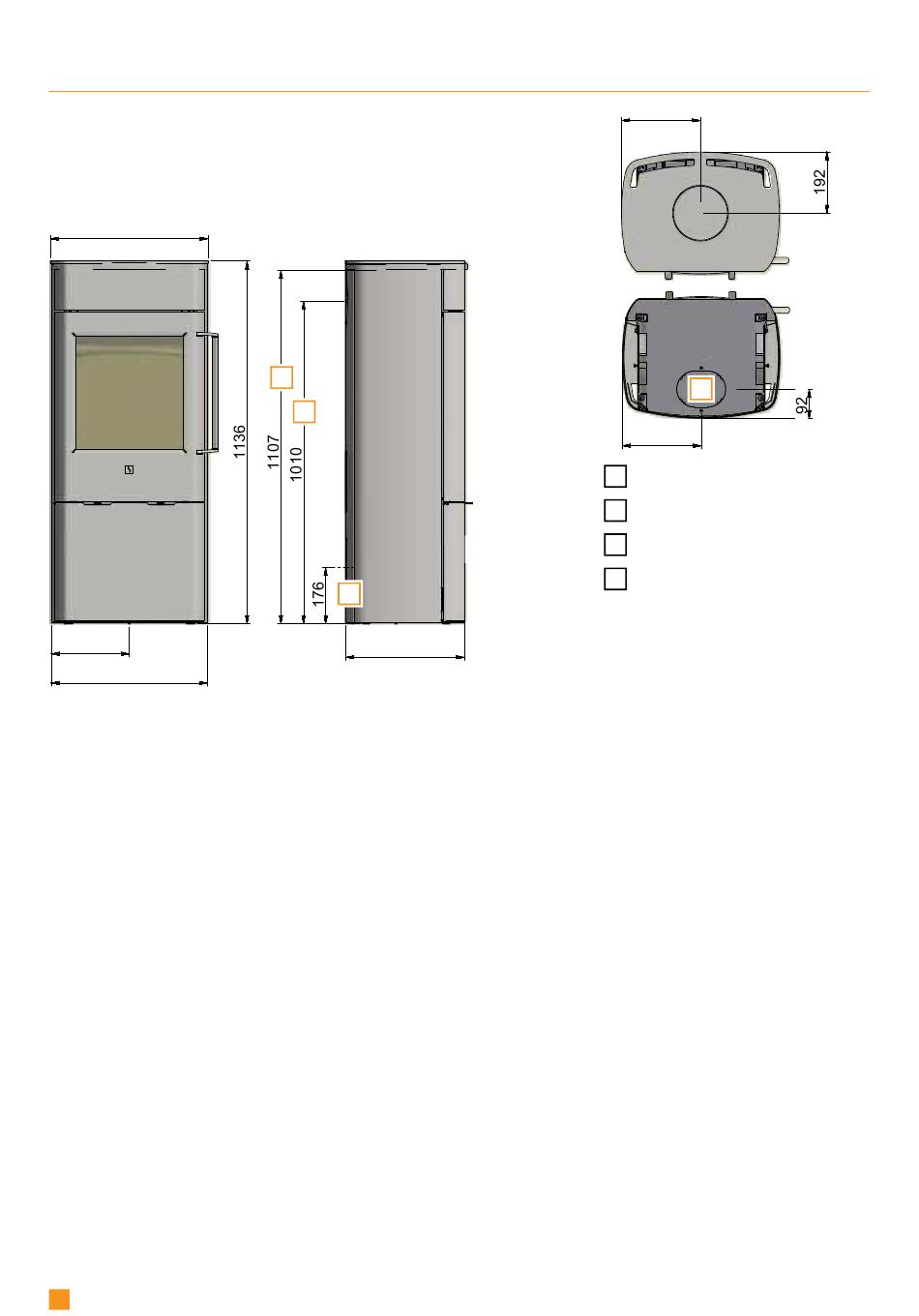

DIMENSION SKETCH

SCAN 41-1 AND 41-2
494
245
490
6
B
A
D
371
247
C
247
A
Centre rear outlet
Height to the beginning of the
B
connecting piece at top outlet
C
Fresh air intake bottom
Fresh air intake at the back
D
of the stove
All measurements are in millimeters
