SCAN 41 Assembly And Instruction Manual page 14

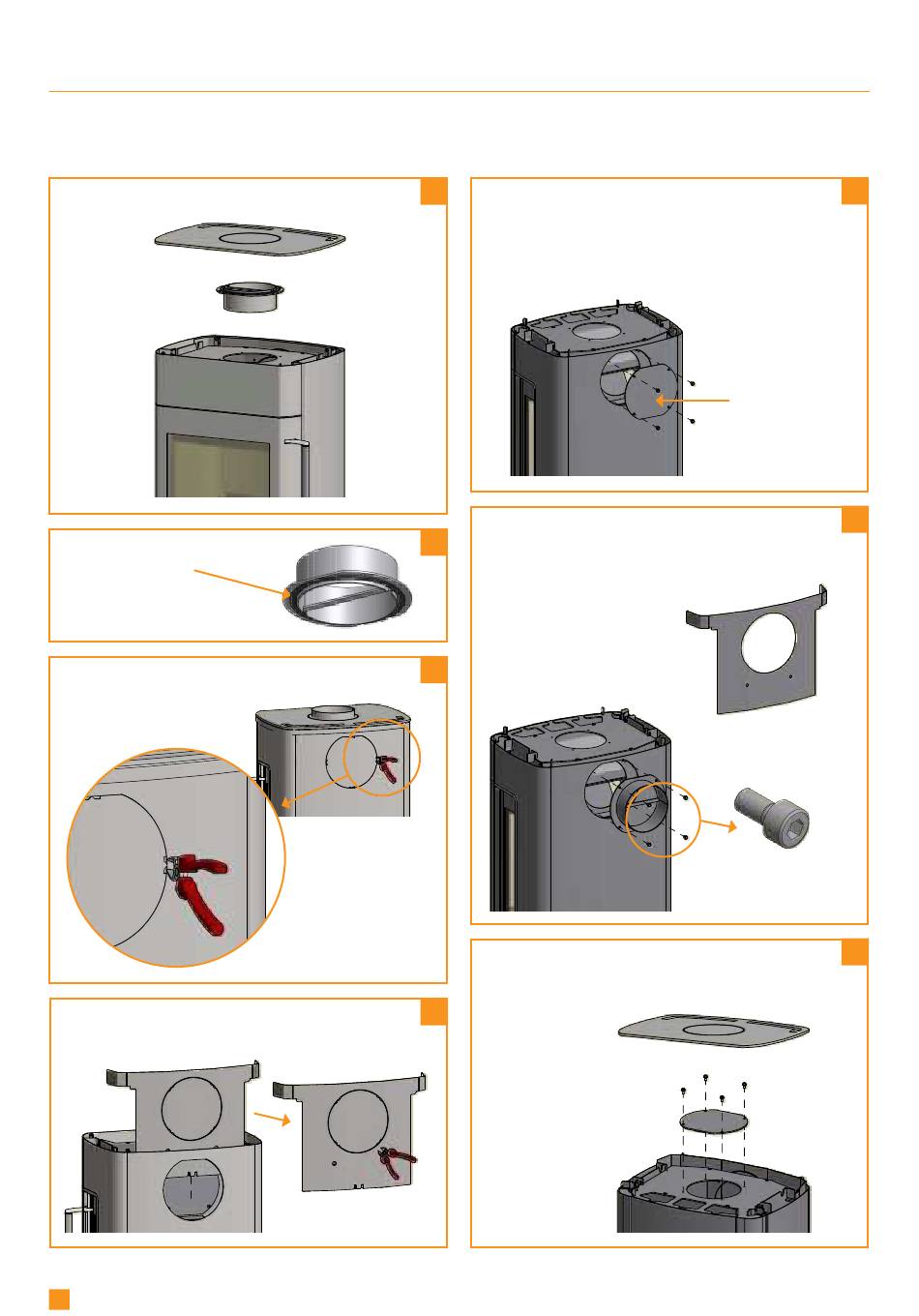

FITTING THE FLUE CONNECTION PIECE
The stove is prepared from the factory for top outlet.
The connecting piece is placed loosely in the top outlet of the stove. The gasket for the connecting piece and the screws for
fastening the connecting piece are in the stove's ash drawer.
Lift the top plate and connecting piece off the stove
Mount the ceramic gasket on the
connecting piece
Cut off the cover plate from the rear plate with cutting
pliers at the fastening points
Lift the heat shield off the stove and cut the cover
plate free using cutting pliers at the fastening points.
Remove the heat shield
14
IN THE REAR OUTLET
1
Remove the cover. This is to be used later as a seal
and cover at the top of the smoke outlet
Fit the connecting piece with the four screws found in
2 the stove's ash drawer. Hook the heat shield onto the
stove
3
Fit the cover and tighten it.
Replace the top plate
4
5
Cover plate
6
4 pcs.
M5x12 mm screws
7
