Summary of Contents for Bernini BUDDHA FOUNTAIN

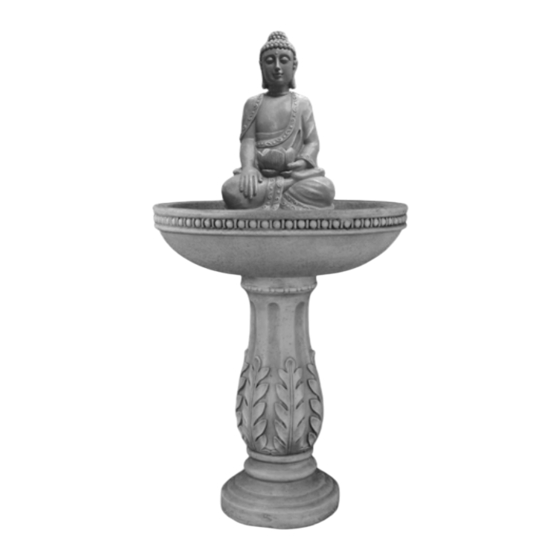

- Page 1 BERNINI BUDDHA FOUNTAIN OWNER’S MANUAL 2022...
- Page 2 We think rights. However, registering your fountain will it’s important that you know what allow Bernini Fountains to better serve you you can expect from us. This is with any of your customer care needs. why we have a limited one year warranty on our fountains.
- Page 3 This product comes with a one year limited warranty against materials and workmanship, see page 21. Please review the list of accessories included with your Bernini™ Fountain on the next page. Please note, images of parts are not to scale with one another. About Buddha:...
- Page 4 PARTS FOR YOUR BERNINI FOUNTAIN ™ Buddha Topper Rechargeable Battery Water Pump Assembly Large Bowl Battery Charger Connection Port Base Battery Compartment Leveling Shim Door...
-
Page 5: Table Of Contents
CONTENTS PAGE STEP 1: BASE & LARGE BOWL Bowl Locking System STEP 2: BUDDHA TOPPER INSTALLATION Installing The Buddha Topper STEP 3: BATTERY INSTALLATION 7 - 9. Connecting The Battery: Battery Operation Mode Inserting the Battery Compartment Door Removing the Battery Compartment Door STEP 4: SETTING UP YOUR FOUNTAIN Fill Your Fountain 12 - 13. -
Page 6: Step 1: Base & Large Bowl
BASE & LARGE BOWL You will need: Base Large Bowl... -
Page 7: Bowl Locking System
BOWL LOCKING SYSTEM A look at how the bowl locking system works on your Fountain. Bottom of Large Bowl Top of Base Note: You will notice that there are two different sized Step 1: Be sure to place tabs on the bottom of the Large Bowl and there are two the Base of your fountain corresponding grooves in the top of the Base. -
Page 8: Step 2: Buddha Topper Installation
BUDDHA TOPPER INSTALLATION You will need: Buddha Topper Assembled Base & Water Pump Large Bowl Assembly... -
Page 9: Installing The Buddha Topper
INSTALLING THE BUDDHA TOPPER In the next step, you will Step 1: Rest the Buddha Step 2: Firmly press the Topper on the side of the Large install the Buddha Topper plug into the pipe in the Bowl. Feed the water pump onto the Large Bowl. - Page 10 QUICK TROUBLE SHOOTING TIP If your fountain did not come with the Water Pump already connected to the tube inside of the Buddha Topper or if the Water Pump gets discon- nected from the Buddha Topper, use these instructions to reconnect your Water Pump.
-
Page 11: Step 3: Battery Installation
BATTERY INSTALLATION You will need: Fountain Battery Assembled Charger Battery Rechargeable Compartment Connection Battery Door Port... -
Page 12: Connecting The Battery: Battery Operation Mode
CONNECTING THE BATTERY: BATTERY OPERATION MODE Step 1: In the open battery Step 2: Using the cords from inside compartment, you will see two cords the Base and the cord from the Battery, hanging down that you must connect to connect the color coded cords to their the Connection Port. - Page 13 CONNECTING THE BATTERY: BAT. OPERATION MODE (CONTINUED) Yellow Yellow Gray Gray Battery Black Black Water Pump Blue Blue ABCD Button Remember if you need help contact Customer Care: 1+ (619) 449-2392...
-
Page 14: Inserting The Battery Compartment Door
Step 3: Once the Door is in place, you may notice a small notch in the bottom left corner of the battery compartment door. This is for the optional Bernini Solar Panel or Extension cord or the extension cable. Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 15: Removing The Battery Compartment Door
REMOVING BATTERY COMPARTMENT DOOR Step 1: Carefully disconnect the Battery Step 2: Then, pull the Battery Compartment Door from the Base by Compartment Door up and out to gently pulling outward from the top. remove from the Base. DO NOT OVEREXTEND THE BATTERY COMPARTMENT At this point, your fountain should DOOR BY PULLING DOWN! -
Page 16: Step 4: Setting Up Your Fountain
SETTING UP YOUR FOUNTAIN You will need: WATER TO FILL YOUR FOUNTAIN Fountain Assembled... -
Page 17: Fill Your Fountain
The on-board control panel is located near the top of the base, just below the bowl. See the diagram below to see how the all-new on-board controls work for your Bernini™ Fountain. IF YOUR FOUNTAIN IS MAKING A LOUD NOISE, DON’T PANIC! This just means that there are air bubbles stuck in the water pump. - Page 18 OPERATING YOUR FOUNTAIN ( CONTINUED) BUTTON DESCRIPTION Runs the fountain for 1-4 hours with automatic shut off. One hour operation: press the A button once for your fountain to turn on with an automatic shut-off after one hour of operation. Two hour operation: press the A button twice and your fountain will automatically shut-off after two hours of operation.
-
Page 19: Troubleshooting And Maintenance
You can now try your fountain to see if everything is working correctly! Turn your fountain on and you should see water flowing from the outlet on the top of the Topper. If water is not flowing, please refer to the “Priming The Water Pump” in the “Troubleshooting &... -
Page 20: Priming The Water Pump
WATER PUMP CONNECTION (CONTINUED) Step 3: Connect the male outlet on the top of the water pump to the tube inside of the Buddha Topper. Make sure this connection is snug. Then reassemble the Buddha Topper with the instructions on page 3. PRIMING THE WATER PUMP IS YOUR FOUNTAIN MAKING A LOUD NOISE OR DO YOU NOT SEE WATER FLOWING? If you find the water pump is running, but water is not flowing from your fountain, or you hear a loud grinding... -
Page 21: Using Leveling Shims
PRIMING THE WATER PUMP (CONTINUED) Step 1: Submerge the Step 2: Turn the fountain Step 3: Reconnect the water pump into the water on and you should see water pump to the feeder inside the large bowl and water flowing from the tube inside the Buddha lightly shake the pump pump. -
Page 22: Weighing Down Your Fountain
RECHARGING THE BATTERY After about 40 hours of run time, it may be time to charge the battery for your Bernini™ Fountain. . Once plugged into the outlet, the light will glow a solid red until charged. . When charging is complete the light will turn green. -
Page 23: Cleaning Your Fountain
The impeller inside of the water pump is what pushes water up through your fountain, allowing you to enjoy the soothing sounds and wonderful sights of your Bernini™ Fountain. After long periods of usage, this part will need to be cleaned to make sure your fountain runs optimally. -
Page 24: Cold Storage
CLEANING YOUR WATER PUMP IMPELLER (CONTINUED) Step 1: Remove the front of the water Step 2: Remove the impeller chamber pump by grabbing the sides of the cover. This is tightly fitted on to the front panel and pull it off the unit. impeller chamber, but will come off. -
Page 25: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM SOLUTION Charge battery for recommended time (Refer to Recharging your Battery). If battery Fountain is not working has been charged and still will not hold a charge it may need to be replaced. Check that battery is fully charged: See charging battery section. Lights or Pump not working Check that the connection port cables are secure. - Page 26 If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Bernini™ and provide a description...
- Page 27 IMPORTANT BATTERY SAFETY INSTRUCTIONS DANGER: Do not store battery in an airtight container as it may cause an explosion. WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following: WARNING: 1.
- Page 28 BERNINI THANK YOU FOR SELECTING BERNINI FOUNTAINS We’re excited to offer you the highest quality fountains with the reliability you need! We would love to hear if you have any sug- gestions or ideas that can be incorporated into new or enhanced features.
