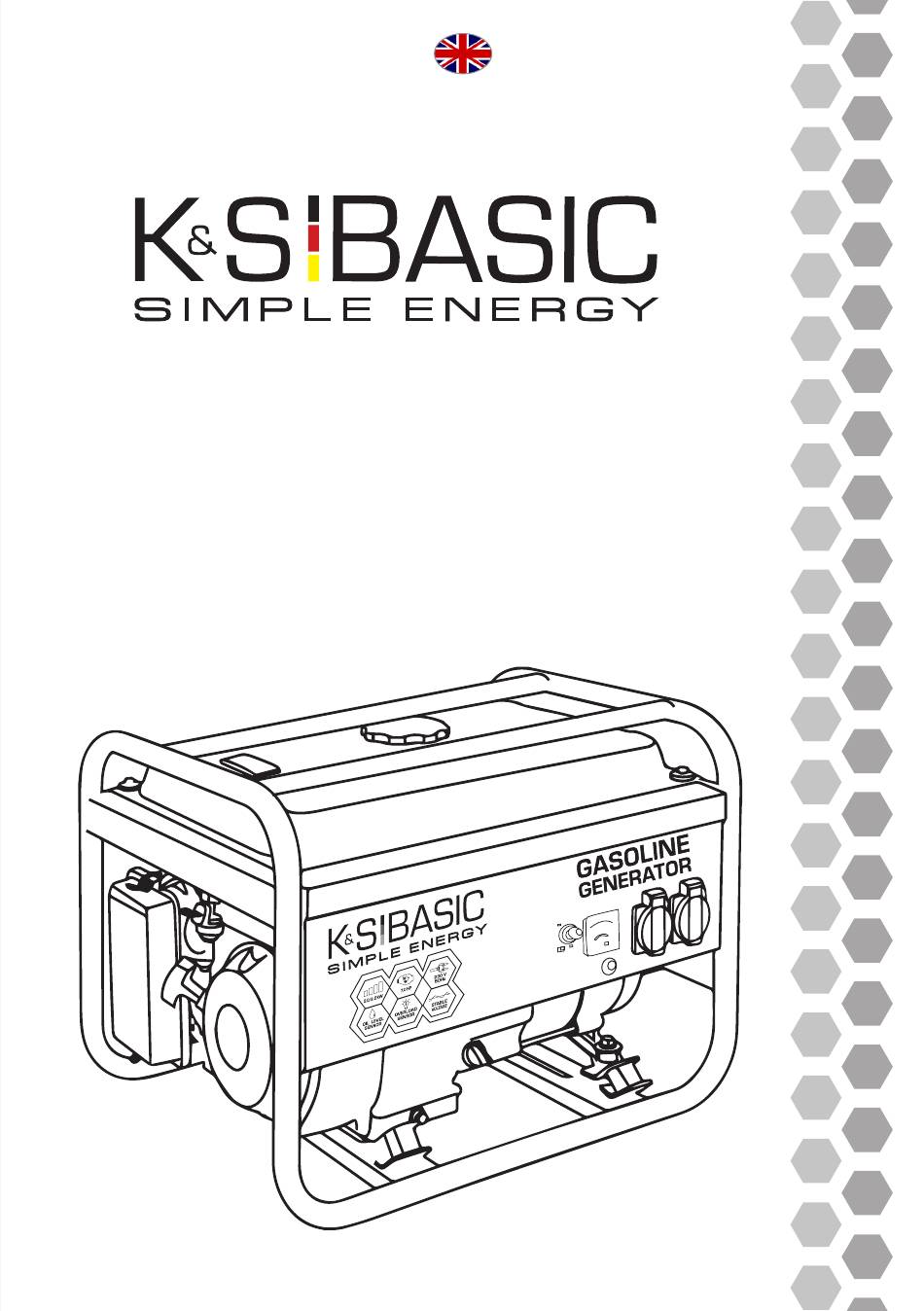

- Page 1 OWNER’S MANUAL Please, read this manual carefully before use! Gasoline generator KSB 1200C KSB 2200A KSB 2200C KSB 2800A KSB 2800C KSB 3500C KSB 6500C KSB 6500CE...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of K&S Basic products. This manual contains a brief description of safety, use ® and debugging. More information can be found on the official manufacturer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of K&S Basic products: www.konner-sohnen.com ®... -
Page 3: Electrical Safety
ELECTRICAL SAFETY The device generates electricity. Follow safety precautions to ATTENTION – DANGER! avoid electric shock. The generator should be used as an IT or TN system based on the application. Earthing and additional protective measures such as insulation monitoring or protection against accidental contact IMPORTANT! (residual current device) must be provided based on the applica- tion and the system used. -
Page 4: Specifications
SPECIFICATIONS Model KSB 1200C KSB 2200A KSB 2200C KSB 2800A Voltage, V Maximum power, kW Rated power, kW Frequency, Hz Current max, A 4,35 9,57 9,57 12,17 Outlets 1*16А 2*16А 2*16А 2*16А Fuel tank capacity, L Voltmeter Noise level Lpa(7m)/Lwa, dB... - Page 5 Model KSB 2800C KSB 3500C KSB 6500C KSB 6500CE Voltage, V Maximum power, kW Rated power, kW Frequency, Hz Current max, A 12,17 13,04 23,91 23,91 Outlets 2*16А 2*16А 1*16А, 1*32А 1*16А, 1*32А Fuel tank capacity, L LED display LED display Voltmeter / LED display Voltmeter (voltage frequency...
- Page 6 GENERAL VIEW AND COMPOSITION OF THE GASOLINE POWERED GENERATOR 1. Fuel cap 5. Hand starter 9. Fuel level indicator 2. Control panel 6. Fuel valve 10. Damper 3. Oil dipstick 7. Air filter 11. Alternator 4. Oil drain cap 8. Air choke lever 12.
-
Page 7: Starting To Work
STARTING TO WORK CHECK THE FUEL LEVEL CHECK THE FUEL LEVEL 1. Wear protective gloves to avoid getting gasoline on your skin. 2. Unscrew the fuel cap and check the fuel level in the tank. 3. Fill the fuel tank to the fuel filter level. 4. -
Page 8: Maintenance
Fuel valve Air choke OPEN Closed Hand starter Open closed open CLOSE 1. Move the fuel valve to the “OPEN” position. 2. Set the air choke to the closed position. 3. For elektrostart generators - turn the key in the «START» position and hold in that position for several seconds before starting the engine. -
Page 9: Recommended Oils
TECHNICAL MAINTENANCE WORKS Node Service type Checking level Motor oil Changing Checking/ Cleaning Air filter Changing Cleaning Sparking plug Changing Checking level Fuel tank Cleaning Fuel filter Cleaning - If the generator is often working at high temperature or at high load, the oil should be replaced every 25 operating hours. - Page 10 Avoid draining the engine oil immediately after stopping the engine. The oil is hot and should be handled with care to avoid ATTENTION - DANGER! burns. TO DRAIN OIL, PROCEED AS FOLLOWS: TO DRAIN OIL, PROCEED AS FOLLOWS: 1. Place the generator on a flat surface and warm up the engine for several minutes. Stop the engine and turn the fuel tank cap to the “OFF”...
-
Page 11: Generator Storage
Potential faults and troubleshooting methods, as well as average device capacities can be found in thefull version Potential faults and troubleshooting methods, as well as average device capacities can be found in thefull version of the manual. of the manual. GENERATOR STORAGE The generator must be stored in a dry, well-ventilated area that is free from dust. - Page 13 CONTACTS Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska: DIMAX International...
