Summary of Contents for K&S BASIC KSB 40i S

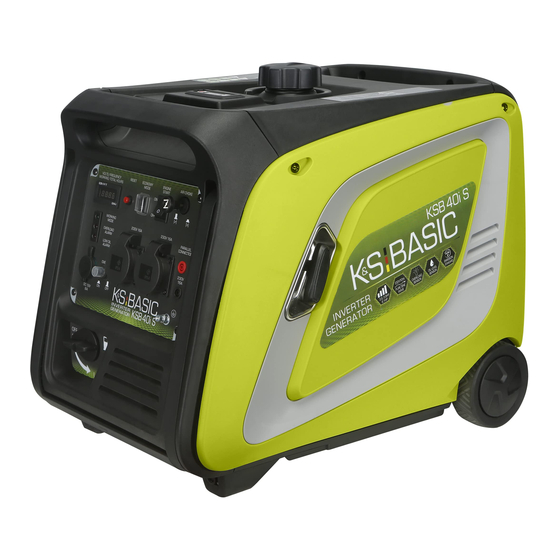

- Page 1 OWNER’S MANUAL Please, read this manual carefully before use! Inverter Generator KSB 40i S...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of K&S Basic products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsantleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of K&S Basic products: www.ks-power.de/en. -
Page 3: Main Overview
TN systems can be found on our website or requested from our technical support. Wires with damaged or spoiled insulation should be replaced. You should also replace worn, damaged or rusty contacts. Be careful. Do not operate the generator, if you are tired, under the influence of drugs or alcohol. -
Page 4: Specifications
The pictures in IMPORTANT! this manual are schematical and may not match the parameters of original product. SPECIFICATIONS Model KSB 40i S Voltage, V Max Power, kW Nominal Power, kW Frequency, Hz Current, A (max.) 17А... -
Page 5: Working With The Device
Make sure the control panel, louver and the inverter bottom side cooling well and without chips, mud and water come in. It IMPORTANT! may damage the engine, inverter or alternator if the cooling vent blocked. WORKING WITH THE DEVICE OIL LEVEL INDICATOR OIL LEVEL INDICATOR When the oil level falls below the level required for operation, the oil level indicator lights up, and then the engine stops automatically. -
Page 6: Starting To Work
Immediately wipe off spilled fuel with a clean, dry, soft cloth, since fuel may deteriorate painted surfaces or plastic parts. Use IMPORTANT! only unleaded gasoline. The use of leaded gasoline will cause severe damage to internal engine parts. Recommended fuel: Unleaded gasoline Fuel tank volume: see specifications table. -
Page 7: Engine Start
ENGINE START ENGINE START Useful tip: If the engine stalls or does not start, turn the engine switch to the “ON” position, and then pull the manual starter. IMPORTANT! If the oil level indicator flickers for several seconds, add oil and restart the engine. -
Page 8: Parallel Function
The ECON switch must be set back to “OFF” when using electrical devices requiring a high starting current, such as a compressor or IMPORTANT! submersible pump. PARALLEL FUNCTION PARALLEL FUNCTION The total output power of the generators can be increased by connecting two inverter generators together using the Parallel Unit from Könner &... -
Page 9: Recommended Oils
- If the generator often operates at high temperature or high load, the oil should be replaced every 25 operating hours. - If the engine often runs in dusty or other harsh conditions, clean the air filter every 10 operating hours. - If you missed the maintenance time, perform it as soon as possible to save the generator engine. -
Page 10: Cleaning The Filter
CLEANING THE FILTER: CLEANING THE FILTER: 1. Open the clips on the upper cap of the air filter. 2. Remove the sponge filtering element. 3. Remove all dirt deposits inside the hollow case of the air filter. 4. Thoroughly wash the filtering element in warmsoapy water. 5. -
Page 11: Generator Storage
GENERATOR STORAGE The generator must be stored in a dry, well-ventilated area that is free from dust. Keep away from children and animals. Generator should always remain ready for operation. Therefore in case of device malfunctions, they are to be repaired before IMPORTANT! dismounting the generator for storage. - Page 13 CONTACTS Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Kundendienst, technische Fragen und Unterstützung Fragen und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Garantie, Reparatur und Service Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska: DIMAX International...
