EtherWAN EMC400 Installation Manual

1

Unpacking

Open the carton and unpack the items. Your package
should include:
▪
One 4-Slot Din-Rail Media Converter Chassis
If any items are missing or damaged, notify your
EtherWAN representative.
2

Select a Location

The installation site should be free of extreme
temperatures, humidity, or excessive electromagnetic
interference. Specifically, the site should meet the
following requirements:
▪
The ambient temperature should be between 0
and 45 degrees Celsius (32 to 113 degrees
Fahrenheit).
▪
The relative humidity should be at least 5% and
less than 95 percent, non-condensing.
3

Connect Power

Power supply is via redundant 12VDC terminal block
power inputs. However, only one power supply is
needed to operate the chassis.
▪
Power supply input is 90~264VAC.
▪
EMC400 Chassis Input is 12VDC.
▪
Use minimum 16AWG cable for wiring.
▪
Power Consumption is 19W Max. @ full
installation, depending on installed devices.
W70G-EMC400XQ2 Page 1
EMC400 | 4-Slot Din-Rail Media Converter Chassis

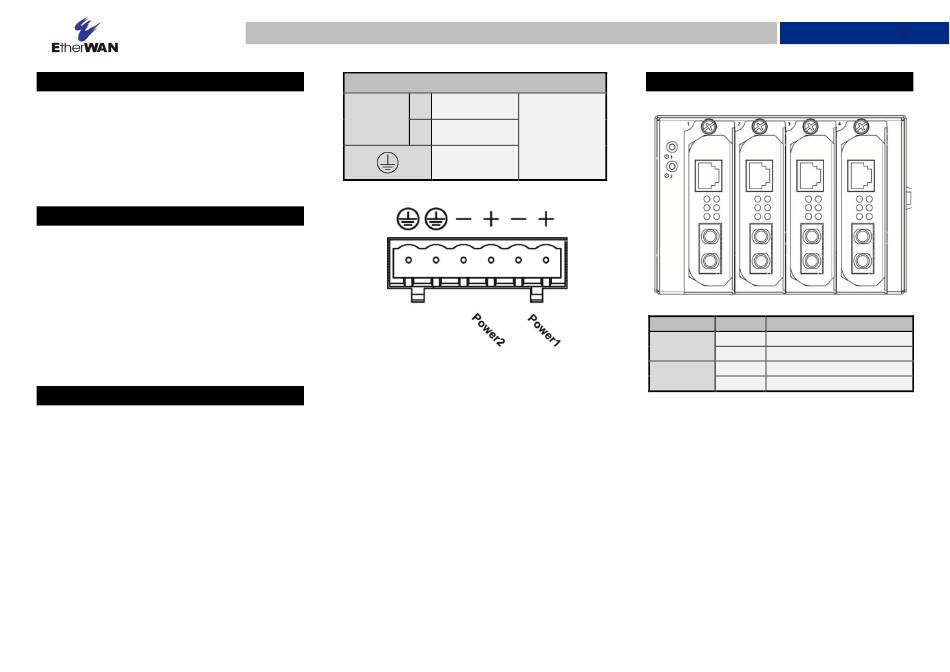

Power Input Assignment
+
Power 1, 2
-
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/27/2023
12VDC
Power Ground
Terminal Block
Earth Ground
Installation Guide
4

Status LEDs

LED State Indication
Steady PW1 on
PW1
Off PW1 off
Steady PW2 on
PW2
Off PW2 off
