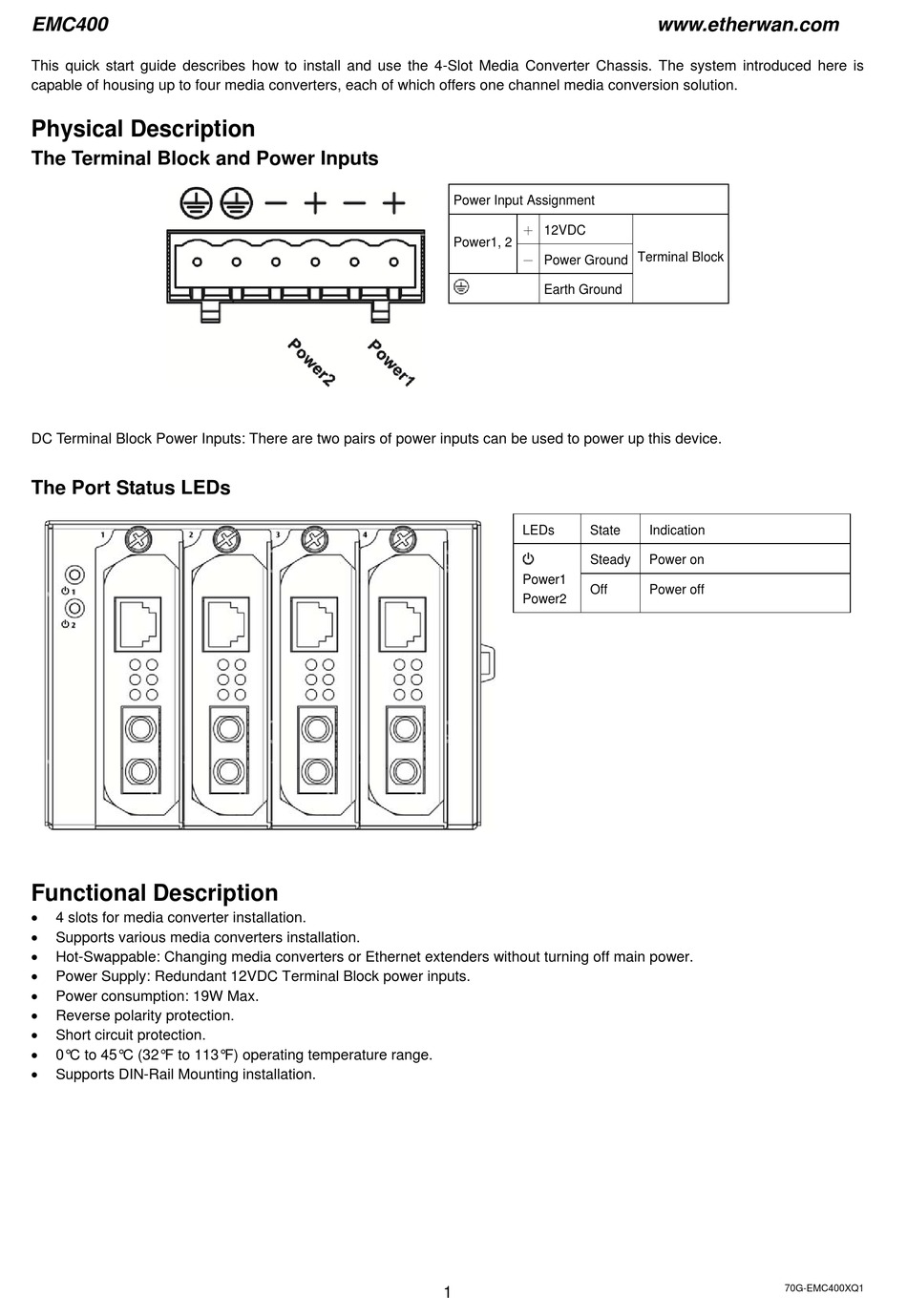

EtherWAN EMC400 Quick Start Manual

EMC400
This quick start guide describes how to install and use the 4-Slot Media Converter Chassis. The system introduced here is
capable of housing up to four media converters, each of which offers one channel media conversion solution.

Physical Description

The Terminal Block and Power Inputs

DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this device.

The Port Status LEDs

Functional Description


4 slots for media converter installation.

Supports various media converters installation.

Hot-Swappable: Changing media converters or Ethernet extenders without turning off main power.

Power Supply: Redundant 12VDC Terminal Block power inputs.

Power consumption: 19W Max.

Reverse polarity protection.

Short circuit protection.

0°C to 45°C (32°F to 113°F) operating temperature range.

Supports DIN-Rail Mounting installation.
Power Input Assignment
＋ 12VDC
Power1, 2
－ Power Ground
Earth Ground
LEDs State
Steady
Power1
Off
Power2
1
www.etherwan.com
Terminal Block
Indication
Power on
Power off
70G-EMC400XQ1
