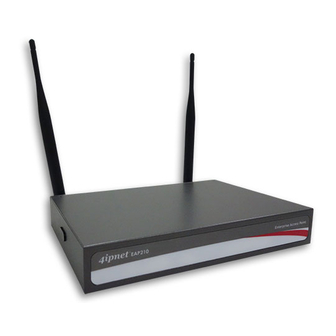

4IPNET EAP210 User Manual

Enterprise access point
Hide thumbs Also See for EAP210:

Advertisement

Quick Links

Enterprise Access Point
Indoor EAP Series/
Outdoor OWL Series

Advertisement

loading

Summary of Contents for 4IPNET EAP210

  • Page 1 Enterprise Access Point Indoor EAP Series/ Outdoor OWL Series...
  • Page 2 4IPNET, INC. Disclaimer 4IPNET, INC. does not assume any liability arising out the application or use of any products, or software described herein. Neither does it convey any license under its parent rights not the parent rights of others.
  • Page 3 Preface ............................5 Document Conventions ....................... 5 Package Content ........................... 6 System Overview and Getting Started ..................... 8 Introduction of 4ipnet Access Points ..................8 Hardware Description ......................... 9 Hardware Installation ....................... 17 Access Web Management Interface ..................19 Connect your AP to your Network ....................22 Adding Virtual Access Points ......................
  • Page 4 7.5.3 Associated Clients ......................95 7.5.4 WDS Link Status ......................96 7.5.5 Event Log ........................98 7.5.6 Monitor ........................... 99 CPE Mode Configuration (OWL530/EAP210) ................100 System ............................102 8.1.1 System Information ..................... 102 8.1.2 Operating Mode ......................104 8.1.3 Network Settings ......................105 8.1.4 Management ........................
  • Page 5 User’s Manual Enterprise Access Point ENGLISH 8.5.6 UPnP Status ......................... 131 Console Interface Configuration ....................132 Copyright © 4IPNET, INC.
  • Page 6 Indicates that clicking this button will save the changes you made, but you must reboot the system for the changes to take effect. Indicates that clicking this button will clear what you have set before the settings are applied. Copyright © 4IPNET, INC.
  • Page 7 User’s Manual Enterprise Access Point ENGLISH 1.3 Package Content The standard package of EAP210 includes:  4ipnet EAP210  Quick Installation Guide (QIG)  CD-ROM (with User’s Manual and QIG)  Console Cable  Power Adaptor (12V)  Detachable Antenna The standard package of EAP220 includes: ...
  • Page 8 User’s Manual Enterprise Access Point ENGLISH The standard package of EAP747 / EAP750 / EAP757 includes:  4ipnet EAP747 / EAP750 / EAP757  Quick Installation Guide (QIG)  CD-ROM (with User’s Manual and QIG)  Ethernet Cable  Power Adaptor (12V) (Optional) ...
  • Page 9 PoE LAN port is able to receive power from Power over Ethernet (PoE) sourcing devices. EAP210, EAP220 and EAP320’s metal housing is IP50 anti-dust compliant, which means that these Access Points are well suited to WLAN deployment in industrial environments. EAP747 / EAP750 / EAP757 are packed in fire-retardant wall/ceiling mountable plastic enclosures, and are built perfectly to blend in with your décor.
  • Page 10 User’s Manual Enterprise Access Point ENGLISH 2.2 Hardware Description This section depicts the hardware information including all panel description. EAP210 Front Panel EAP210 Front Panel Rear Panel EAP210 Rear Panel 1 Antenna Reverse SMA connectors for attaching antennas. Connector 2 12V Power Socket for the power adaptor.
  • Page 11 BLINKING SLOWLY SLOWLY BLINKING SLOWLY BLINKING RAPIDLY WES Negotiate (Green) (Green) WES Success LED (Green) ON LED (Green) ON WES Fail/Timeout LED (Green) OFF LED (Green) OFF 7 Console Port To access EAP210 via the console interface Copyright © 4IPNET, INC.
  • Page 12 User’s Manual Enterprise Access Point ENGLISH EAP220 Front Panel 1 2 3 EAP220 Front Panel Copyright © 4IPNET, INC.
  • Page 13 To access EAP220 via the console interface. LAN 1~4 Ports The ports for connections with LAN side devices. Uplink Port (PoE) The port for uplink connection to another gateway or device. PoE (802.3at) is supported. Power Socket for the power adaptor Copyright © 4IPNET, INC.
  • Page 14 Uplink Port (PoE) The port for uplink connection to another gateway or device. PoE is supported. LAN Ports 1~2 The ports for connections with LAN side devices. Console Port To access EAP320 via the console interface. Copyright © 4IPNET, INC.
  • Page 15 6 LAN 1 – 2 Ports Attach Ethernet cables here to connect to the wired local network. 7 Phone Jack (EAP747) A telephone can bypass to a connected phone line in the back of the AP when connected to the socket. Copyright © 4IPNET, INC.
  • Page 16 The valve allows ventilation to prevent moisture buildup within the OWL530. Ground Connector For connecting the ground wire. PoE Connector For connecting to the Power Sourcing Equipment (PSE). N-type Connector x 2 For connecting to an antenna Copyright © 4IPNET, INC.
  • Page 17 For connecting to the Power Sourcing Equipment (PSE). N-type Connector x 2 For connecting to an antenna (OWL610). N-type Connector x 4 For connecting to an antenna (OWL620: RF Card A x 2, RF Card B x 2). Copyright © 4IPNET, INC.
  • Page 18 Step 2. Connect the EAP210 / EAP220 / EAP 320 to your network device. Connect one end of the Ethernet cable to the Uplink port of EAP210 / EAP220 / EAP320 and the other end of the cable to a switch, a router, or a hub.
  • Page 19 Please use only the power adapter supplied with the package. Using a different power adapter may damage this system.  To verify the wired connection between the AP and your switch / router / hub, please also check the LED status indicator of the respective network devices. Copyright © 4IPNET, INC.
  • Page 20 Enterprise Access Point ENGLISH 2.4 Access Web Management Interface 4ipnet Access Points support web-based configuration. When hardware installation is complete, the AP can be configured through a PC by using a web browser. The default values of the AP’s LAN IP Address and Subnet Mask are: IP Address: 192.168.1.1...
