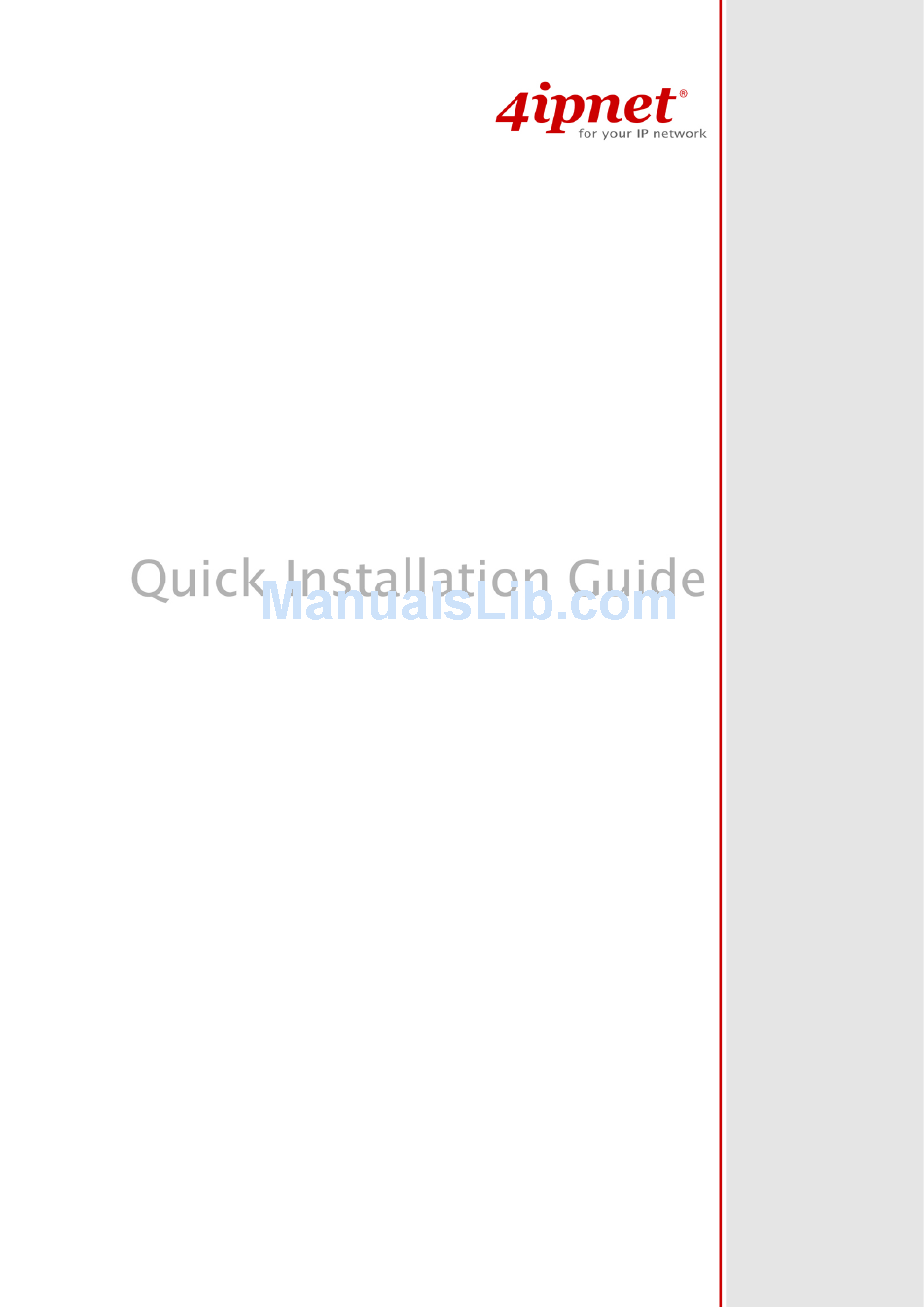

- Page 1 EAP747 V1.10 Enterprise Access Point...
-
Page 2: Copyright Notice
4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. -
Page 3: Fcc Caution
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Copyright © 4IPNET, INC. All rights reserved. - Page 4 This declaration is only valid for configurations (combinations of software, firmware, and hardware) provided and supported by 4ipnet Inc. The use of software or firmware not provided and supported by 4ipnet Inc. may result in the equipment no longer being compliant with the regulatory requirements.
-
Page 5: Package Contents
EAP747 Enterprise Access Point ENGLISH Preface Package Contents 4ipnet EAP747 is a high-end 802.11 a/b/g/n 1. 4ipnet EAP747 x 1 2.4GHz/5 GHz MIMO Access Point (AP) with the 2. Quick Installation Guide (QIG) x 1 best price/ performance for business and industrial 3. -
Page 6: System Overview
Internet. PoE is also supported LAN 1- 2 Ports Attach Ethernet cables here to connect to the wired local network. The telephone line can bypass if the EAP747 is placed on the socket. Phone Jet Copyright © 4IPNET, INC. All rights reserved. -
Page 7: Hardware Installation
2. Connect the EAP747 to your network device. Connect one end of the Ethernet cable to the Uplink port of EAP747 and the other end of the cable to a switch, a router, or a hub. EAP747 is then connected to your existing wired LAN network. -
Page 8: Getting Started
1. To access the Web Management Interface, connect the administrator PC to the LAN port of EAP747 via an Ethernet cable. Then, set a static IP address on the same subnet mask as EAP747 in TCP/IP of your PC, such as the following example: IP Address: 192.168.1.1... - Page 9 EAP747 Enterprise Access Point ENGLISH Administrator Login Page 4. After a successful login to EAP747, a System Overview page of the Web Management Interface will appear, as depicted below. The Web Management Interface - System Overview Page 5. To logout, simply click on the Logout button at the upper right hand corner of the interface to return to the Administrator Login Page.
-
Page 10: Common Settings
Enter the old password and then a new password with a length of up to 32 characters, and retype it in the Re-enter New Password field. Click SAVE to save the changes. Copyright © 4IPNET, INC. All rights reserved. P/N: 11020120510... - Page 11 802.11g+802.11n for the band and 6 for the channel. Admin should be aware of Dynamic Frequency Selection (DFS) mandated on some channels of the 5GHz band. When an EAP747 detects interference, this mechanism will limit the ability to broadcast the SSID on one of the channels listed below:...
- Page 12 ENGLISH Step 3. Configure VAP (Virtual Access Point) Profile Settings VAP Configuration Page (VAP-1 shown) EAP747 supports up to 8 virtual APs (VAPs). Configure VAP profile settings ： (a) Select the VAP Configuration tab to configure the settings of the desired VAP.
- Page 13 ENGLISH Step 4. Configure WDS (Wireless Distribution System) Settings (Optional) To extend the wireless coverage, EAP747 supports up to 4 WDS links for connecting wirelessly to other WDS-capable APs (peer APs). By default, all WDS profiles are disabled. Click on the Wireless button on the main menu.
