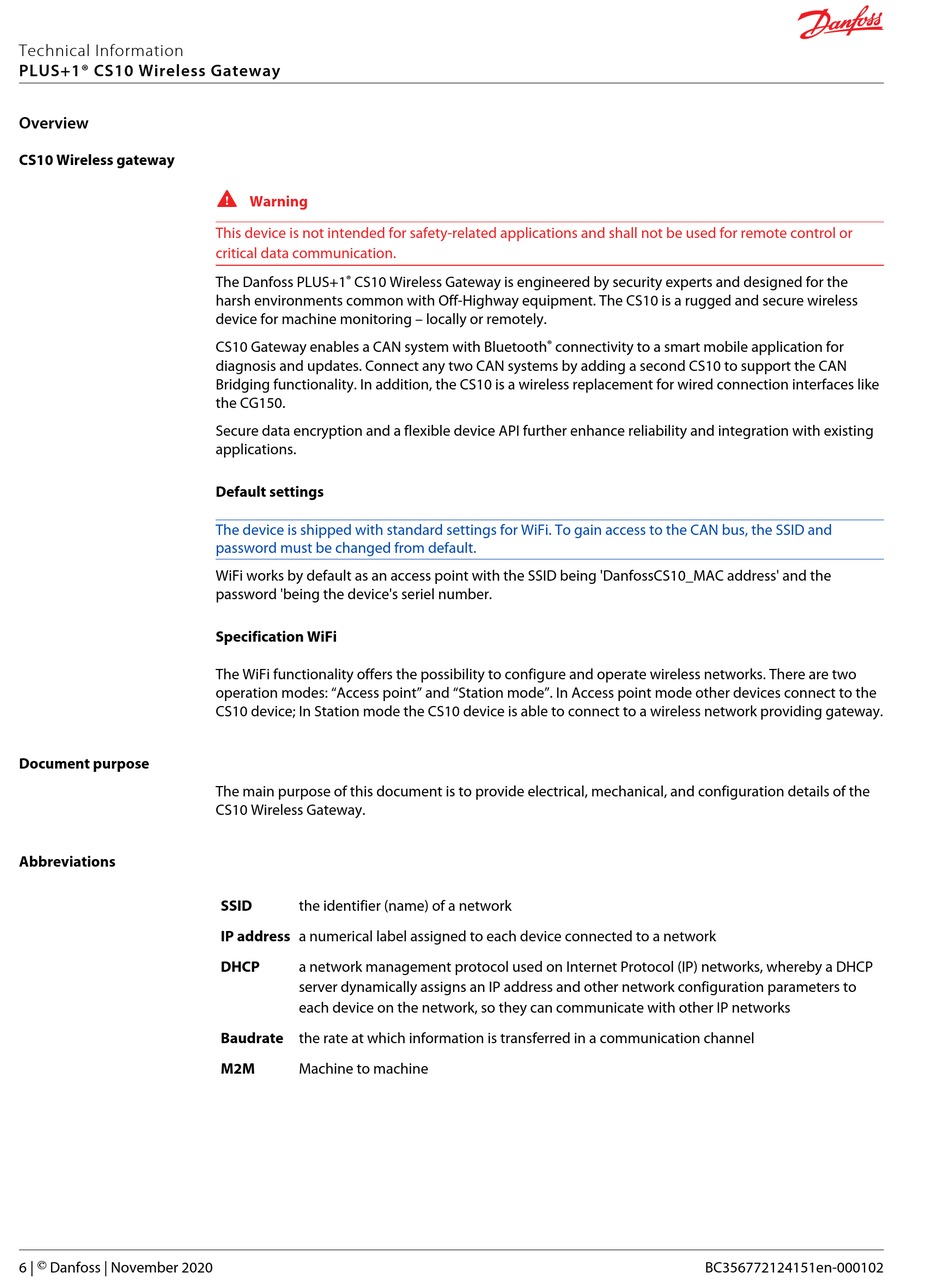

Technical Information
PLUS+1® CS10 Wireless Gateway

Overview

CS10 Wireless gateway

Document purpose

Abbreviations

6 |
©
Danfoss | November 2020
W
Warning
This device is not intended for safety-related applications and shall not be used for remote control or
critical data communication.
The Danfoss PLUS+1
®
CS10 Wireless Gateway is engineered by security experts and designed for the
harsh environments common with Off-Highway equipment. The CS10 is a rugged and secure wireless
device for machine monitoring – locally or remotely.
CS10 Gateway enables a CAN system with Bluetooth
diagnosis and updates. Connect any two CAN systems by adding a second CS10 to support the CAN
Bridging functionality. In addition, the CS10 is a wireless replacement for wired connection interfaces like
the CG150.
Secure data encryption and a flexible device API further enhance reliability and integration with existing
applications.

Default settings

The device is shipped with standard settings for WiFi. To gain access to the CAN bus, the SSID and
password must be changed from default.
WiFi works by default as an access point with the SSID being 'DanfossCS10_MAC address' and the
password 'being the device's seriel number.

Specification WiFi

The WiFi functionality offers the possibility to configure and operate wireless networks. There are two
operation modes: "Access point" and "Station mode". In Access point mode other devices connect to the
CS10 device; In Station mode the CS10 device is able to connect to a wireless network providing gateway.
The main purpose of this document is to provide electrical, mechanical, and configuration details of the
CS10 Wireless Gateway.
SSID
the identifier (name) of a network
IP address a numerical label assigned to each device connected to a network
DHCP
a network management protocol used on Internet Protocol (IP) networks, whereby a DHCP
server dynamically assigns an IP address and other network configuration parameters to
each device on the network, so they can communicate with other IP networks
Baudrate the rate at which information is transferred in a communication channel
M2M
Machine to machine
®
connectivity to a smart mobile application for
BC356772124151en-000102
