Access Point - Danfoss CS10 Technical Information

Technical Information
PLUS+1® CS10 Wireless Gateway
Configuration

Access point

© Danfoss | November 2020

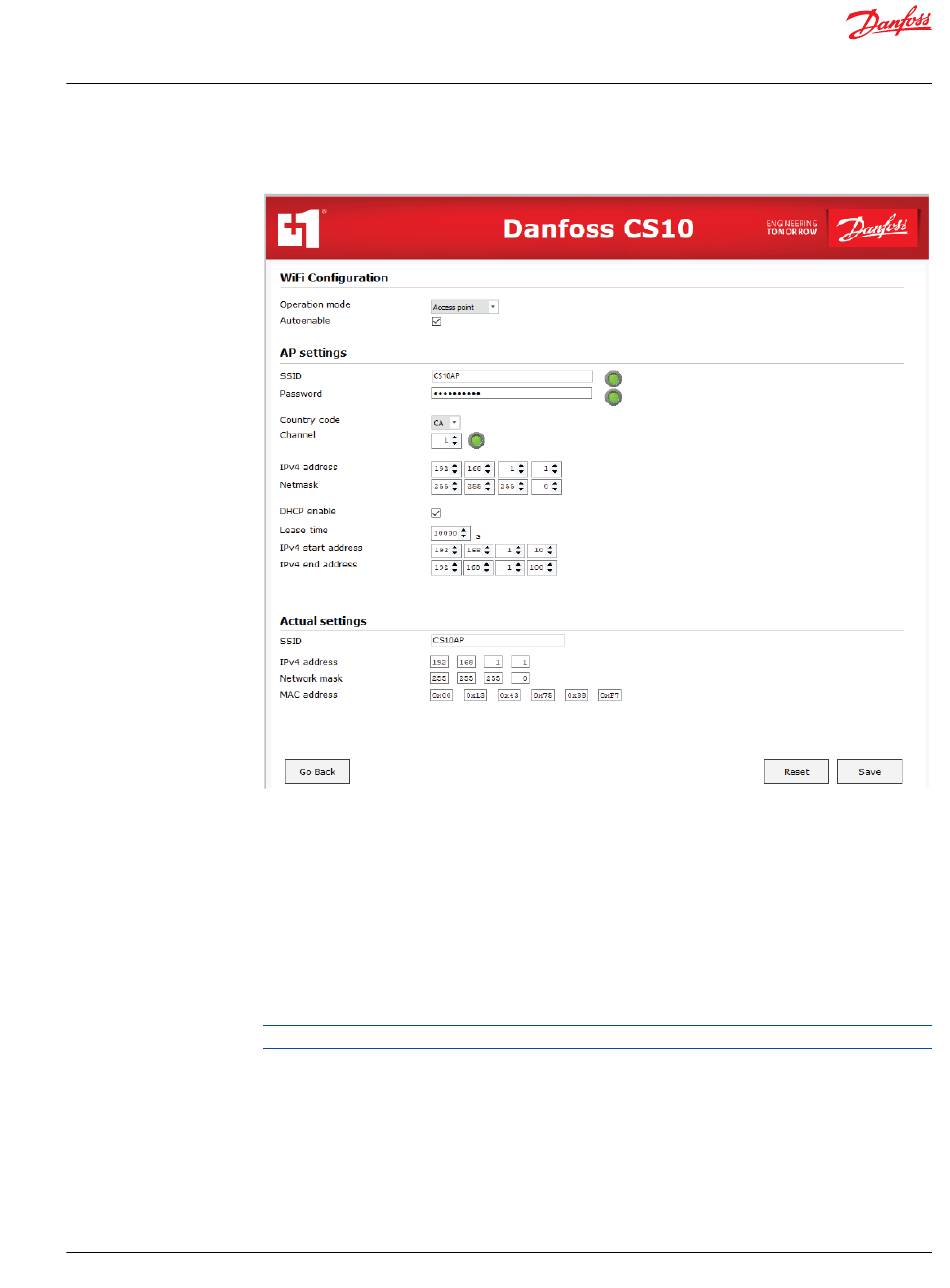

1. Go to the WiFi Configuration page and set "Access point" as Operation mode
2. If Autoenable is set the automatically enable itself when the device is powered
3. Select SSID and Password for identifying the network
4. Select the appropriate Channel
5. Set the address of the access point to be created in in IPv4 address and Netmask
6. If DHCP enable is set all clients that connect as DHCP client automatically retrieve an address from
the range defined in the fields IPv4 start address and IPv4 end address for the time defined in the
field Lease time
7. Using the Save button downloads the data to the device. The actual settings are then shown in the
section Actual settings
Using the Reset button applies a set of default parameter.
BC356772124151en-000102 | 11
