Rascal Rhythm SL
Powerchair
Owner's Manual & Service Record
Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL
Telephone: 01460 258100 www.electricmobility.co.uk
READ
all
safety
warnings,
instructions,
illustrations
specifications provided with
this product BEFORE use.
E. and 0.E. issue 1 04/2021
&
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rascal Rhythm SL
Summary of Contents for Rascal Rhythm SL
- Page 1 Rascal Rhythm SL Powerchair Owner’s Manual & Service Record READ safety warnings, instructions, illustrations & specifications provided with this product BEFORE use. Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and 0.E. issue 1 04/2021...
- Page 2 We suggest that you keep this Owner’s Manual in a Ignoring them may endanger you or others. safe place as it contains essential safety, operation, and maintenance information for the Rascal Rhythm SL Powerchair. Rascal Rhythm SL Powerchairs Owner’s Manual and Service Record...
-
Page 3: Table Of Contents
Contents Dealer Information Features & Layout Safety Information Intended Use of the Powerchair Safety Information Controls – Joystick Controller Controls – Seat Lift Seat Position – Front-Wheel Drive or Rear-Wheel Drive Freewheel Device Brakes Armrest Adjustment Seat Back Folding & Adjustment Headrest Adjustment Transferring In &... -
Page 4: Dealer Information

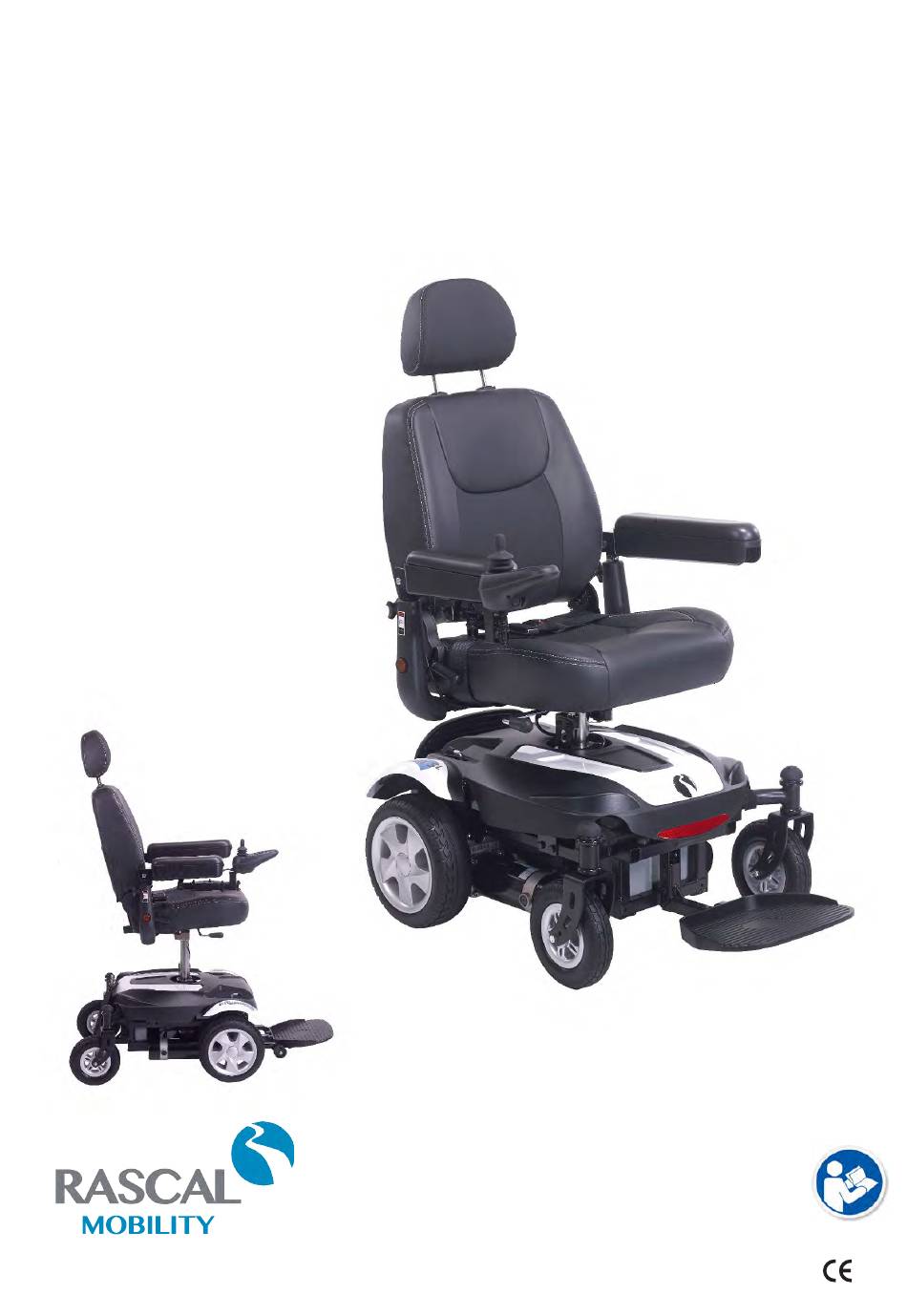

Photo shows the Rascal Rhythm SL Powerchair. See the Technical Specification for full details 1. Joystick Controller Charging Point Front Footrest Fold-up / Adjustable armrests 5. Solid Castor Tyres 6. Solid Tyres Freewheel Levers Rear Footrest Headrest Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 5: Safety Information
Powerchair Read this manual thoroughly before driving or operating the Powerchair. The Rascal Rhythm SL Powerchair is designed for use by adults with a disability (up to the maximum If you have any doubt about the content of this recommended... -
Page 6: Safety Information
DO NOT operate the more hazardous. Powerchair with depleted batteries. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... - Page 7 Warning: Roads. In the United Kingdom the do not switch the power off when moving. The Rascal Rhythm SL is not designed or approved for Powerchair may stop very suddenly. Release the use on public roads, apart from crossing roads at forward / reverse control and the Powerchair will designated places.
-
Page 8: Controls - Joystick Controller
2. Ignition On / Off Button: Switch the power on and off using the power button. Remember to switch off when not in use. Do not leave the ignition on when not in use, especially when charging the vehicle. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 9: Controls - Seat Lift
Pg. 10 for the seat in its lowest position. If at any time you wish to halt the raising or lowering of the seat, simply allow the joystick to return to its neutral position. Rascal Rhythm features additional functionality and controls to allow the user to elevate their sitting position using the Joystick Controller. -
Page 10: Seat Position - Front-Wheel Drive Or Rear-Wheel Drive
4. FREEWHEEL MODE IS NOT ENGAGED. 5. Ensure Seat Back is in upright position (see Seat Back Adjustment section). 6. Both Footrests to be in the vertical position (see Fig. 6) Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 11: Freewheel Device
Freewheel Device When the Rhythm SL is switched off with DRIVE selected on both DRIVE / FREEWHEEL Levers then the Powerchair brakes are automatically engaged. This is called “Failsafe Braking”. Also, if the batteries are fully discharged then the brakes REAR-WHEEL DRIVE MODE will still function. -
Page 12: Armrest Adjustment
Warning! Do not use the armrest as a support when getting in and out of the Powerchair. Armrests are not designed to fully support user weight. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 13: Transferring In & Out Of The Powerchair
Transferring In & Out of 7. Armrests are down and secured. 8. Exiting the Chair. Position feet either side of the the Powerchair raised footplate. Use the armrest to take user weight and carefully attempt to stand and do not put undue If you feel at all uncertain about getting in or out of weight on the Armrests the Powerchair seek assistance with an attendant. -
Page 14: Driving The Powerchair
Be aware that when setting off if the exceed the maximum range in the Technical castors are not straight, the initial movement Specification section and that the battery is fully could be sideways. charged. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 15: Driving The Powerchair - Hazards
Turning: Always slow down before a turn; turning Driving the Powerchair - at speed can cause the Powerchair to topple. Look Hazards in the direction you are travelling – If there is a blind corner sound the horn. Warning! Turning Circle: So you can judge the turning Before driving the Powerchair you circle, practice manoeuvring the Powerchair. -
Page 16: Transporting The Powerchair
3. Check Powerchair for any sign of damage. - Remove the charger mains plug from the wall socket having first switched the mains socket off if a switch is provided. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... - Page 17 Warning! Never disconnect a battery / charger while the charger is connected to the mains. Warning! If one or both batteries are damaged or frozen they could heat up when charging and, in an extreme case, explode. Warning! Always charge in a dry, well ventilated area.
-
Page 18: User Maintenance
The allowable temperature range to store the mobility Powerchair is -40˚C(-40˚F) up to 65˚C (149˚F). The allowable temperature range to store batteries is -15˚C (-5˚F) up to 40˚C (104˚F). Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 19: Servicing & Maintenance
Servicing & Maintenance 1. The Rascal Rhythm SL Powerchair is designed minimal maintenance. recommended that the Powerchair is serviced at least once a year, by an approved Electric Mobility Dealer. If the Powerchair is used constantly then we recommend a twice yearly maintenance. -
Page 20: Diagnostic Table
A communication fault is indicated. Make sure that the joystick cable is securely connected and not damaged. An Actuator trip is indicated. If more than one actuator is fitted, check which actuator is not working correctly. Check the actuator wiring. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 21: Troubleshooting Guide
Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone the dealer. Symptom Solution • Powerchair does not move. • Batteries flat - check level. when power is switched •... -
Page 22: Additional Safety Information
Powerchair and the physical and may adversely affect stability. capabilities. Please remember that the Rascal Rhythm SL Powerchair is heavy and will require a Floor Area : Do not use the footrests to carry items large car, MPV or van to enable transportation. -
Page 23: Engineer's Checklist
How long should I keep my Powerchair before I • All assembly spigots and hooks for wear or change it? damage. We estimate a service life of five years for this • Seat mounting for wear or damage. product (excluding batteries and tyres) provided it is used in strict accordance with the intended use •... -
Page 24: Additional Information
If the Powerchair starts to operate by itself switch it off and report this to the dealer. The operation of any Powerchair may affect sensitive electronic circuits such as alarm systems or automatic doors in shops. Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 25: Technical Specifications
Technical Specification - Rascal Rhythm SL Powerchair Wheelchair type – Rear Wheel Drive Class A, B or C EN 12184 - Class B Wheelchair type – Front Wheel Drive Class A, B or C EN 12184 - Class A Department of Transport - RWD... -
Page 26: Service Log
Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service Rascal Rhythm SL Powerchair Owner’s Manual & Service Record... -
Page 27: Notes
Notes... - Page 28 Rascal Rhythm SL Powerchair Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E.and 0.E. Issue 1 04/2021...
