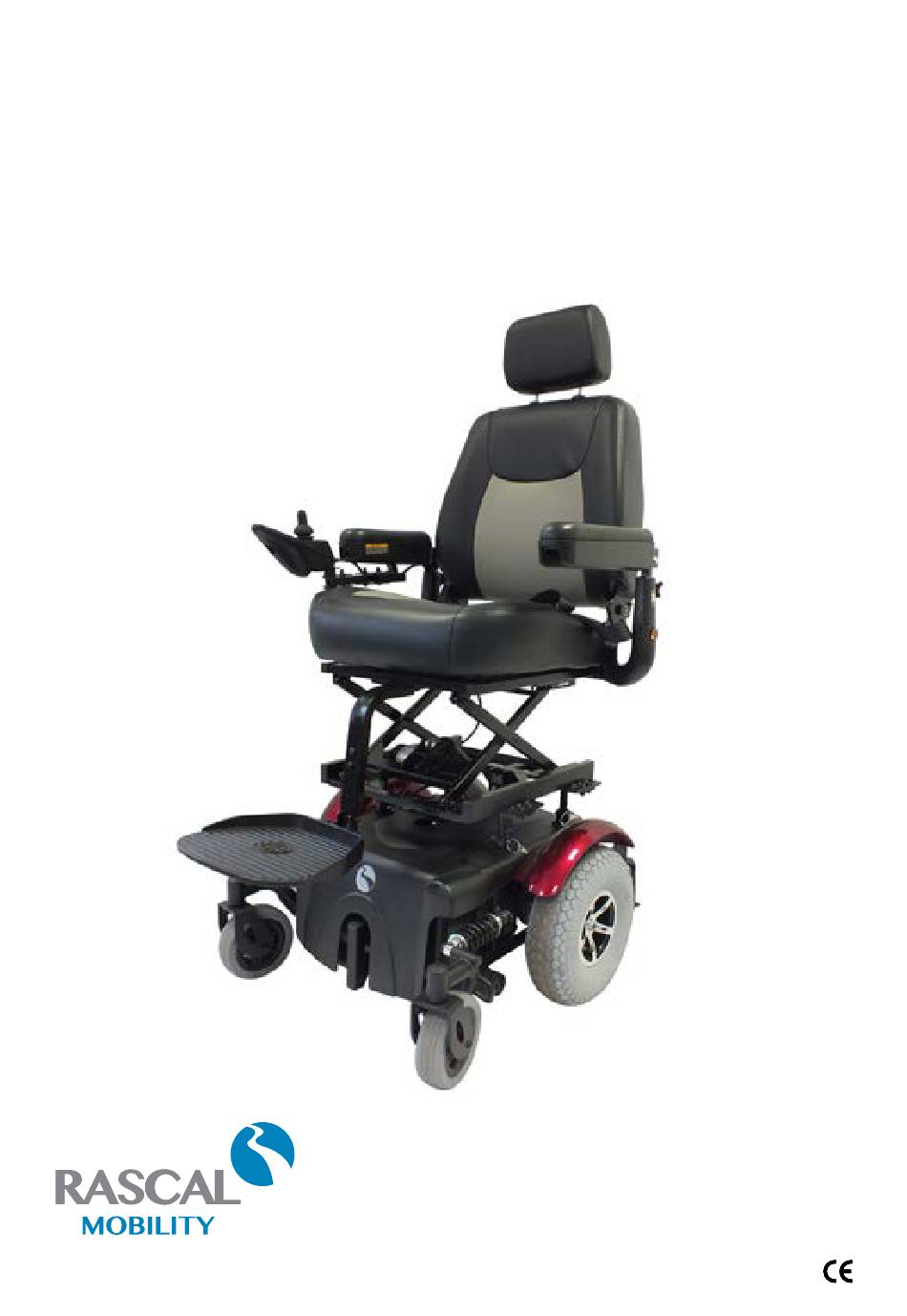

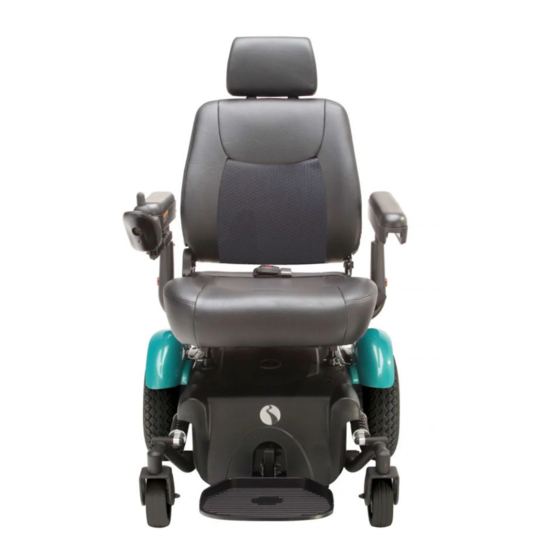

- Page 1 Rascal Powerchair Models P327 P327 XL / P327 SL Owners Manual & Service Record Model P327 SL Electric Mobility Euro Limited, Canal Way, Ilminster , Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and 0.E. Issue 3: 07/2017 WHITE...
- Page 2 Please take time to read and understand them. If you think that your Powerchair may be damaged, Ignoring them may endanger you or others. do not drive it but contact your dealer for advice. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record...
-
Page 3: Table Of Contents
Dealer information Features and layout Safety information Intended use Safety information Controls - joystick assembly Controls - P327 SL - Seat Lift version only Controls - driving controls & accelerator Freewheel device Brakes Armrest adjustment Joystick controller adjustment Seat back folding / adjustment... -
Page 4: Dealer Information
1. Joystick controller 5. Adjustable armrest 2. Charging point 6. Freewheel levers 3. Footrest 7. Pneumatic tyres on drive wheels 4. Solid tyres on all four castors Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 5: Safety Information
If you have any doubt about the content of this The P327 Powerchair range is designed for use by manual phone your dealer to resolve the problem. adults with a disability (up to the maximum recom- Please read this manual, and ensure your mended weight –... -
Page 6: Safety Information
Warning: Battery Charge Before driving off always check the battery indicator. If you are in any doubt, ensure all the batteries are fully charged before starting on a journey. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... - Page 7 Warning: Castoring Be aware that, if you set off Warning: Escalators Never drive this when the castors are not straight, the initial move- Powerchair onto an escalator as this could result in ment could be sideways. severe injury. Warning: Power Unless there is an emergency, Warning: Driving in poor visibility Powerchairs do not switch the power off when moving.
-
Page 8: Controls - Joystick Assembly
5 and 6. The more lights that show, the higher the maximum speed. It is advisable to set the maximum Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 9: Controls - P327 Sl - Seat Lift Version Only
Controls - Seat Lift P327 SL only Introduction The seat lift version of this Powerchair (P327SL) offers an elevating seat function (Fig.2) to allow the user to reach higher when seated. This configuration of the Powerchair reduces the maximum user weight to 400 lbs (181.4kg / 28.5 stones). -
Page 10: Controls - Driving Controls/Accelerator
If the joystick is operated when the power button is pressed, the lamps will flash slowly. By centring the joystick this indication will stop and the joystick will operate normally. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 11: Freewheel Device
Freewheel Device Brakes When the vehicle is switched off the brakes are There are 2 braking systems. The first works with automatically engaged. This is called “Failsafe the joystick. When the joystick is released the Braking”. Also, if the batteries are flat, the brakes Powerchair will automatically brake. -
Page 12: Joystick Controller Adjustment
In addition the joystick controller can be moved for- ward and back loosening the grub screw with the allen key provided, and setting to your preferred Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 13: Seat Height Adjustment
Seat Height Adjustment You are advised to ask your dealer to set the seat height in the most comfortable driving position Seat Removal • Disconnect the cable from the joystick by pinching and pulling the grey grip. Remove the cable completely from the seat frame (Fig.8). •... -
Page 14: Footrest Adjustment
15. Switch off when not in use. To conserve your batteries and prevent the vehicle accidentally moving, always turn off the power when your Powerchair is not in use. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 15: Driving Your Vehicle - Hazards
Driving Your Vehicle - Hills & Slopes: Going Down Hill. Lean back in the seat when going down, Turn the speed con- Hazards trol to low. If you are not comfortable about tackling a gradient, consider an alternative route. Before driving the Powerchair you should be aware that, under certain circumstances it could become Try to avoid crossing slopes –... -
Page 16: Transporting Your Powerchair
Powerchair to go anywhere. If there is any malfunction, check that the joystick connection has been correctly put together and locked. You are now ready to drive the Powerchair away. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 17: Battery Care
Connection Instructions Notice 1. Place you machine in an area that is dry and Return your unserviceable batteries to your well ventilated. Make sure a power point is nearby. supplier or ensure they are disposed of in 2. Check the vehicle is switched off. accordance with the environmental regulations 3. -
Page 18: Servicing & Maintenance
• Are there noises or rattles that were not there before? children. They could be harmed. • Are there any signs of damage, corrosion or cracking? • Does the seat-lift function smoothly? Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 19: Engineer's Checklist For Powerchairs
Engineer’s Checklist for • All operational controls work correctly • Battery condition and charger operation Powerchairs • Tighten all nuts & bolts • Operation of the joystick in forward, reverse, Obtain all comments from the customer on the turning, and stopping smoothly condition and serviceability of the Powerchair and •... -
Page 20: Troubleshooting Guide
Remember correct information will get the problem fixed quicker and may save you money. Phone the dealer and explain exactly what the problem is, recounting as much detail as possible including the indicated faults. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 21: Diagnostic Table
Diagnostic Table Your Powerchair controller provides diagnostic information via a flashing spanner icon at the base of the controller. The number of flashes correspond to the fault as below:- Flash Code Description Action User Fault Possible stall timeout or user error. Release the joystick to neutral and try again. -
Page 22: Frequently Asked Questions
• Faulty or old batteries or a faulty charger Important Rule: Always use the correct charger with the correct batteries and ensure all batteries are charged before you start out. Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 23: Technical Information Regarding Emi
Technical Information Regarding EMI Important Technical Information regarding Electromagnetic Interference (EMI) The intensity of interference from electromagnetic energy is measured in volts per meter (v/m), which refers to the strength of the electrical source (volt- age) as it relates to the distance away from the object being considered (in meters). -
Page 24: Technical Specification - P327
The maximum climbing ability facing upwards degrees of slope 6˚ Ground clearance mm (in) 50 (2.0) Maximum obstacle climbing ability mm (in) 50 (2.0) Maximum safe descendable kerb height mm (in) 50 (2.0) Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 25: Technical Specification - P327 Xl
Technical Specification - Rascal Powerchair P327 XL Powerchair type Class Class A, B or C Class B Department of Transport Class Class 1 2 or 3 Class 2 Overall dimensions fully assembled length x width x height mm (in) 1120 (44.09) x 690 (27) x 1190 (46.85) -
Page 26: Technical Specification - P327 Sl
The maximum climbing ability facing upwards degrees of slope 6˚ Ground clearance mm (in) 50 (2.0) Maximum obstacle climbing ability mm (in) 50 (2.0) Maximum safe descendable kerb height mm (in) 50 (2.0) Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record... -
Page 27: Brochure Request
Brochure Request Do you have a friend or colleague that would be interested in an Electric Mobility product? If so cut out this coupon and send it to the address shown on the back of the manual. My Dealer’s Company name is: Please can I have a free no-obligation home demonstration. - Page 28 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
-
Page 29: Service Log
Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service... - Page 30 Notes Rascal P327 / P327XL / P327SL Powerchair Owner’s Manual & Service Record...
- Page 31 Notes...
- Page 32 Rascal Powerchair Models P327 P327 XL P327 SL Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E.and 0.E. Issue 3: 07/2017...
