BINMASTER BINCLOUD Quick Setup Manual

A1

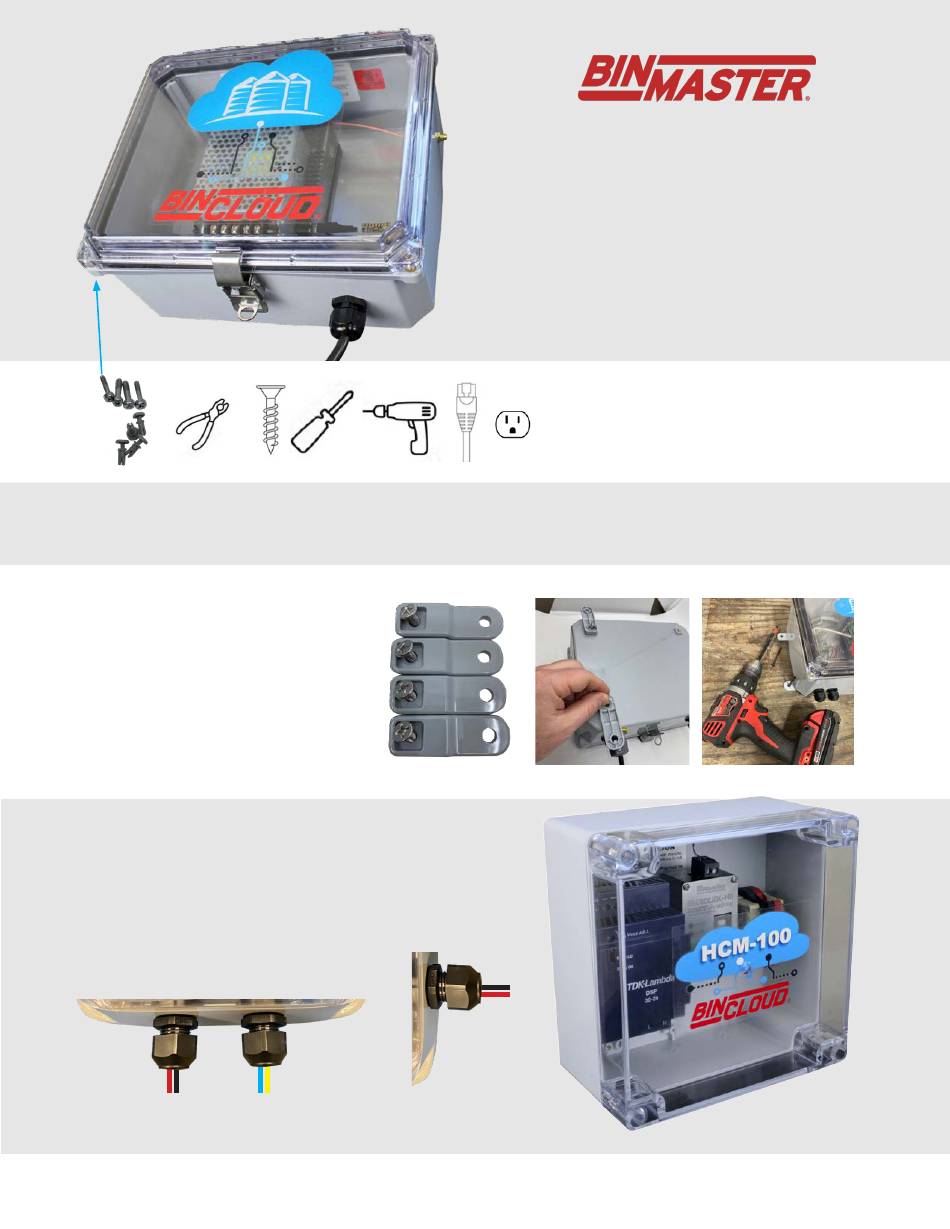

STEP 1
Choose a wall location to mount your Gateway. Make sure there is access to a 120VAC outlet and, preferably, an ethernet connection.
STEP 2
Attach mount brackets to the enclosure
with the included screws. Brackets fit on
protruding screwholes on the back of
the enclosure. Then, use drywall screws
and attach unit to the wall.
STEP 3
Install 3 cable glands using a drill and bit on the HCM-100.
-One cable gland is for 110VAC
-One cable gland is for BinCloud Gateway Channel 1(A&B) to HCM-100
-One cable gland for HART communication
and negative wires.
positive
B
going to NCR sensors
wires
(Cable glands not included)
QUICK SETUP GUIDE
BCGW.XXXXE-HCM

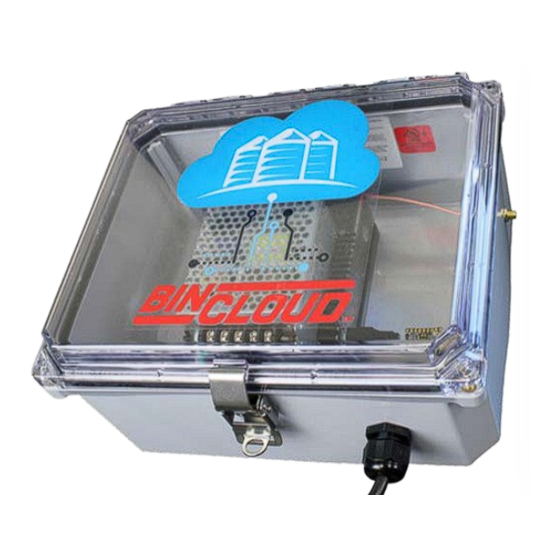

BINCLOUD GATEWAY
Tools needed: drill and bit, phillips screwdriver, drywall/
wood screws, ethernet cable, pliers. Screws and plas-
tic plugs, A1, can be used to secure the top cover.
RX-A&B B
