A1
STEP 1
Choose a wall location to mount your Gateway. Make sure there is access to a 120VAC outlet and, preferably, an ethernet connection.
STEP 2
Attach mount brackets to the enclosure
with the included screws. Brackets fit on
protruding screwholes on the back of
the enclosure. Then, use drywall screws
and attach unit to the wall.
STEP 3 - BinCloud Gateway to Modbus NCR radar
Gateway has two RS485 connections, Channel 1
and 2. Remove side cover of NCR to reveal Mod-
bus connections.
●
Connect Gateway Channel 1(A) to NCR-D0(+)
● Connect Channel 1(B) to NCR-D0(-)
●
●
Daisy chain other NCR radars as shown
Need cable? Ask for DNet Cable
398-0599 from your BinMaster
representative.
GND
GND
Power 24VDC
GND
QUICK SETUP GUIDE
BCGW.XXXXE-NCR-DAI
BINCLOUD GATEWAY
Tools needed: drill and bit, phillips screwdriver, drywall/
wood screws, ethernet cable, pliers. Screws and plas-
tic plugs, A1, can be used to secure the top cover.

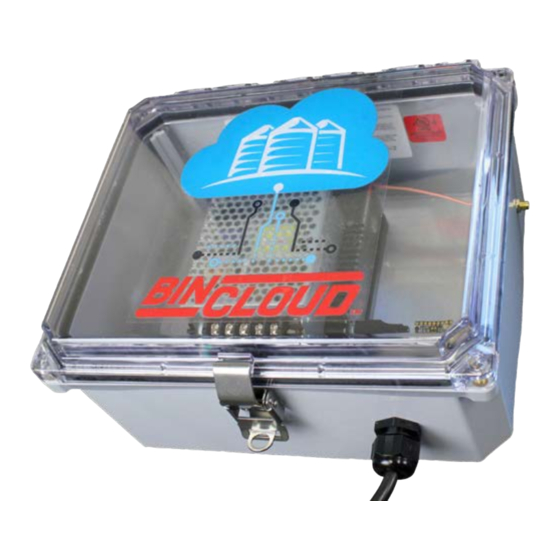

BinCloud Gateway
Board inside Gateway unit.
Advertisement
Related Manuals for BINMASTER BINCLOUD BCGW E-NCR-DAI Series
Summary of Contents for BINMASTER BINCLOUD BCGW E-NCR-DAI Series
- Page 1 ● Connect Gateway Channel 1(A) to NCR-D0(+) ● Connect Channel 1(B) to NCR-D0(-) ● ● Daisy chain other NCR radars as shown Need cable? Ask for DNet Cable 398-0599 from your BinMaster representative. Power 24VDC Board inside Gateway unit.
- Page 2 - Connect the Gateway ethernet plug to a network port, router or switch. - Plug SmartBob and Gateway units into the 120VAC outlet. - Wait 25 minutes and call BinMaster at 1-800-278-4241 to confirm the internet connection. BinMaster will create a custom cloud page using measurements from your bins, tanks, silos, etc.
