A1
STEP 1
Choose a wall location to mount your Gateway. Make sure there is access to a 120VAC outlet and, preferably, an ethernet connection.
STEP 2
Attach mount brackets to the enclosure
with the included screws. Brackets fit on
protruding screwholes on the back of
the enclosure. Then, use drywall screws
and attach unit to the wall.
STEP 3
Attach the antenna as shown. This Gateway has been setup with multiNetwork cell connection that will
automatically connect when powered. If cell service is unavailable it is possible to connect the Gateway
ethernet plug to a network router or switch.
QUICK SETUP GUIDE

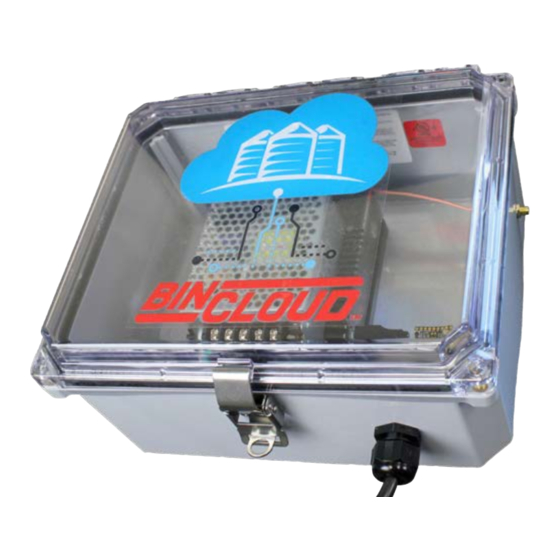

BCGW.100.XXXXC-NCR
BINCLOUD GATEWAY
Tools needed: drill and bit, phillips screwdriver, drywall/
wood screws, ethernet cable, pliers. Screws and plas-
tic plugs, A1, can be used to secure the top cover.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BINCLOUD BCGW.100 C-NCR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for BINMASTER BINCLOUD BCGW.100 C-NCR Series

  • Page 1 QUICK SETUP GUIDE BCGW.100.XXXXC-NCR BINCLOUD GATEWAY Tools needed: drill and bit, phillips screwdriver, drywall/ wood screws, ethernet cable, pliers. Screws and plas- tic plugs, A1, can be used to secure the top cover. STEP 1 Choose a wall location to mount your Gateway. Make sure there is access to a 120VAC outlet and, preferably, an ethernet connection. STEP 2 Attach mount brackets to the enclosure with the included screws.
  • Page 2 - Plug Gateway unit into the 120VAC outlet. - Wait 25 minutes and call BinMaster at 1-800-278-4241 to confirm the internet connection. BinMaster will create a custom cloud page using measurements from your bins, tanks, silos, etc. Check the worksheet on following pages so you can prepare for this conversation.
