BINMASTER BINCLOUD BCGW.100 LLE Series Quick Setup Manual

A1
STEP 1

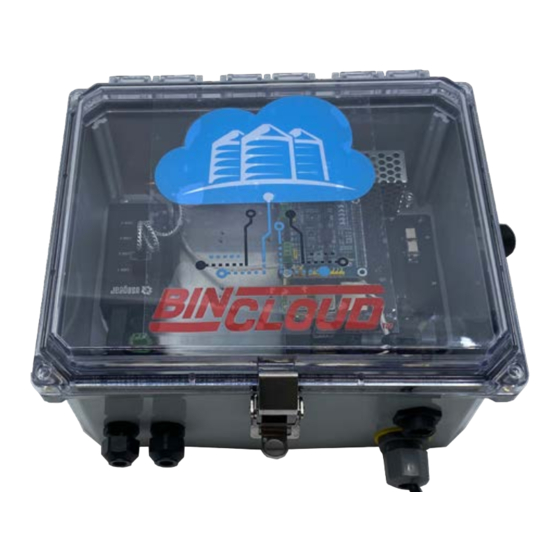

Choose a location to mount your Gateway and the antenna. For the
Gateway (pictured above), make sure there is access to a 120VAC
outlet and, preferably, an ethernet connection. The antenna should be
in a good line of site to sensors within 20 feet of the Gateway location.
STEP 2
Attach mount brackets to the enclosure
with the included screws. Brackets fit on
protruding screwholes on the back of
the enclosure. Then, use drywall screws
and attach unit to the wall location.
STEP 3
Assemble the antenna with mounting hardware.
A.
B.
x.
y.
washer-locking washer-nut-bolt
QUICK SETUP GUIDE
BCGW.100.XXLLE
BINCLOUD GATEWAY
Tools needed: drill and bit, phillips screwdriver, drywall/
wood screws, ethernet cable, pliers. Screws and plas-
tic plugs, A1, can be used to secure the top cover.
control
room
1
power
ethernet
A. Attach the curved mount pipe to
its base with the smooth bolt on top
and two small bolts and nuts on the
swivel bottom.
B. Using U-bolts as shown attach
antenna mount to mount pipe (x).
Then insert small screws on top of
mount to hold antenna in place (y).
C. Mount the antenna outside, in a
location (Step 1) within a good line-
of-site to your sensor(s) . Remember
the cable between the Gateway unit
and the antenna should be less than
20 feet or ask your BinMaster rep for
an extension.
4
3
laser
sensor
2
1. Gateway
2. Wire through wall to antenna
3. Antenna mounted outside with line-of-sight to sensor
4. Laser sensor mounted on vessel
C.
cable
