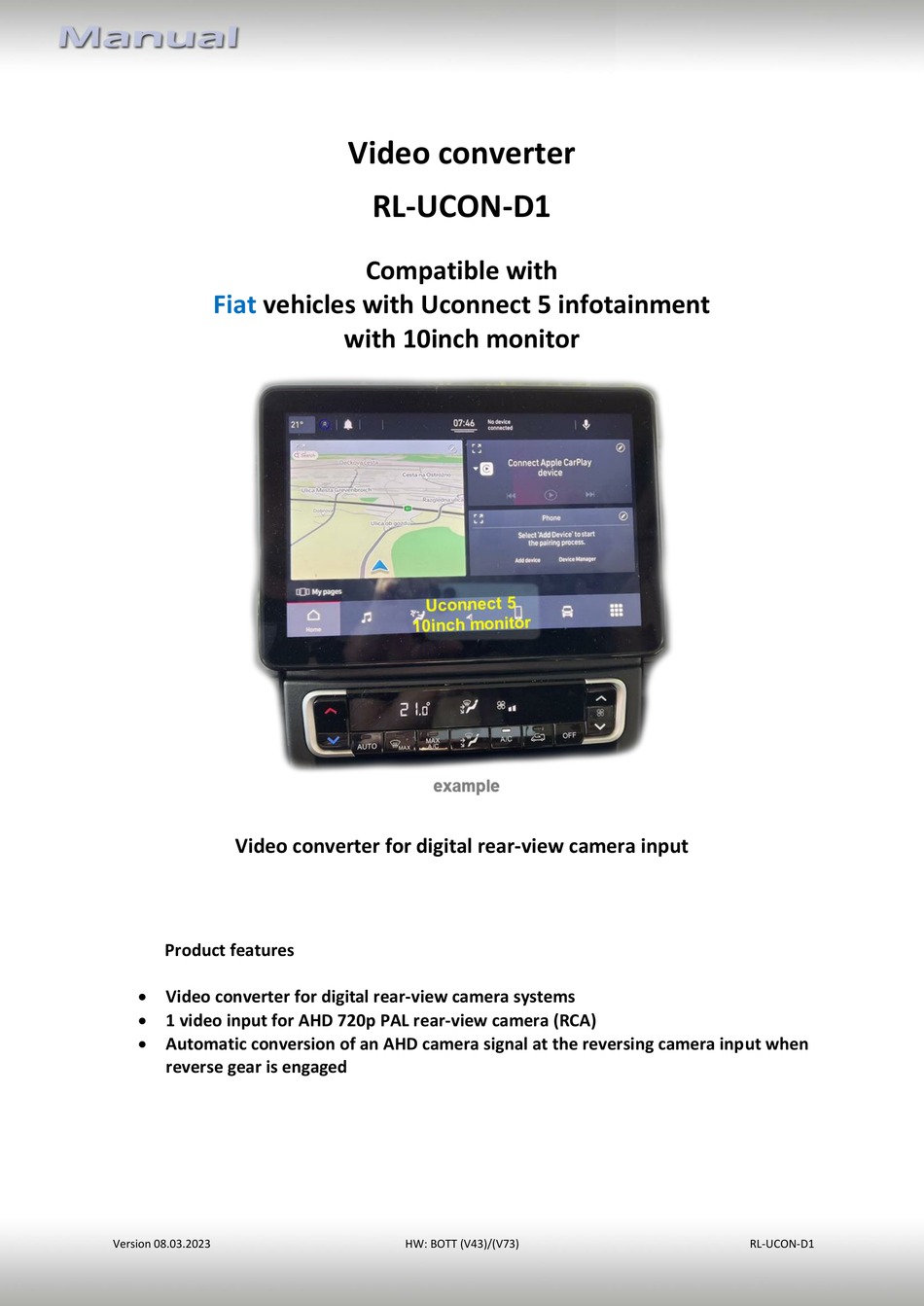

Video converter
RL-UCON-D1
Compatible with
Fiat

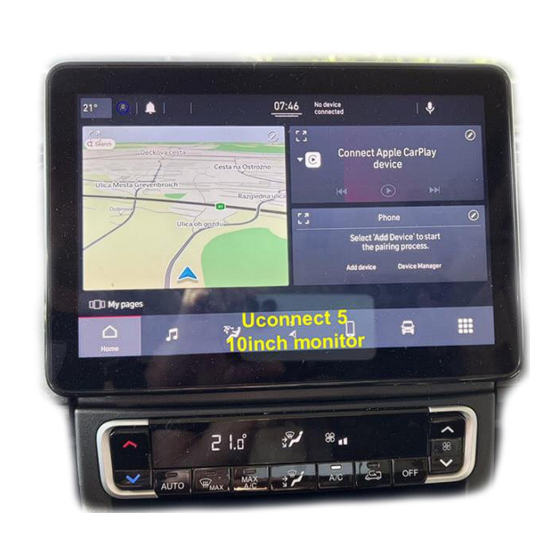

vehicles with Uconnect 5 infotainment
with 10inch monitor
Video converter for digital rear-view camera input
Product features
Video converter for digital rear-view camera systems
1 video input for AHD 720p PAL rear-view camera (RCA)
Automatic conversion of an AHD camera signal at the reversing camera input when
reverse gear is engaged
Version 08.03.2023
HW: BOTT (V43)/(V73)
RL-UCON-D1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for NavLinkz RL-UCON-D1
Summary of Contents for NavLinkz RL-UCON-D1
- Page 1 Video converter RL-UCON-D1 Compatible with Fiat vehicles with Uconnect 5 infotainment with 10inch monitor Video converter for digital rear-view camera input Product features Video converter for digital rear-view camera systems 1 video input for AHD 720p PAL rear-view camera (RCA) ...
-
Page 2: Table Of Contents
1.4. Settings - 8 Dip switches (black) 2. Installation 2.1. Place of installation 2.2. Connection schema 2.3. Connection – power and picture signal cable 2.4. Connection – AHD Kamera 3. Specifications 4. Technical support Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Compatible only with 720p AHD camera with PAL signal. A prerequisite for the converter function is a factory precoding which can be recognised by the blue screen on the display when reverse gear is engaged (see picture). Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 6: Settings - 8 Dip Switches (Black)
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of connection The video interface has to be connected at a suitable location behind the vehicle`s head-unit. Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 7: Connection Schema
2.2. Connection schema Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 8: Connection - Power And Picture Signal Cable
Connect the female10pin connector of the 10pin power cable to the male 10pin connector of the video interface. Connect the yellow wire of the 10pin power cable to +12V ACC (terminal 15). Connect the black wire of the 10-pin power cable to negative ground. Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 9: Connection - Ahd Kamera
Connect the video RCA of the AHD camera to the 20pin interface cable’s female RCA connector „720P Camera-IN“. Connect the power cable of the AHD camera to the red-coloured "ACC 5V power output" cable of the 20-pin interface cable. Version 08.03.2023 HW: BOTT (V43)/(V73) RL-UCON-D1... -
Page 10: Specifications
107 x 95 x 24 mm (W x H x D) 4. Technical support Please note that direct technical support is only available for products purchased directly from Navlinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
