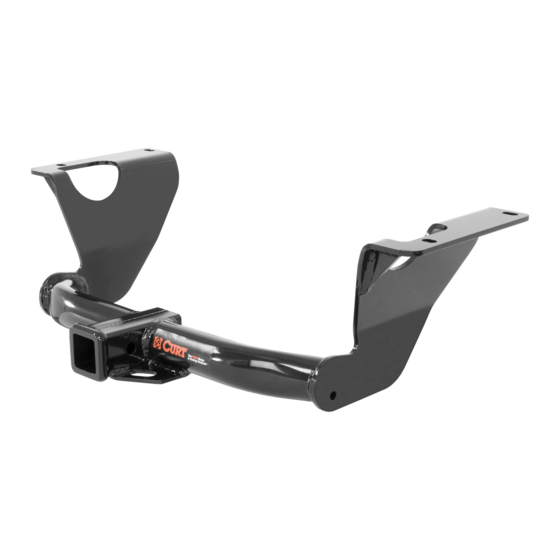

13390 SUBARU OUTBACK WAGON AND LEGACY SEDAN
11/9/2009
GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH:
***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.***
WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY AUXILIARY STABILIZING STRAPS.
** FAILURE TO PROPERLY SUPPORT NON-TRAILER LOADS WILL VOID PRODUCT WARRANTY**
HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT
Parts List
ITEM QTY PART NUMBER
1 4 1/2-13 x 1 1/2 CARRIAGE BOLT
2 4 CM-SP6 .250 x 1.00 x 3.00" SQ. HOLE SPACER
3 4 HFN 1213 HEX FLANGE NUT
4 2 1_2 FISHWIRE 1/2" FISHWIRE
TOOLS REQUIRED
10 AND 19mm SOCKETS
8" EXTENSION
RATCHET
TORQUE WRENCH
DRILL AND 17/32" BIT
ROTARY TOOL / CARBIDE BIT
TIN SNIPS / FILE
DRIVER SIDE
FRAME RAIL
DRIVER SIDE PLATE
MUFFLER
HITCH WEIGHT: 36 LBS.
INSTALL TIME
45
PROFESSIONAL: MINUTES
NOVICE (DIY): 90 MINUTES
INSTALL NOTES:
- DRILLING REQUIRED
- FISHWIRE HARDWARE
PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE THAT ALL FASTENERS
ARE TIGHT AND THAT ALL STRUCTURAL COMPONENTS ARE SOUND.
Curt Manufacturing Inc., warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,
Curt Manufacturing Inc., may repair or replace the product, at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of
this product voids the warranty. Curt Manufacturing Inc.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or
consequential loss or damage.

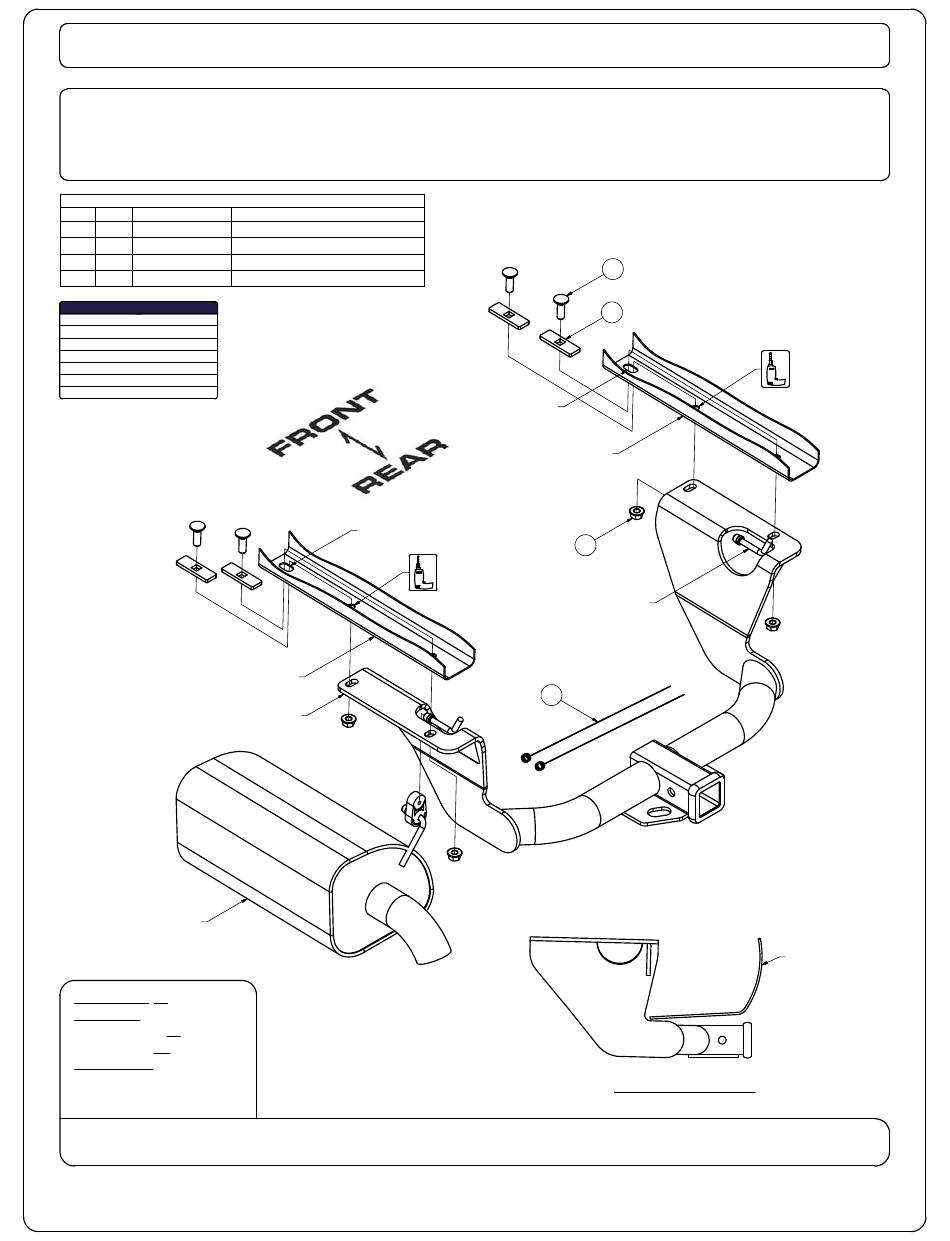

DESCRIPTION
ENLARGE HOLE
DRILL HOLE
3,500 LBS. TRAILER WEIGHT &
1-800-798-0813
1
2
ENLARGE HOLE
PASSENGER SIDE
FRAME RAIL
3
EXHAUST HANGER
(BOTH SIDES)
4
INSTALLED HITCH POSITION
PAGE 1 of 2
350 LBS. TONGUE WEIGHT.
DRILL HOLE
BUMPER COVER
