USB-3102 User's Guide

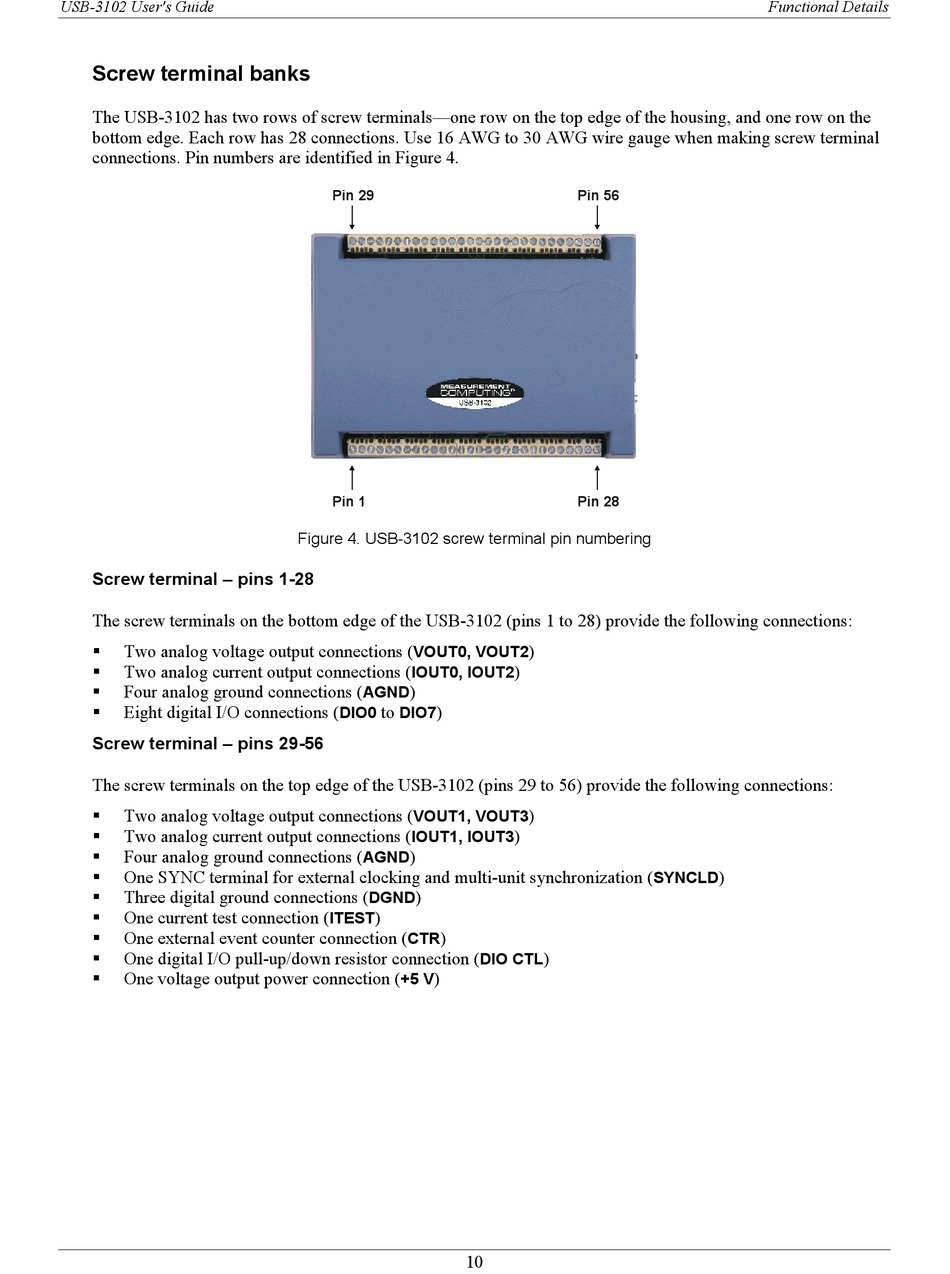

Screw terminal banks

The USB-3102 has two rows of screw terminals—one row on the top edge of the housing, and one row on the
bottom edge. Each row has 28 connections. Use 16 AWG to 30 AWG wire gauge when making screw terminal
connections. Pin numbers are identified in Figure 4.
Screw terminal – pins 1-28
The screw terminals on the bottom edge of the USB-3102 (pins 1 to 28) provide the following connections:
Two analog voltage output connections (

Two analog current output connections (

Four analog ground connections (

Eight digital I/O connections (

Screw terminal – pins 29-56
The screw terminals on the top edge of the USB-3102 (pins 29 to 56) provide the following connections:
Two analog voltage output connections (

Two analog current output connections (

Four analog ground connections (

One SYNC terminal for external clocking and multi-unit synchronization (

Three digital ground connections (

One current test connection (

One external event counter connection (

One digital I/O pull-up/down resistor connection (

One voltage output power connection (

Pin 29
Pin 1
Figure 4. USB-3102 screw terminal pin numbering
VOUT0, VOUT2
IOUT0, IOUT2
)
AGND
to )
DIO0 DIO7
VOUT1, VOUT3
IOUT1, IOUT3
)
AGND
)
DGND
)
ITEST
)
CTR
)
+5 V
10
Pin 56
Pin 28
)
)
)
)
SYNCLD
)
DIO CTL
