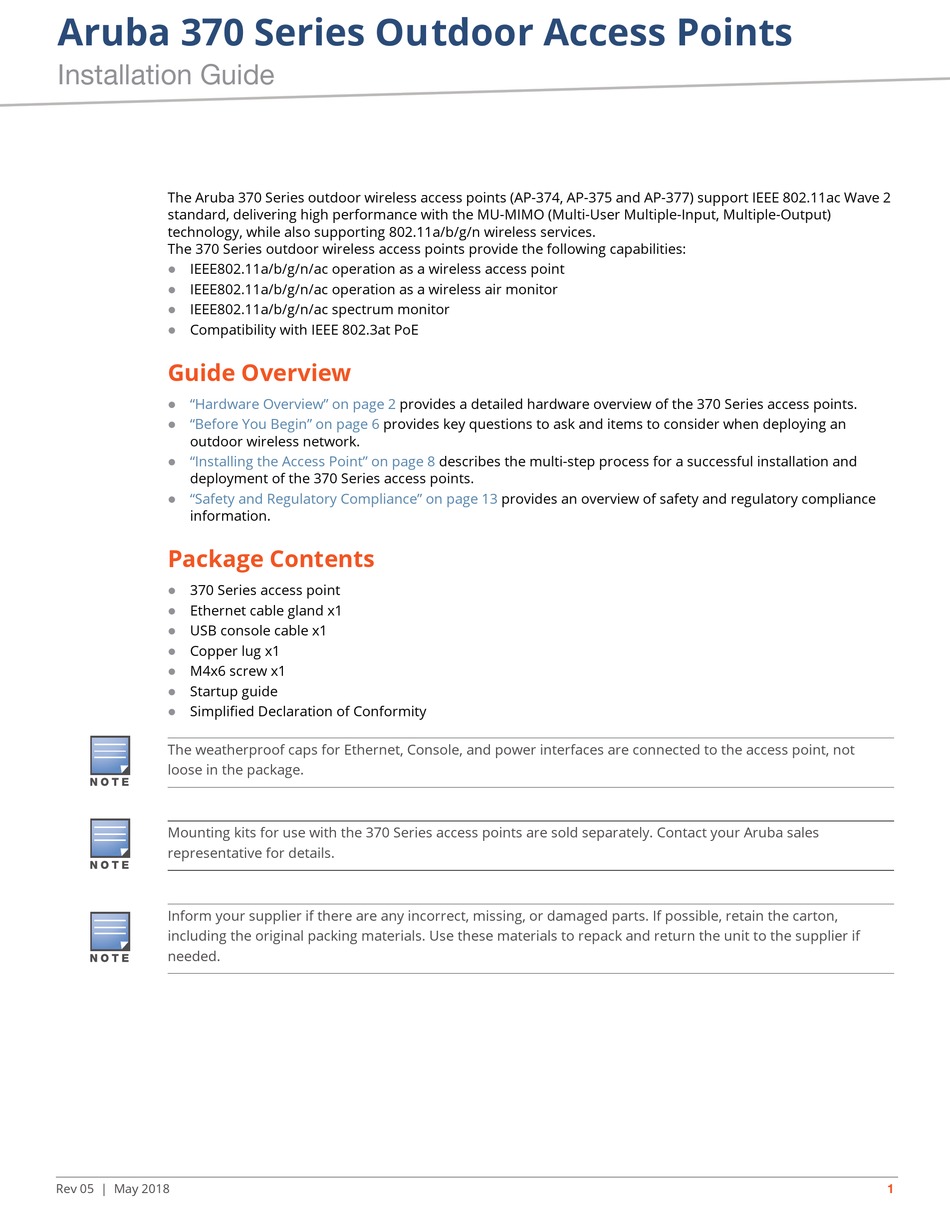

Aruba 370 Series Outdoor Access Points

Installation Guide

The Aruba 370 Series outdoor wireless access points (AP-374, AP-375 and AP-377) support IEEE 802.11ac Wave 2
standard, delivering high performance with the MU-MIMO (Multi-User Multiple-Input, Multiple-Output)
technology, while also supporting 802.11a/b/g/n wireless services.
The 370 Series outdoor wireless access points provide the following capabilities:
IEEE802.11a/b/g/n/ac operation as a wireless access point

IEEE802.11a/b/g/n/ac operation as a wireless air monitor

IEEE802.11a/b/g/n/ac spectrum monitor

Compatibility with IEEE 802.3at PoE

Guide Overview
"Hardware Overview" on page 2

"Before You Begin" on page 6

outdoor wireless network.
"Installing the Access Point" on page 8

deployment of the 370 Series access points.
"Safety and Regulatory Compliance" on page 13

information.

Package Contents

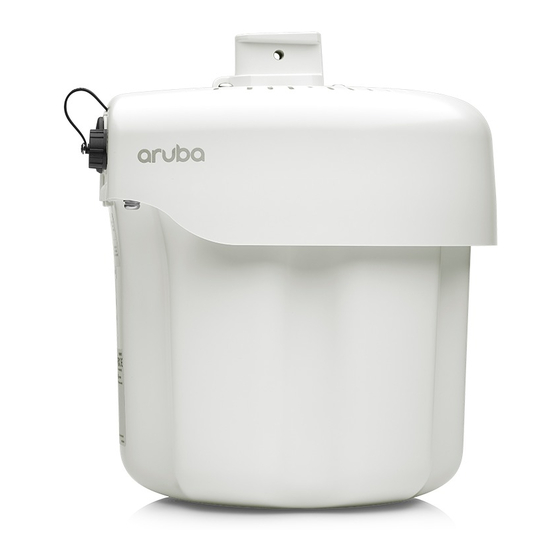

370 Series access point

Ethernet cable gland x1

USB console cable x1

Copper lug x1

M4x6 screw x1

Startup guide

Simplified Declaration of Conformity

The weatherproof caps for Ethernet, Console, and power interfaces are connected to the access point, not
loose in the package.
Mounting kits for use with the 370 Series access points are sold separately. Contact your Aruba sales
representative for details.
Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,
including the original packing materials. Use these materials to repack and return the unit to the supplier if
needed.
Rev 05 | May 2018
provides a detailed hardware overview of the 370 Series access points.
provides key questions to ask and items to consider when deploying an
describes the multi-step process for a successful installation and
provides an overview of safety and regulatory compliance
