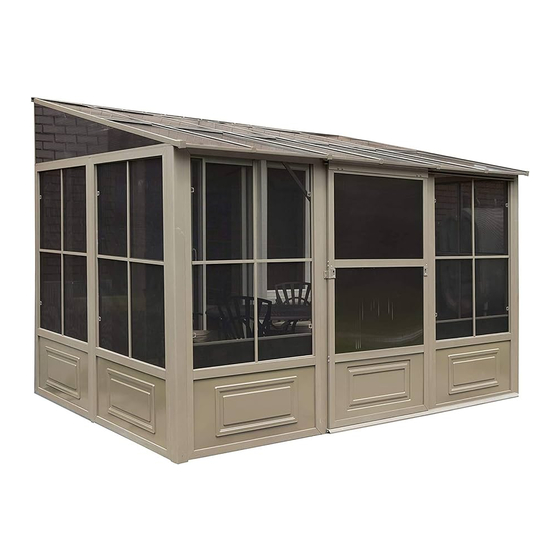

W1209½MR-12
SAND
W1209½MR-32
SLATE
ASSEMBLY INSTRUCTIONS
10 X 12 SOLARIUM
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
FOR FUTURE REFERENCE,
TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT.
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96" clearance at the wall
APPROX.
Base Dimensions 144''x 118'',
Largest Dimensions 144''x122'' (see pg.22)
ZZZ-187.W1209MR.0629-21.GP.EN.doc
WEB VERSION
1
Advertisement
Related Manuals for Gazebo penguin W12091/2MR-12
Summary of Contents for Gazebo penguin W12091/2MR-12
- Page 1 W1209½MR-12 SAND W1209½MR-32 SLATE ASSEMBLY INSTRUCTIONS 10 X 12 SOLARIUM DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED FOR FUTURE REFERENCE, TAKE PICTURES OF ALL SIX SIDES OF EACH OF THE BOXES UPON RECEIPT. PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly by two or three adults is suggested.
- Page 2 Some jurisdictions may require permits for, or otherwise regulate, installation and use. For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):...
- Page 3 Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information on how to evacuate the water. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
- Page 4 SOLARIUM W1209 ½ MR SAND (see page 7 for Slate parts) PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-054-12 19-062-12 ROOF PANEL ROOF PANEL (47.1 x 43.7) (45.6” x 43.7”) 10-496-12 12-141-12 REGULAR HALF FRAME FRAME A-3 1/2 19-063-12 19-064-12 ROOF PANEL...
- Page 5 PACKED DRAWING PACKED DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 11-545-12 19-076-12 TOP DOOR REGULAR RAIL ROOF BAR (124”) (89.7”) 11-546-12 BOTTOM 08-187 DOOR RAIL WASHER Gg-3 (88.5”) 08-138-12 12-161 PLASTIC STOPPER Hh-3 12-142-12 08-193-12 LEFT SIDE PLASTIC PLUG RECEIVER Ii-3 12-143-12 10-502-12...
- Page 6 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 13-045-12 19-049-12 SELF-TAPPING RIGHT GABLE SCREW JOINT PQ-3 19-078 19-077 LEFT FRONT LEFT BACK GABLE GABLE PANEL PANEL Rr-3 Ss-3 15-125-12 19-079 MOUNTING RIGHT BACK BRACKET GABLE PANEL Tt-3 (ASSEMBLED ON ROOF BAR G) 19-050-12 19-080...
- Page 7 SOLARIUM W1209 ½ MR SLATE PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-054-32 19-062-32 ROOF PANEL ROOF PANEL (47.1 x 43.7) (45.6” x 43.7”) 10-496-32 12-141-32 REGULAR HALF FRAME FRAME A-3 ½ 19-063-32 19-064-32 ROOF PANEL ROOF PANEL (47.1 x 43.7) (45.6”...
- Page 8 PACKED PACKED DRAWING DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 11-545-32 19-076-32 TOP DOOR REGULAR RAIL ROOF BAR (124”) (89.7”) 11-546-32 BOTTOM 08-187 DOOR RAIL WASHER Gg-3 (88.5”) 08-138-32 12-161-32 PLASTIC STOPPER Hh-3 12-142-32 08-193-32 LEFT SIDE PLASTIC PLUG RECEIVER Ii-3 12-143-32 10-502-32...
- Page 9 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 13-045-32 19-049-32 SELF-TAPPING RIGHT GABLE SCREW JOINT PQ-3 19-078 19-077 LEFT FRONT LEFT BACK GABLE GABLE PANEL PANEL Rr-3 Ss-3 15-125-32 19-079 MOUNTING RIGHT BACK BRACKET GABLE PANEL Tt-3 (ASSEMBLED ON ROOF BAR G) 19-050-32 19-080...
- Page 10 ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 11 TOOLS REQUIRED: Screwdriver (Philips #2) Knife File (smooth) Needle-nosed pliers Rubber mallet Step ladder (minmum 6' in height) Spatula Power drill Tube of silicon Drill bit 5/16" cement (according to surface) ...
- Page 12 ASSEMBLE PIECES STEP #3 BEFORE SCREWING Assemble ML-3, O-3, N-3, and MR-3 as shown THEM TO THE WALL and position evenly above vertical guides, at 96’’ from the ground. Secure wall track and vertical tracks to brick or cement wall by drilling through the aluminum, at intervals of 16”(minimum) and using screws Xx-3.
- Page 13 STEP #5 Set left rafter F over last bracket then secure it with Bb-3 screw and continue screwing through joint K-3 with the Bb-3 screw. Secure to Q-3 bracket with self-tapping screw (PQ-3). Repeat on right side with rafter F1. STEP #6 Set G rafters over the bracket with Bb-3 screws at the top and two (2)
- Page 14 STEP #7 DOOR UNIT(S) MUST BE ASSEMBLED INSIDE OF SOLARIUM. Slide upper door track F-3 into wheels of sliding door C-3. Slide lower door track G-3 and make sure inserts are close enough to the frame to attach. Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3.
- Page 15 STEP #8 Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly.
- Page 16 STEP #9 Slide roof panels (A, A1) onto lower track of rafters (F, F1, G). ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 17 STEP #10 Slide roof panels (B, B1) onto middle track of rafters (F, F1, G). ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 18 STEP #11 Set roof panels (C, C1) onto rafters (F, F1, G). Bb-3 ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 19 STEP #12 Close front end of rafters using brackets (M) with 2 bolts (Bb-3) for each. Slide back down middle and lower roof panels (A, A1, B, B1) STEP #13 Install crossbeams (L1, L2) under rafters (F, F1, G). Use Cc-3 screws + Hh-3 nuts for the splice, then secure to the rafter with Cc-3 screws. Make sure it’s tight. Cc-3-1 ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 20 STEP #14 Anchor the solarium to the deck or floor securely using screws and shields supplied. See diagram below. SPECIAL NOTES To remove a screen, remove the two (2) screws at the top of the frame then pull sideways to the opposite end of the handles to remove.
- Page 21 Suggestions The below mentioned are only suggestions in order to permit drainage, these will vary depending on your flooring – material, flatness and slope. ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
- Page 22 Note: The Dimensions are approximate. ZZZ-187.W1209MR.0629-21.GP.EN.doc WEB VERSION...
