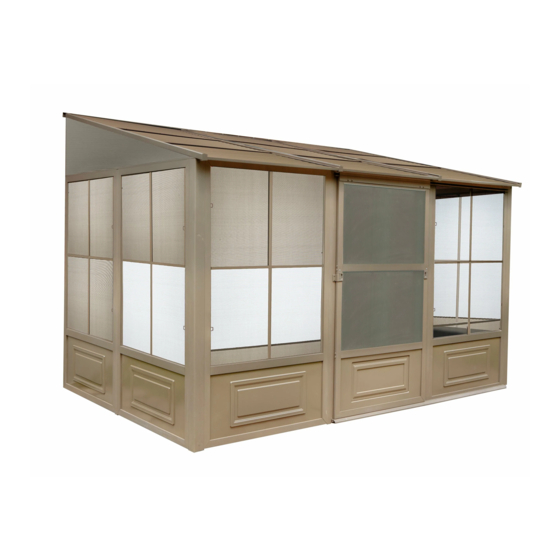

ASSEMBLY INSTRUCTIONS
8 X 12 SOLARIUM
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS
Assembly by two or three adults is suggested.
Requires 96" clearance at the wall
Base Dimensions 144''x 94 1/2'',
APPROX.
Largest Dimensions 144''x98 1/2''
(see pg.19)
ZZZ-187.W1207MR.0529-20.GP.EN.doc
WEB VERSION
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the W1207MR-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Gazebo penguin W1207MR-12

Summary of Contents for Gazebo penguin W1207MR-12

  • Page 1 W1207MR-12 SAND W1207MR-32 SLATE ASSEMBLY INSTRUCTIONS 8 X 12 SOLARIUM DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly by two or three adults is suggested. Requires 96” clearance at the wall Base Dimensions 144’’x 94 1/2’’,...

  • Page 2: Tools Required

    TOOLS REQUIRED:  Screwdriver (Philips #2)  Knife  File (smooth)  Needle-nosed pliers  Rubber mallet  Step ladder (minmum 6' in height)  Spatula  Power drill  Tube of silicon  Drill bit 5/16" cement (according to surface) ...
  • Page 3 ASSEMBLE PIECES STEP #3 BEFORE SCREWING Assemble ML-3, O-3, N-3, and MR-3 as shown THEM TO THE WALL and position evenly above vertical guides, at 96’’ from the ground. Secure wall track and vertical tracks to brick or cement wall by drilling through the aluminum and using screws Xx-3.
  • Page 4 STEP #5 Set left rafter F over last bracket then secure it with Bb-3 screw and continue screwing through joint K-3 with the Bb-3 screw. Secure to Q-3 bracket with self-tapping screw (PQ-3). Repeat on right side with rafter F1. STEP #6 Set G rafters over the bracket with Bb-3 screws at the top and two (2)
  • Page 5 STEP #7 DOOR UNIT(S) MUST BE ASSEMBLED INSIDE OF SOLARIUM. Slide upper door track F-3 into wheels of sliding door C-3. Slide lower door track G-3 and make sure inserts are close enough to the frame to attach. Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3.
  • Page 6 STEP #8 Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly.
  • Page 7 STEP #10 Slide roof panels (A, A1) onto lower track of rafters (F, F1, G). ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...
  • Page 8 STEP #11 Slide roof panels (B, B1) onto middle track of rafters (F, F1, G). ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...
  • Page 9 STEP #12 Set roof panels (C, C1) onto rafters (F, F1, G). Bb-3 ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...
  • Page 10 STEP #13 1. Close front end of rafters using brackets (M) with 2 bolts (Bb-3) for each. 2. Slide back down middle and lower roof panels (A, A1, B, B1) ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...

  • Page 11: Special Notes

    STEP #14 Anchor the solarium to the deck or floor securely using screws and shields supplied. See diagram below. SPECIAL NOTES To remove a screen, remove the two (2) screws at the top of the frame then pull sideways to the opposite end of the handles to remove.
  • Page 12 SOLARIUM W1207MR-12 SAND (see page 15 for Slate parts) PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-029-12 19-030-12 ROOF PANEL ROOF PANEL 10-496-12 19-031-12 REGULAR ROOF PANEL FRAME 10-497-12 FRAME NEXT 19-032-12 TO DOOR ROOF PANEL (Has more...
  • Page 13 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-036-12 11-545-12 RIGHT TOP DOOR ROOF BAR RAIL 19-037-12 11-546-12 REGULAR BOTTOM ROOF BAR DOOR RAIL 08-138-12 08-187 PLASTIC WASHER STOPPER Gg-3 10-500-12 12-161 LEFT SIDE RECEIVER Hh-3 08-193-12 10-501-12 PLASTIC RIGHT SIDE PLUG...
  • Page 14 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 13-045-12 19-048-12 SELF- LEFT GABLE TAPPING JOINT SCREW PQ-3 19-044 19-049-12 LEFT BACK RIGHT GABLE GABLE JOINT PANEL Rr-3 19-045 19-046 LEFT FRONT RIGHT BACK GABLE GABLE PANEL PANEL Ss-3 Tt-3 15-126-12 19-047...
  • Page 15 SOLARIUM W1207MR-32 SLATE PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-029-32 19-030-32 ROOF PANEL ROOF PANEL 10-496-32 19-031-32 REGULAR ROOF PANEL FRAME 10-497-32 FRAME NEXT 19-032-32 TO DOOR ROOF PANEL (Has more holes) 08-158-32 19-033-32 BOLT ROOF PANEL Bb-3 10-498-32 19-034-32...
  • Page 16 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 19-036-32 11-545-32 RIGHT TOP DOOR ROOF BAR RAIL 19-037-32 11-546-32 REGULAR BOTTOM ROOF BAR DOOR RAIL 08-138-32 08-187 PLASTIC WASHER STOPPER Gg-3 10-500-32 12-161 LEFT SIDE RECEIVER Hh-3 08-193-32 10-501-32 PLASTIC RIGHT SIDE PLUG...
  • Page 17 PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 13-045-32 19-048-32 SELF- LEFT GABLE TAPPING JOINT SCREW PQ-3 19-044 19-049-32 LEFT BACK RIGHT GABLE GABLE JOINT PANEL Rr-3 19-045 19-046 LEFT FRONT RIGHT BACK GABLE GABLE PANEL PANEL Ss-3 Tt-3 15-326-32 19-047...
  • Page 18 REMOVE STICKER BEFORE ASSEMBLY D-3 FRAME ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...
  • Page 19 ZZZ-187.W1207MR.0529-20.GP.EN.doc WEB VERSION...
  • Page 20 3. Leaking due to heavy rain may happen, please refer to the instruction manual for window positions and information on how to evacuate the water. (Depending on the model) 4. The product is only warranted in the event it is installed in accordance with the Gazebo Penguin’s written instructions enclosed with the product.
