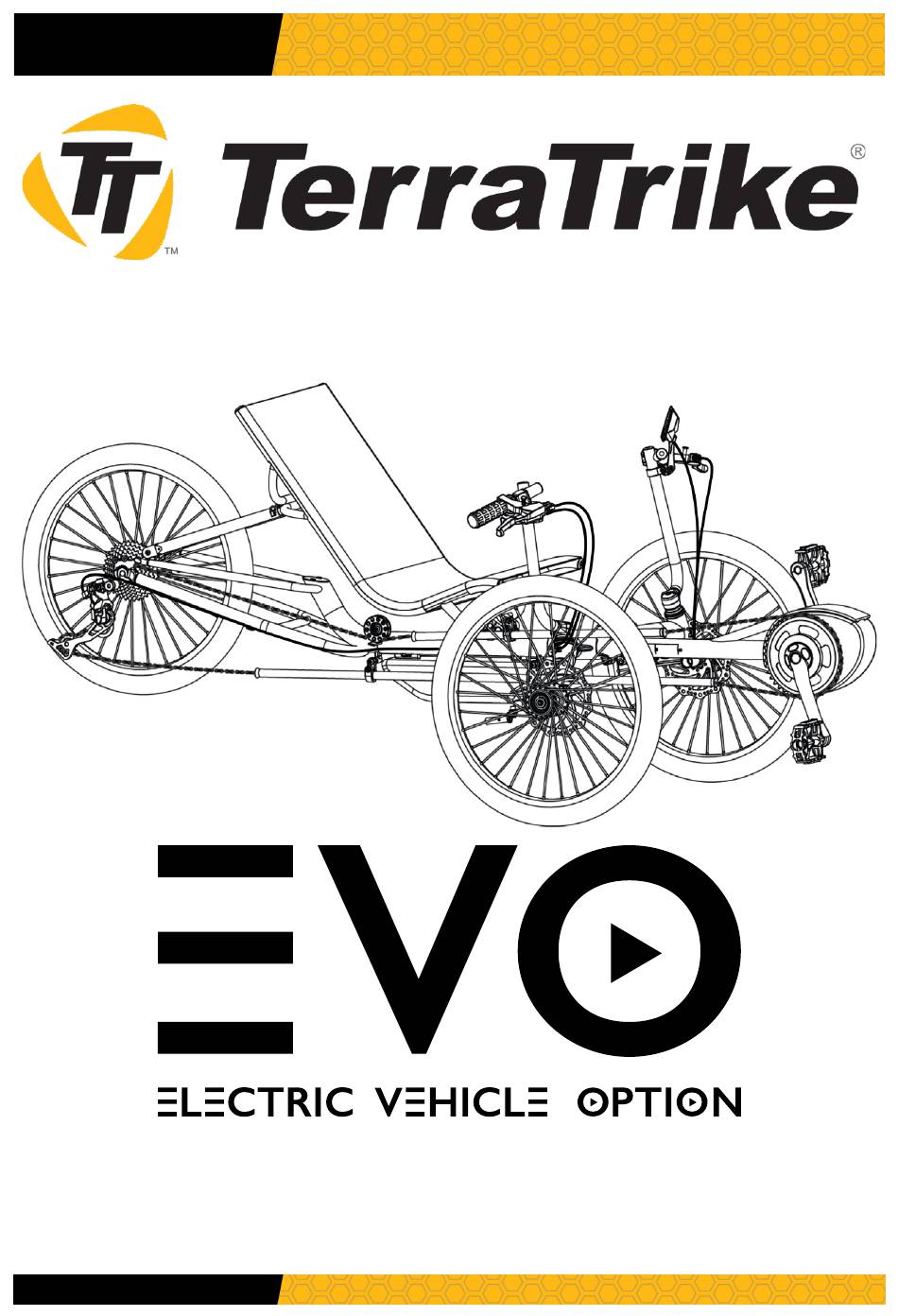

- Page 1 Build Notes www.TerraTrike.com | 800.945.9910 Revised 6/2022...
- Page 2 Caution: Boom and main frame are connected by the battery wire. Move both pieces together so the battery wire does not get damaged. Look through entire setup guide before beginning. Small parts box: Speed Sensor Magnet Lock Keys www.TerraTrike.com | 800.945.9910...
- Page 3 Speed Sensor Bracket Kiox Display ITEM NO. PART NUMBER DESCRIPTION QTY. TT000854 CLAMP, ACCESSORY MOUNT 7/8" TT000851 EVO DISPLAY MOUNT RISER WH000006 M4x.7 X 6mm SBHCS SS WH000002 M5x.8 X 18mm SBHCS SS TT000906 BOSCH, KIOX DISPLAY BRACKET WH000059 M4x0.7x6mm Flat Head SS...
- Page 4 Using caution to not stress wires, insert boom to desired length and snug boom pinch bolts to secure boom. Speed Sensor, Kiox Display and Controller will be hanging loose. www.TerraTrike.com | 800.945.9910...
- Page 5 Apply cable guide to bottom side of right outrigger. www.TerraTrike.com | 800.945.9910...
- Page 6 Refer to Step 6 for proper wire routing. Install magnet on spoke. Align magnet and marking on speed sensor. Ensure speed sensor wire is clear of brake rotor and any steering parts that could cause damage. www.TerraTrike.com | 800.945.9910...
- Page 7 Attach computer mount to left handlebar. Refer to Step 5 for proper wire routing. Mount Kiox Display and secure. www.TerraTrike.com | 800.945.9910...
- Page 8 Route wires according to diagram (underside of trike frame). Kiox cable should follow brake cable routing. Use the cable housing guide under the center lug of the frame to secure excess wires with ziptie. Speed sensor Kiox cable cable www.TerraTrike.com | 800.945.9910...
- Page 9 Inflate tires before performing alignment. The E.V.O. alignment measurement is approximately 29 inches (center tread to center tread), though slight variance is possible. Most importantly, make sure the alignment remains neutral with a rider seated in the trike. www.TerraTrike.com | 800.945.9910...
- Page 10 9 Rapid Axle Hubmount - RH TT000713 Rapid Axle Hubmount - LH TT000714 Rapid Axle Hubmount - Pair TT000516 10 Rapid Axle - RH TT000717 Rapid Axle - LH TT000718 Rapid Axle - Pair TT000563 11 Axle Spacer TT000568 www.TerraTrike.com | 800.945.9910...
- Page 11 | 800.945.9910...
- Page 12 Hybrid Steering Stack Assembly Continued* Install Axle Spacer (11) between brake rotor and hub. www.TerraTrike.com | 800.945.9910...
- Page 13 Lower Chain Tube Setup Idler Setup Upper Chain Tube Setup www.TerraTrike.com | 800.945.9910...
-
Page 14: Parts List
Chain Tube, 56 LDPE TT000548 Chain Tube, Clamp, Traveler TT000422 Idler Wheel Spacer TT000262 M8x30mm BHCS SS TT000280 M5x18mm PHSS Idler Assy. Idler, 10t Deluxe TT000261 Idler “L” Bracket TT000263 Idler Wheel Spacer TT000262 M8x35mm BHSCS SS TT000279 Chain Routing www.TerraTrike.com | 800.945.9910... - Page 15 Cable Routing RH Brake Cable Shift Cable Cable Routing LH Brake Cable Display Cable www.TerraTrike.com | 800.945.9910...
- Page 16 -Charge the battery pack completely. Instructions for charging are located on TerraTrike’s website at: https://www.terratrike.com/resources/manuals/ Scroll down to locate the battery manual. -Complete the trike assembly. -Secure the battery with the additional safety strap. -Remember to double check your work.
- Page 17 800.945.9910 | www.TerraTrike.com 4460 40th St. SE | Grand Rapids, MI 49512 USA Revised 6/2022...
