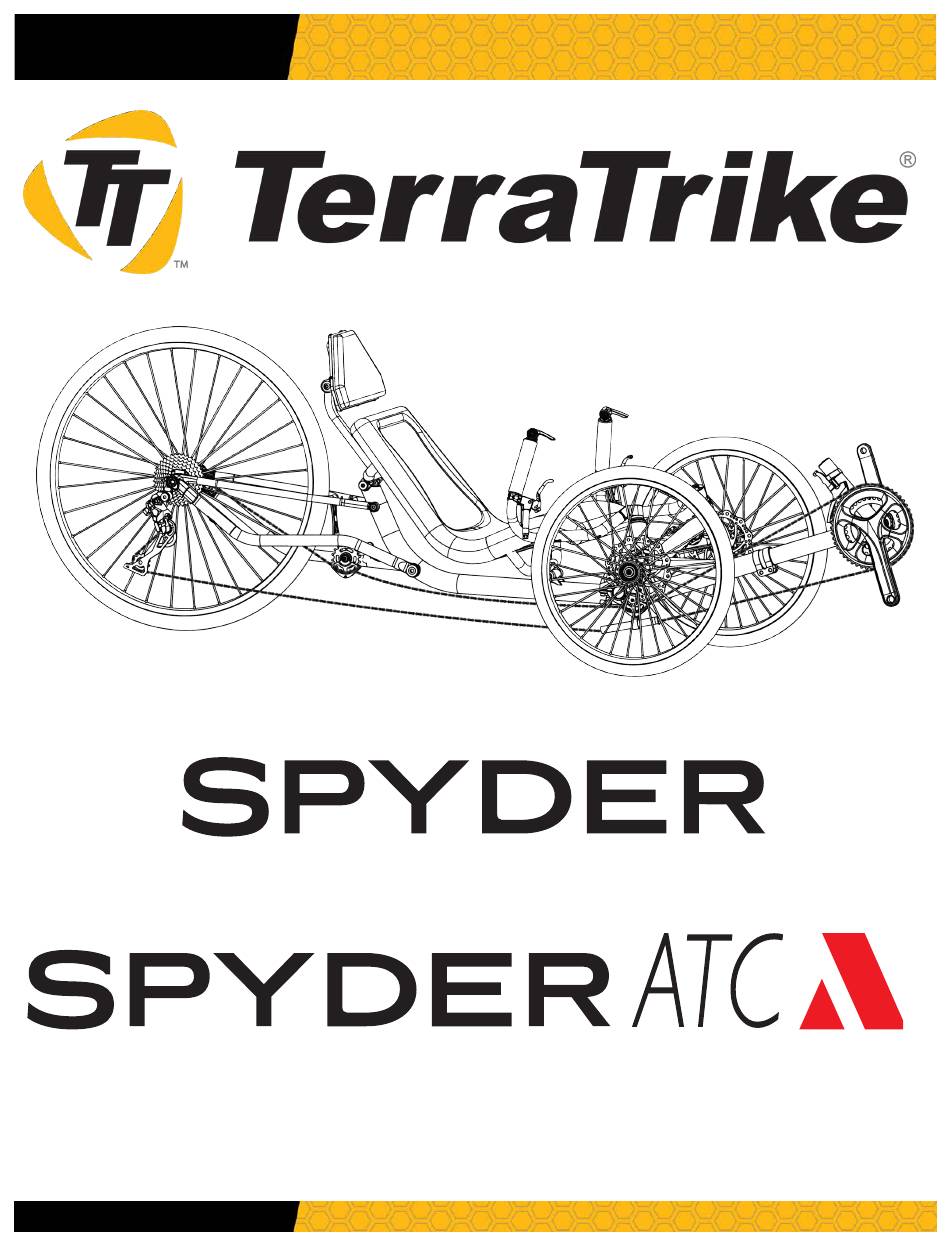

- Page 1 & Build Notes www.TerraTrike.com | 616.608.8086 Revised 10/2021...
-
Page 2: Frame Assembly
Frame Assembly Install rear frame section and derailleur hanger as shown below. Torque specs: Top bolt(2) 8.5Nm, Bottom Bolt(4) 20Nm. 15x23mm Cap WH000048 15x74mm Bolt WH000049 28.6x28mm Cap WH000050 28.6x77mm Bolt WH000051 Derailleur Hanger with Bolt WC000040 www.TerraTrike.com | 616.608.8086... -
Page 3: Tie Rod Assembly
Left Right Alignment Inflate tires before performing alignment. The Spyder alignment measurement is approximately 29¼ inches (center tread to center tread), though slight variance is possible. Most importantly, make sure the alignment remains neutral with a rider seated in the trike. - Page 4 Spyder Steering Stack Assembly M6x30 Socket Head Bolt TT000576 Hybrid Top Cap TT000506 Spyder Handlebar Pair TT600930 Hybrid Headset Spacer TT000520 Hybrid Headset Cap TT000505 Plastic Bushing TT000504 Hybrid Headset Bearing TT000600 Hybrid Steering Crown Race TT000601 Rapid Axle Hubmount - RH...
- Page 5 Steering Stack Assembly Continued* Install Install Axle Spacer (11) between brake rotor and hub. www.TerraTrike.com | 616.608.8086...
-
Page 6: Handlebar Assembly
Handlebar Assembly Minimum insertion of the handlebars is 7cm from the alignment marking nearest the handlebar upright. Brake Lever Orientation: (Spyder model only) www.TerraTrike.com | 616.608.8086... - Page 7 Chain Tube Setup/ Idler Setup 16t Aluminum Idler with cage WC000041 M8x30 Bolt TT000280 14cm LDPE Chain Tube WC000039 Spyder Chain Tube Clamp WC000038 16t Aluminum Idler with cage WC000041 M8x30 Bolt TT000280 www.TerraTrike.com | 616.608.8086...
-
Page 8: Chain Routing
Chain Routing Cable Routing Note: Internal cable routing kit is necessary to complete cable routing. Remove Spyder Head Badge and housing ferrules prior to routing cables. Right Hand: When routing RH cable housing, it is recommended to start installation at outrigger cable guide. - Page 9 Feed housing through boom/boom receiver tube to the badge window, and then through outrigger. Finish by routing housing from outrigger cable guide to handlebar cable guide and through handlebar. Install shifter and shift cable. Brake Cable Shift Cable (solid=external, dashed=internal) www.TerraTrike.com | 616.608.8086...
- Page 10 Inline Barrel Adjuster: (Spyder model only) Install inline barrel adjuster on rear cable housing after the housing has been routed through the frame. Install the 7” cable housing section between barrel adjuster and rear derailleur. www.TerraTrike.com | 616.608.8086...
- Page 11 (2) into upper mounting holes on seat. Install M5x65 bolt (3) and tighten to 5Nm. Lower: Install seat bolts (5) & (6) into lower mounting holes on seat. Install M5x45 bolt (7) and tighten to 5Nm. Perspective: Front of trike. www.TerraTrike.com | 616.608.8086...
- Page 12 (1) and M15 press fit bushing (2) into upper seat mounting tabs. Install M5x80 bolts (3) and tighten to 5Nm. Lower: Install fixed seat bolt (5) into lower seat mounting tabs and tighten. Perspective: Front of trike. www.TerraTrike.com | 616.608.8086...
- Page 13 Flag Mount: (Sport Touring Seat only) Flag Mount is included in parts kit box. Can be installed over the mesh on left or right bottle cage bosses located on the side rails of the Sport Touring Seat. www.TerraTrike.com | 616.608.8086...
- Page 14 800.945.9910 | www.TerraTrike.com 4460 40th St. SE | Grand Rapids, MI 49512 USA Revised 10/2021...
