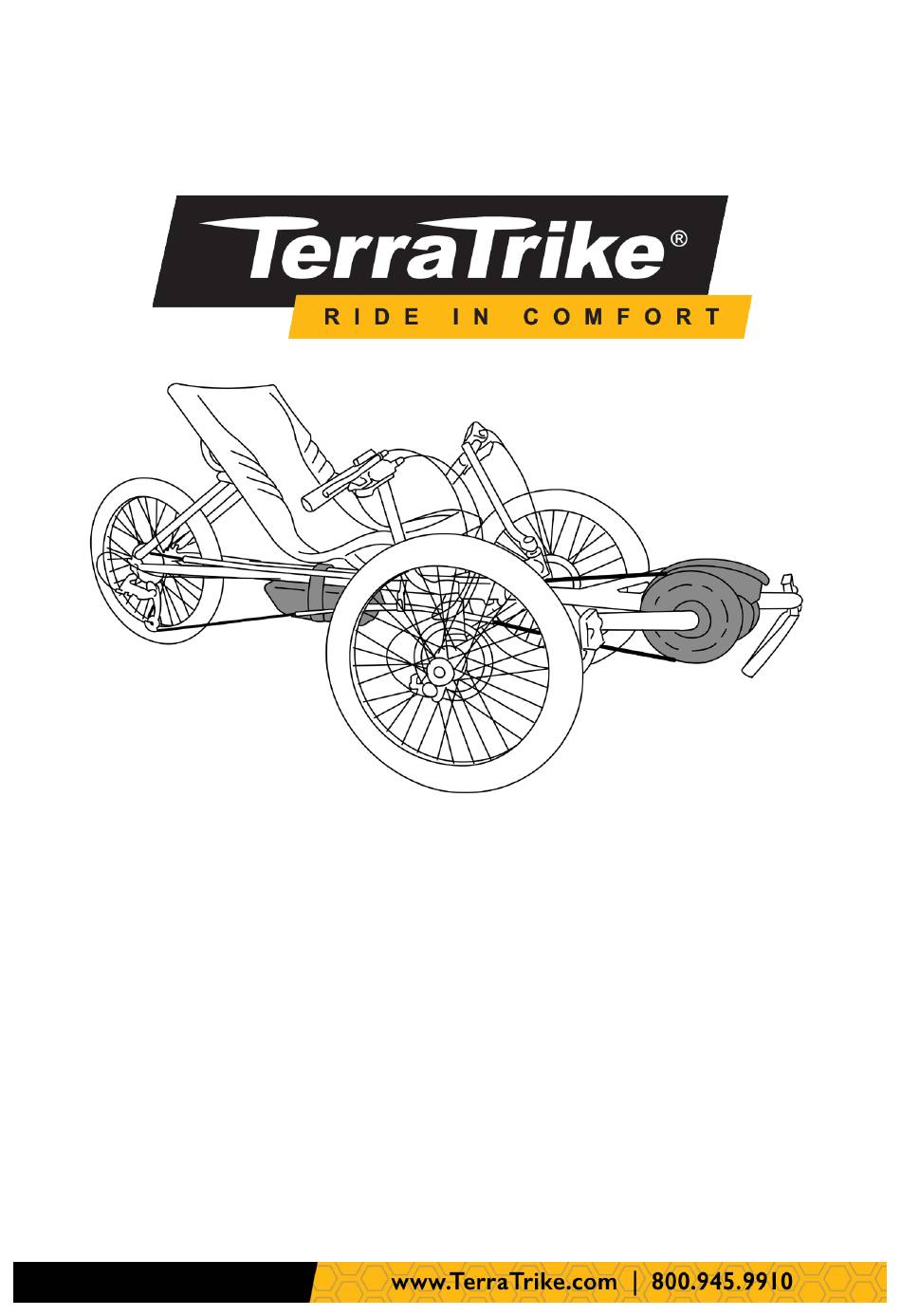

- Page 1 TerraTrike E.V.O. with Bosch Active Line Plus Dealer Assembly Setup Guide...
- Page 2 Caution: boom and main frame are connected by the battery wire. Move both pieces together so the battery wire does not get damaged. Look through entire setup guide before beginning. Some steps do not need to be done in a particular order.
- Page 3 Parts: Computer Sensor Bracket...
- Page 4 Using caution to not stress wires, insert boom to desired length and snug boom pinch bolts to secure boom. Speed Sensor Purion Display...
- Page 5 Secure the battery with the additional safety strap.
- Page 6 Apply cable guide to bottom side of left outrigger.
- Page 7 Mount speed sensor on computer sensor bracket. Refer to Step 6 for proper wire routing. Install magnet on spoke. Align magnet and marking on speed sensor. Ensure speed sensor wire is clear of brake rotor and any steering parts that could cause damage.
- Page 8 Attach computer mount to left handlebar. Refer to Step 6 for proper wire routing. Mount Bosch computer and secure.
- Page 9 Route wires according to diagram. Using the cable housing guide under the center lug of the frame secure excess wires with ziptie. motor computer speed sensor battery...
- Page 10 The E.V.O. chain tubes and mounts are to be configured as shown below.
- Page 11 -Charge the battery pack completely. Instructions for charging are located on TerraTrike’s website at: www.terratrike.com/product-category/trikes/rambler-evo/ Scroll down to locate the battery manual. -Complete the trike assembly. -Remember to double check your work. -Test ride the finished product. -Final step: Watch your customers smile with excitement as they test the intuitive power of the Bosch E.V.O.
- Page 12 4460 40th St SE Grand Rapids, MI 49512 www.TerraTrike.com | 800.945.9910...
