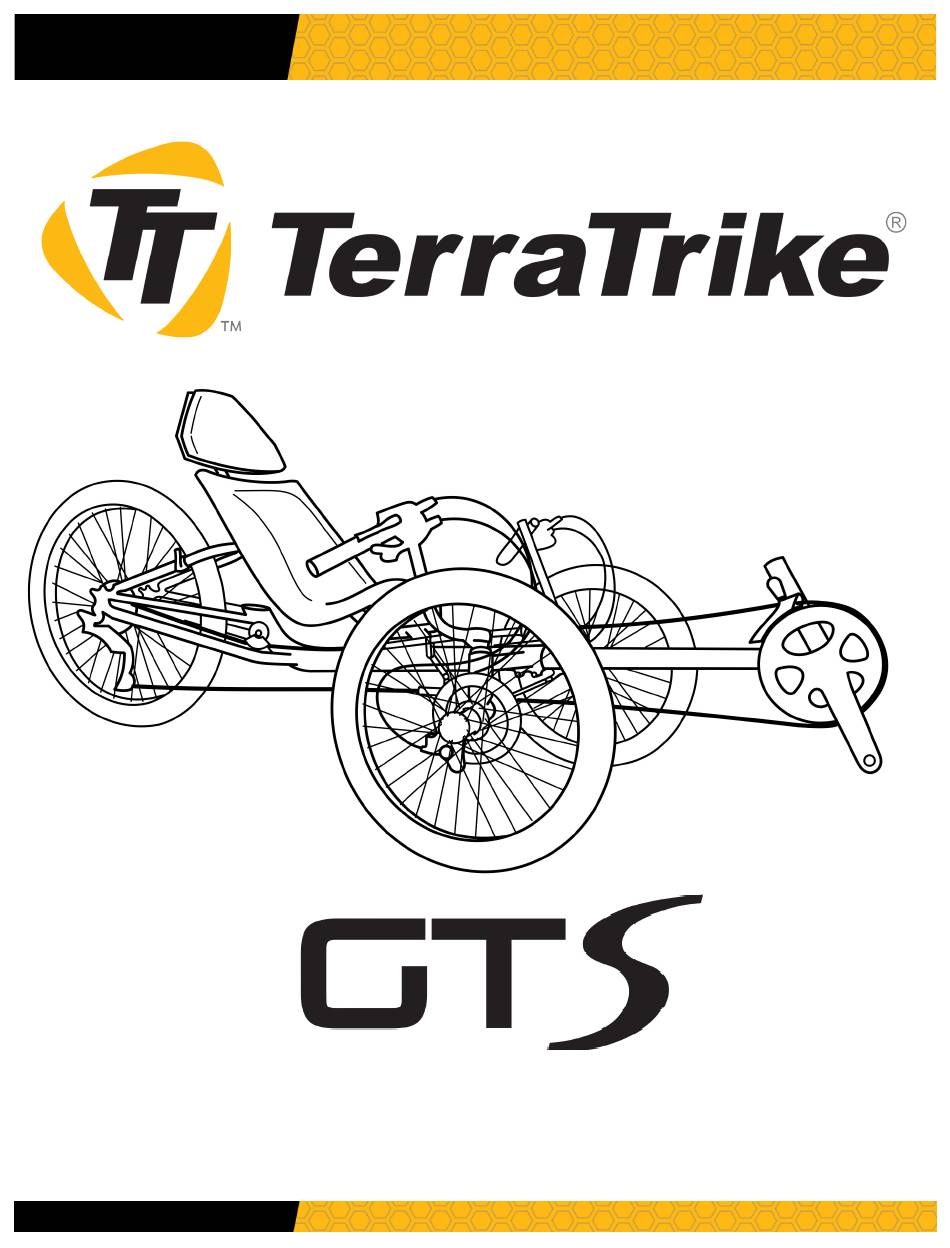

- Page 1 Build Notes www.TerraTrike.com | 800.945.9910 Revised 06/2022...
- Page 2 Alignment Inflate tires before performing alignment. The GTS alignment measurement is approximately 29¼” (center tread to center tread), though slight variance is possible. Most importantly, make sure the alignment remains neutral with a rider seated in the trike. 29 ¼...
-
Page 3: Parts List
9 Rapid Axle Hubmount - RH TT000713 Rapid Axle Hubmount - LH TT000714 Rapid Axle Hubmount - Pair TT000516 10 Rapid Axle - RH TT000717 Rapid Axle - LH TT000718 Rapid Axle - Pair TT000563 11 Axle Spacer TT000568 www.TerraTrike.com | 800.945.9910... - Page 4 Hybrid Steering Stack Assembly Continued* Install Axle Spacer (11) between brake rotor and hub. www.TerraTrike.com | 800.945.9910...
- Page 5 Chain Tube Setup Mount the chain tube and idler assembly as shown below. Ensure the chain tubes do not rotate in the clamps after tightening the pinch bolts. www.TerraTrike.com | 800.945.9910...
- Page 6 Chain Tube, 22cm LDPE WC000010 Chain Tube CLamp, Traveler TT000422 M8x30mm BHCS SS TT000280 M5x18mm Pan Head SS M8 Flat Washer SS TT000290 Idler Assy. Idler, 16T w/ Cage WC000041 M3x6 Button HEad M8x35mm BHSCS SS TT000279 www.TerraTrike.com | 800.945.9910...
-
Page 7: Chain Routing
Chain Routing Cable Routing RH Brake Cable Shift Cable www.TerraTrike.com | 800.945.9910... - Page 8 Cable Routing LH www.TerraTrike.com | 800.945.9910...
- Page 9 800.945.9910 | www.TerraTrike.com 4460 40th St. SE | Grand Rapids, MI 49512 USA...
