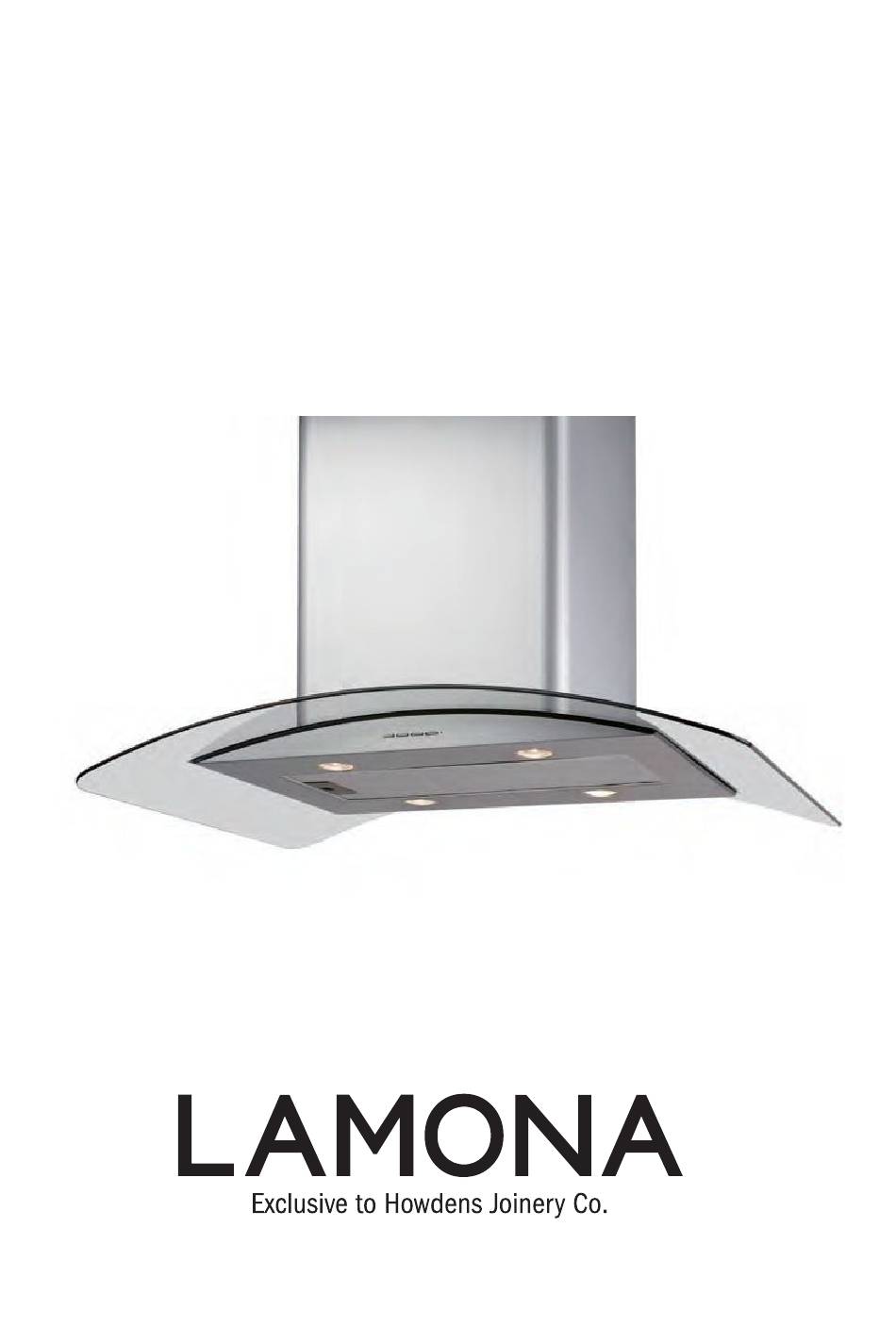

- Page 1 Stainless Steel & Glass Island Extractor LAM2600 Instillation & User Instructions issu...
-
Page 2: Table Of Contents
Contents Environmental note Important Safety & Technical Information Product Information Methods of Extraction Installation Electrical Connections Operating Your Extractor The Grease Filters The Carbon filters Maintenance General Cleaning Replacing the halogen Lamps Troubleshooting Your Guarantee Product guarantee details What to do if you need to report a problem www.howdens.com Page 2... -
Page 3: Environmental Note
• The packaging materials that Lamona uses are environmentally friendly and can be recycled • Please discard all packaging material with due regard for the environment. -
Page 4: Important Safety & Technical Information
Important safety information Your safety is of the utmost importance to Lamona. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Lamona Advice Line. -
Page 5: Product Information
Product Information On opening your box you will find the extractor hood, glass canopy, a telescopic decorative outer chimney, adjustable inner chimney assembly, a ducting connector, and a bag of fixings and screws. Upper plate Upper chimney Lower chimney Upper support Lower support Glass canopy Duct adapter... -
Page 6: Methods Of Extraction
Methods of Extraction The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling to an exterior wall. (Suitable ductingkits may be purchased from the store where you bought your extractor.) You do not need a charcoal filter when using the ducting mode. -
Page 7: Installation
Installation This instruction must be strictly adhered to. Failure to comply could result in overheating and serious damage to your appliance. It is recommended that the installation is carried out by at least two people. Mark and drill four holes using to the dimensions shown and install the ducting facilities (if ducting the extractor out) in the ceiling. - Page 8 Place the exhaust duct onto the connector and secure it with duct tape or tie wrap The recommended clearance Between the extractor and the work top is 750mm. The minimum allowable clearance is 700mm H (min. 62,7cm, max. 102,7cm) 32 of 48 75cm recommended 70cm minimum worktop...
- Page 9 (62.7 to 80.3cm) (82.8 to 102.7cm) Socket on the ceiling Lower 2 holes Mains lead Upper 2 holes Place the inner and outer chimneys on the extractor hood, and make the electrical connection. Socket on the ceiling Mains lead 2 of 6 Fix the extractor assembly to the upper plate with 16 screws.
- Page 10 2 of 6 Slide up the inner chimney and fix it to the 2 of 6 upper plate with 2 screws. Finally fix the outer chimney to the extractor hood with 2 screws. 2 of 6 2 of 6 www.howdens.com Page 10...
-
Page 11: Electrical Connections
Electrical Connections IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE CONNECT- ING. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, with a pilot lamp. -
Page 12: Operating Your Extractor
Operating Your Extractor A)Light switch. B)Selects motor speed 1. C)Selects motor speed 2. D)Selects motor speed 3. WARNING: NEVER HAVE A LIGHTED FLAME UNDER THE EXTRACTOR HOOD. The Grease Filters The grease filter is of a metallic material and should be washed using a neutral detergent or in a dishwasher. REMOVAL OF GREASE FILTERS: 1 Press latch towards side of extractor 2 Remove filter. -
Page 13: Maintenance
Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electric supply is disconnected. To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet, paying particular attention to the grease filters to ensure grease deposits do not build up. THE MANUFACTURER DECLINES ALL LIABILITY IN CASES WHERE THE INSTRUCTIONS FOR THE APPROPRIATE INSTALLATION, MAINTENANCE AND USE OF THE EXTRACTOR HOOD ARE NOT OBSERVED. -
Page 14: Troubleshooting
Trouble Shooting Before you assume the worst, check this simple fault-finding guide to get to the root of the problem: Halogen Lamps fail to operate A replacement is probably necessary, but first check that the lamp is correctly fitted into its holder. -
Page 15: Your Guarantee
What to do if you need to report a problem- Please ensure you have ready: - The product’s model & serial numbers - Howdens Proof of Purchase document - Your full contact details. Call the Lamona Service Line on 0845 00 60 006 Page 15 www.howdens.com...
