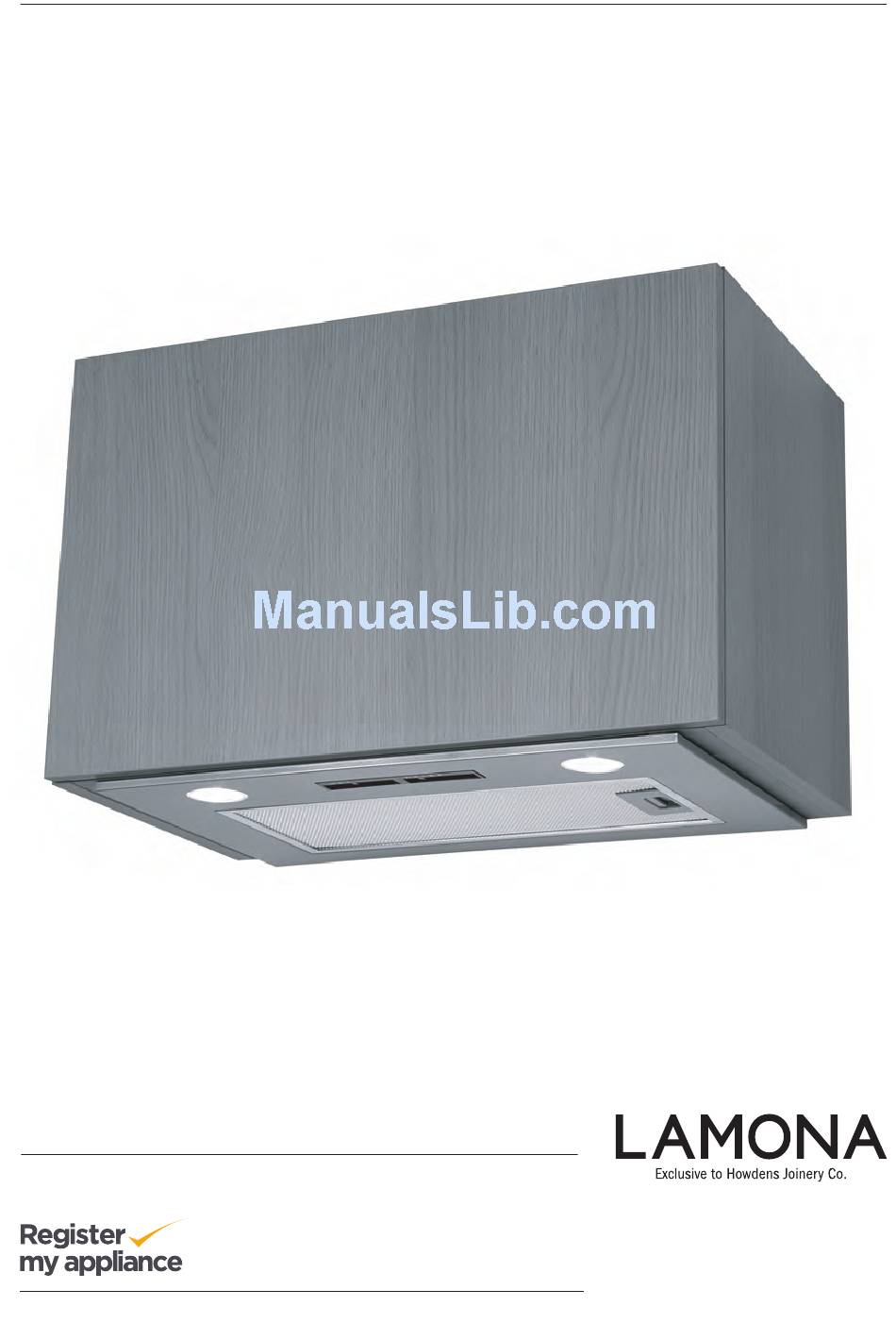

- Page 1 60cm Canopy Extractor LAM2301 User Guide www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 Dear Customer, Congratulations on your choice of domestic appliance which has been designed to give you excellent service. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the oven. •...
-
Page 4: Table Of Contents
User manual LAM2301 Index Before using the extractor Safety General Fire Saftey Safety for Children c i r y t i General Information & Operation Control Panel Layout Using Your Cooker Hood General Cleaning Care and maintenance General Cleaning Grease Filters... -
Page 5: Before Using The Extractor
Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety • Repair procedures must always be performed This appliance is for domestic extraction service agents. -
Page 6: Fire Saftey
User manual LAM2301 Fire Safety Do not set your cooker hood less than 700mm above your hob. When installing the hood, ensure that the following recommended distances are observed • When installed between adjoining wall between the highest point on the hob top... -
Page 7: General Information & Operation
General Information & operation Extractor layout Exhaust / Recirculation Vent Extractor Body Light Control Panel Grease Filter Extractor Facia Dimensions: Features: Extractor width: 525mm • Slider control operation. Extractor depth: 275mm • 3 speed extraction. Extractor height: 162mm • 2 x 40W GU10 lamps. ( Not including vent adapter) Aperture Size: 495mm x 257mm •... -
Page 8: Using Your Cooker Hood
User manual LAM2301 Using Your Cooker Hood You should clean the appliance using a damp new cloth and warm soapy water before using the appliance for the time. You should then dry it thoroughly using a soft cloth. Make sure that it has been installed by a suitably person, as per the installation instructions. -
Page 9: Care And Maintenance
Care and maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call the service number on the rear cover of this booklet or a suitably repairer. -
Page 10: Carbon Filters
User manual LAM2301 Replacing the Lamps The extractor hood is with lamps that may need to be replaced periodically. • To do this, ensure that the power is switched off and the lamps have had time to cool. • Apply pressure to the underside of the lamp that needs to be replaced, and twist anticlockwise (from below) to release. -
Page 11: Installation
Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal when using the external ducting mode. -
Page 12: Before Beginning Instalation
User manual LAM2301 Before beginning installation • Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. -
Page 13: Connecting To External Ducting
Installing your cooker hood You will have to decide before installing your cooker hood whether to use it in extraction mode or recirculation mode. We recommend that at least two people install this hood. Cut a rectangular aperture in the canopy unit 4 5mm wide and 13mm from the front edge. -
Page 14: Electrical Connections
User manual LAM2301 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. WARNING: This appliance must be earthed! Howdens shall not be held responsible for any damage caused by using the extractor without an earthed connection. -
Page 15: Troubleshooting
TECHNICAL INFORMATION Dimensions: Total Wattage: 140W Voltage: 220V - 240V 50HZ Width : 525mm Depth : 275mm Height: 162 mm Your Cooker Hood is with: Single motor 60W Slider control operation 3 Speed extraction x2 40W GU10 Lamps 1 Aluminium grease Optional Extras: Charcoal HJA2906... -
Page 16: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 17 Product Fiche Commission Regula on (EU) No 65/2014 Model LAM2301 87.3 kWh/a 9.90% hood 100.9 hood 123.9 m3/h 142 Pa 195.9 m3/h 49.5 W 80 W 1194 Lux middle 66dB * Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards.
