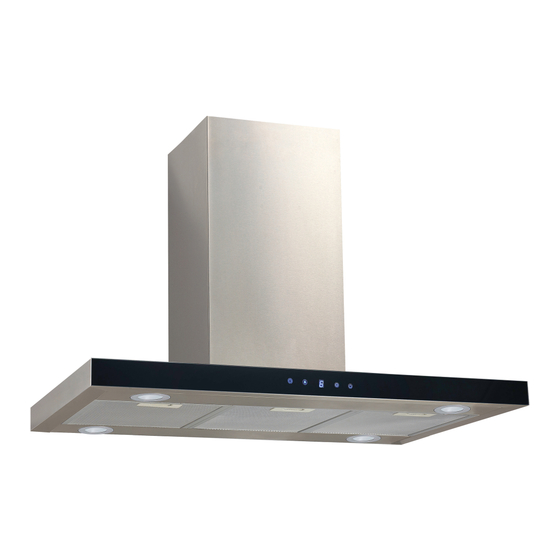

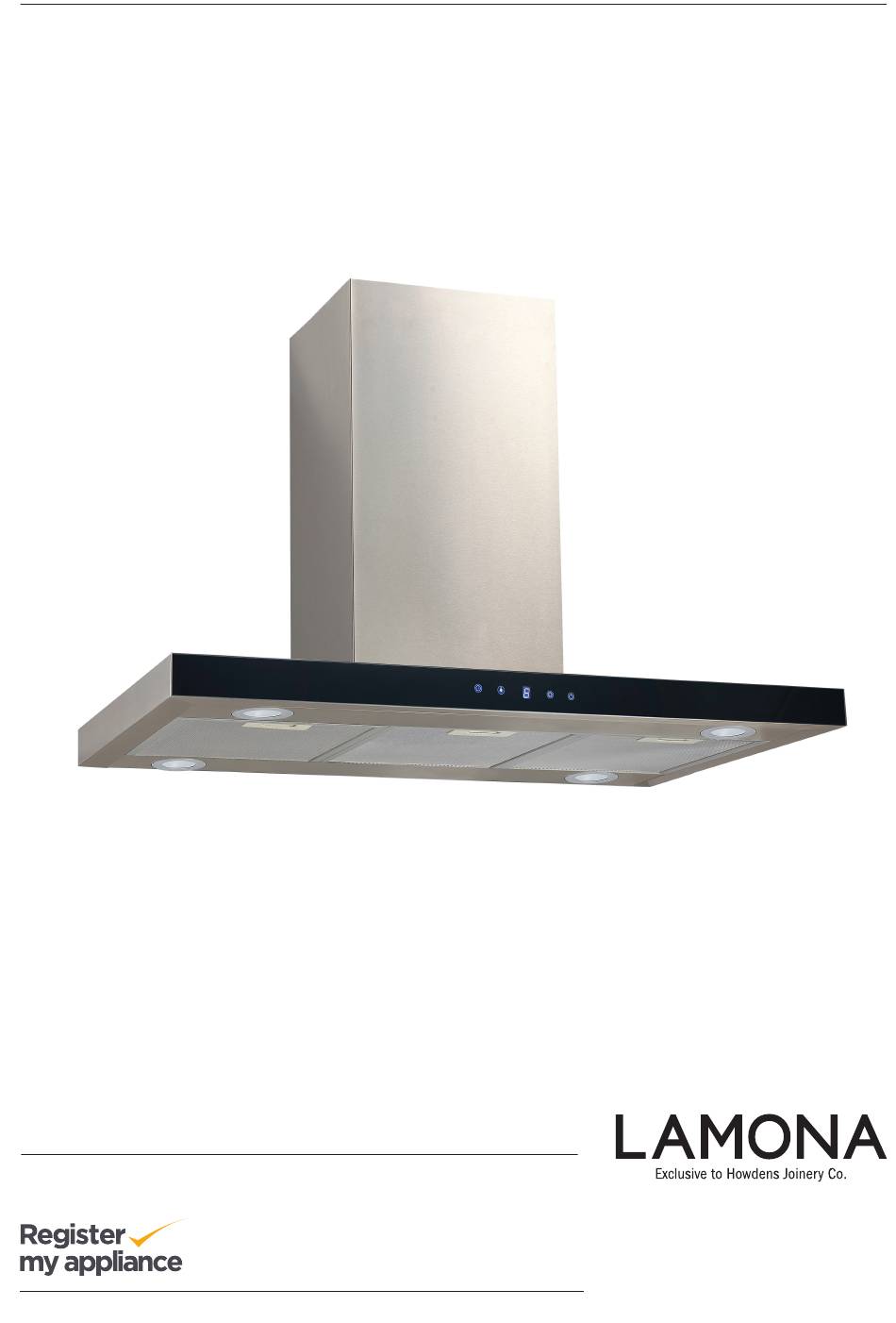

- Page 1 T-Box Island Hood LAM2851 Instructions & Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 User manual LAM2851 Dear Customer, Congratulations on your choice of a LAMONA domestic appliance. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the product. • Always follow the safety instructions.
-
Page 4: Table Of Contents
LAMONA Appliances Index Before using the extractor Safety Fire safety Ventilation Inportant safety information Electrical safety General information & operation Extractor contents Control panel layout Using your cooker hood Speed selection Light control Remote controls Battery Connecting the remote control... -
Page 5: Before Using The Extractor
User manual LAM2851 Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety instructions and all measurements Important! followed. -
Page 6: Fire Safety
LAMONA Appliances Important Safety Information Fire Safety • When in extraction mode, air in the room is being removed by the • Do not leave frying pans cooker hood. Please make sure unattended during use because that proper ventilation measures overheated fats or oils might catch are being observed. -
Page 7: Inportant Safety Information
User manual LAM2851 Important Safety Information Using lids on pans can help reduce • Do not use high level grills or the amount of steam being released BBQ type products under this and subsequent condensation. extractor. Induction hobs offer a powerful,... -
Page 8: General Information & Operation
LAMONA Appliances General Information & Operation Extractor Contents Control Panel Layout Page _ 08 www.howdens.com... -
Page 9: Using Your Cooker Hood
User manual LAM2851 Using Your Cooker Hood Make sure that it has been installed by a suitably person, as per the installation instructions. Ideally you should turn on your hood ten minutes before you start to cook, or at the very least when you begin cooking. -
Page 10: Battery
LAMONA Appliances Battery The remote control requires a CR2025 battery. The battery can be accessed fromthe bottom, as shown in the below picture. Carefully release the tab and pull the battery tray out. Connecting The Remote Control A new remote control has to estabish a connection to the cooker hood when used for the first time. -
Page 11: Care And Maintenance
User manual LAM2851 Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. -
Page 12: Carbon Filters
LAMONA Appliances The Carbon Filter If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filter. This will help absorb odours caused by cooking. Carbon filters have a limited life. We advise you to change them when there is a noticable drop in peformance. -
Page 13: Installation
User manual LAM2851 Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal... -
Page 14: Before Beginning Installation
LAMONA Appliances Before Beginning Installation Check that the p roduct purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. -
Page 15: Installation Fixing Method Outline
User manual LAM2851 Installation - Fixing Method Outline 1. Prepare venting (if applicable). 2. Prepare electrical connection point. 3. Securely fasten top plate to the ceiling (top fixing or extractor body fixing method). 4. Build extractor body and frame (top fixing or extractor body fixing method). -
Page 16: Installation
LAMONA Appliances Installation The ceiling height (A) determines the method of installation. If ceiling height is less than 2.45m: ‘Top plate’ fixing method (3 x person fit) Fasten plate to ceiling, struts fasten to extractor, chimney slides over struts, lift whole unit up to fasten to ceiling plate. -
Page 17: Building And Fixinf The Extractor
User manual LAM2851 Installation - Building & Fixing Your Extractor Based on the standard Howdens Kitchen Installation Manual set-up of: Base unit height 890mm Worktop* 40mm (dependant on worktop chosen) (*Can be reduced to 700mm as a minimum dimension) Rec. Hob Clearance* 750mm =1680mm (Height from floor to base of extractor) 2.4m - Ceiling Height Set-Up (= ‘Top Plate’... - Page 18 LAMONA Appliances Installation - Building & Fixing Your Extractor 2.69m - Maximum Height Set-Up (= ‘Extractor body’ fixing) Build ceiling plate and struts to c.1016mm Struts length set to c. 957mm (*100mm minimum strut overlap is necessary) 2.46m - Minimum height for ‘Extractor body’ fixing Build ceiling plate and struts to c.780mm...
-
Page 19: Electrical Connections
User manual LAM2851 Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 20: Technical Specifications
LAMONA Appliances Technical Specification TECHNICAL INFORMATION Dimensions: Total Wattage: 326W Voltage: 220V - 240V 50HZ Width : 900mm Depth : 600mm Your Cooker Hood is with: Single motor 320W Touch control with remote control 3 Speed extraction x4 LED lamps... -
Page 21: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 22 Product serial number (Place sticker here) ISSUE v1 190617...
