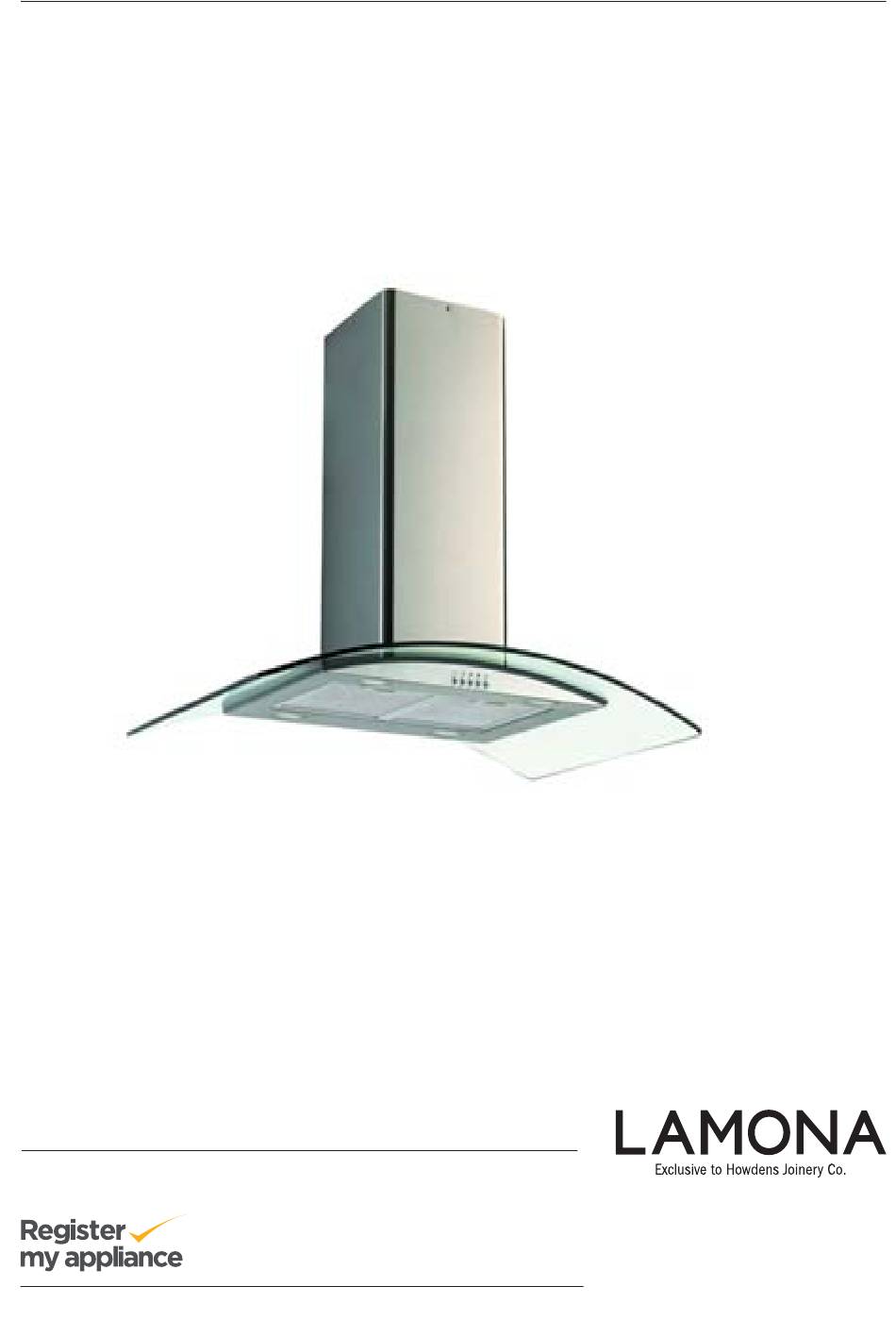

- Page 1 Island Extractor LAM2850 Instructions & Installation www.howdens.com/appliance-registration...
- Page 2 See back page for product serial number...
- Page 3 Dear Customer, Congratulations on your choice of domestic appliance. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the oven. • Always follow the safety instructions. • Keep this user manual within easy reach for future reference.
-
Page 4: Table Of Contents
Index Before using the extractor Safety General Safety for Children Fire Safety c i r y t i General Information & Operation r Contents Control Panel Layout Using Your Cooker Hood Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps Installation Methods of Extraction... -
Page 5: Before Using The Extractor
Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety instructions and all measurements Important! followed. -
Page 6: General
Important Safety Information • When in extraction mode, air in Fire Safety the room is being removed by the • Do not leave frying pans cooker hood. Please make sure unattended during use because that proper ventilation measures overheated fats or oils might catch are being observed. - Page 7 Important Safety Information Using lids on pans can help reduce • Do not use high level grills or the amount of steam being released BBQ type products under this and subsequent condensation. extractor. Induction hobs offer a powerful, Electrical Safety more efficient heating process but do not generate the higher levels of •...
-
Page 8: General Information & Operation
General Information & Operation Extractor Contents Control Panel Layout Light on/off Extractor Power off Extractor power level 1 Extractor power level 2 Extractor power level 3 Page _ 8... -
Page 9: Using Your Cooker Hood
Using Your Cooker Hood Make sure that it has been installed by a suitably person, as per the installation instructions. Ideally you should turn on your hood ten minutes before you start to cook, or at the very least when you begin cooking. -
Page 10: Care And Maintenance
Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call the service number on the rear cover of this booklet or a suitably repairer. -
Page 11: Carbon Filters
Care and Maintenance The Carbon Filter If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filter. This will help absorb odours caused by cooking. Carbon filters have a limited life. We advise you to change them when there is a noticable drop in peformance. The intervals between changing the filter will depend entirely upon the amount of cooking you do, but on average they will last about 3-6 months. -
Page 12: Installation
Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal when using the external ducting mode. -
Page 13: Before Beginning Installation
Before Beginning Installation Check that the p roduct purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside. -
Page 14: Installation Fixing Method Outline
Installation - Fixing Method Outline 1. Prepare venting (if applicable). 2. Prepare electrical connection point. 3. Securely fasten top plate to the ceiling (top fixing or extractor body fixing method). 4. Build extractor body and frame (top fixing or extractor body fixing method). 5. - Page 15 Installation The ceiling height (A) determines the method of installation. If ceiling height is less than 2.45m: ‘Top plate’ fixing method (3 x person fit) Fasten plate to ceiling, struts fasten to extractor, chimney slides over struts, lift whole unit up to fasten to ceiling plate.
- Page 16 Installation - Building & Fixing Your Extractor Based on the standard Howdens Kitchen Installation Manual set-up of: Base unit height 890mm Worktop* 40mm (dependant on worktop chosen) (*Can be reduced to 700mm as a minimum dimension) Rec. Hob Clearance* 750mm =1680mm (Height from floor to base of extractor) 2.4m - Ceiling Height Set-Up (= ‘Top Plate’...
- Page 17 Installation - Building & Fixing Your Extractor 2.69m - Maximum Height Set-Up (= ‘Extractor body’ fixing) Build ceiling plate and struts to c.1016mm Struts length set to c. 957mm (*100mm minimum strut overlap is necessary) 2.46m - Minimum height for ‘Extractor body’ fixing Build ceiling plate and struts to c.780mm Struts length set to c.
-
Page 18: Electrical Connections
Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 19: Technical Specifications
Technical Specification TECHNICAL INFORMATION Dimensions: Total Wattage: 113W Voltage: 220V - 240V 50HZ Width : 900mm Depth : 600mm Your Cooker Hood is with: Single motor 105W Push button control 3 Speed extraction x4 LED lamps x2 Aluminium grease filters Optional Extras: Charcoal LAM2002 (PK1) -
Page 20: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0344 460 0006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 21 Product Fiche Commission Regula on (EU) No 65/2014 Model LAM2850 56.6 kWh/a 12.1% hood 83.7 hood 245 m3/h 155 Pa 420.3 m3/h 87 W middle 73dB * Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards.
- Page 22 Product serial number (Place sticker here) ISSUE v1 190617...
