Page 1: Fittings

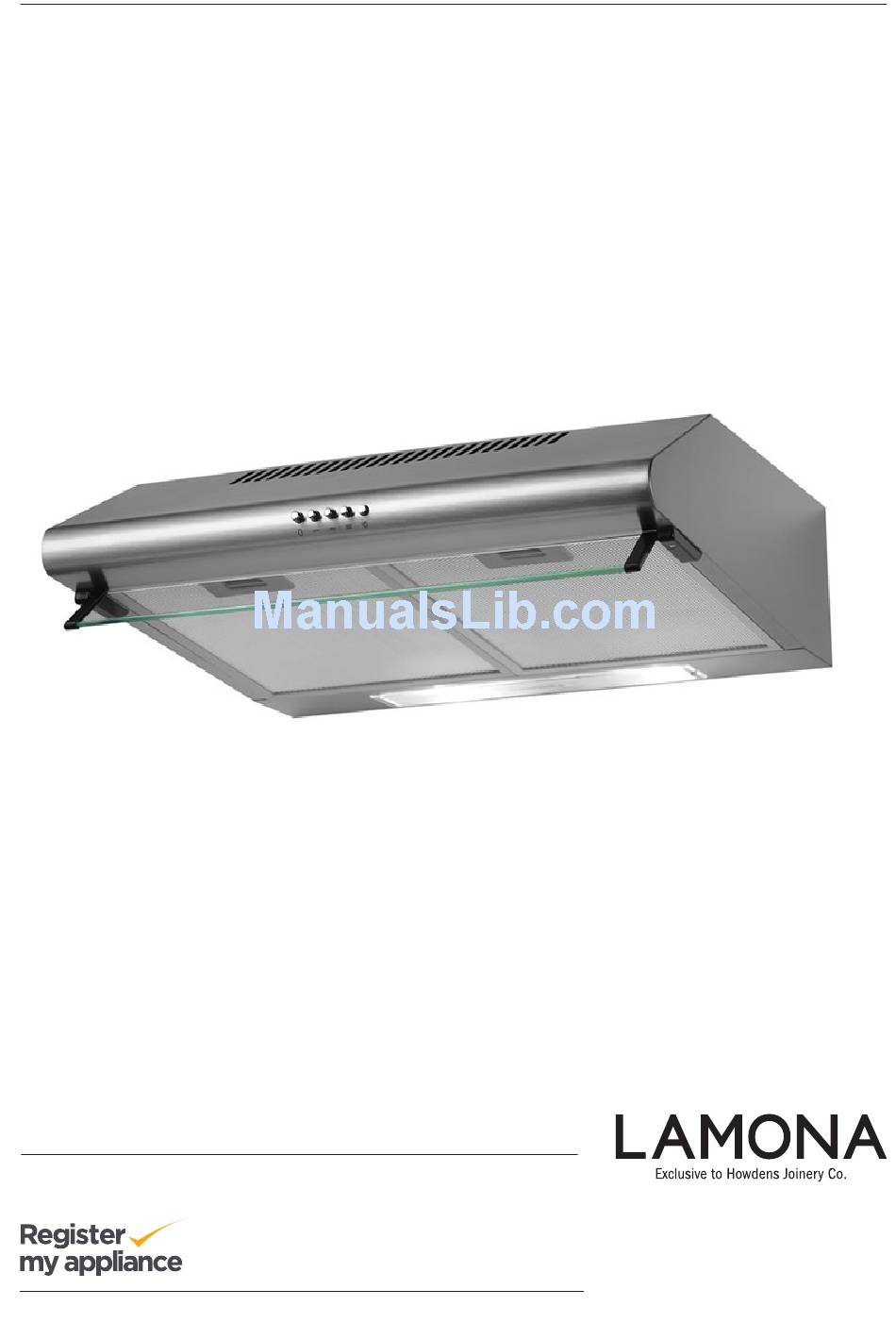

60cm Conventional Extractor LAM2100 User Guide www.howdens.com/appliance-registration... - Page 2 See back page for product serial number...
- Page 3 Dear Customer, Congratulations on your choice of domestic appliance. The user manual will help you use your product quickly and safely. • Please read this user manual before installing and using the oven. • Always follow the safety instructions. • Keep this user manual within easy reach for future reference.
-
Page 4: Table Of Contents
Index Before using the extractor Safety General Fire Safety Safety for Children c i r y t i General Information & Operation Control Panel Layout Using Your Cooker Hood Care and maintenance General Cleaning Grease Filters Carbon Filters Replacing the Lamps Installation Methods of Extraction Extraction Via Ducting... -
Page 5: Before Using The Extractor
Before using the Extractor • Make sure that you have removed all packaging, wrappings, stickers and from the Extractor • It is recommended that you clean the extractor’s surface before using for the time. Safety • Repair procedures must always be performed This appliance is for domestic extraction service agents. -
Page 6: Important Safety Information
Important Safety Information • Please dispose of the packing material • Warning - Always ensure that the extractor carefully – children are especially vulnerable has been disconnected from the power supply to it. before carrying out any work, including replacing light bulbs. -
Page 7: Fire Safety
Important Safety Information Safety when working with • When the hood is being used in extraction mode, ensure that the ducting is retardant electricity and that there are no bends greater than 90 degrees as this will reduce the • In case of any damage, switch off the product the hood. -
Page 8: General Information & Operation
General Information & Operation Extractor Layout Vent Recirculation Select lever position related to the type of install. For vented operation charcoal filters are not used. Control Panel Layout Page _ 8 www.howdens.com... -
Page 9: Using Your Cooker Hood
Using Your Cooker Hood Make sure that it has been installed by a suitably person, as per the installation instructions. To use your cooker hood Light ON/OFF slider 0 = Light off 1 =Light on Speed control slider Low speed Medium speed Ideally you should turn on your hood ten minutes before you start to cook, or at the very least when you... -
Page 10: Care And Maintenance
Care and Maintenance Before cleaning or attempting any type of maintenance, always make sure that the electricity supply is disconnected. The manufacturer declines all liability in cases where the instructions for the appropriate installation, maintenance and use of the extractor hood are not observed. If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call the service number on the rear cover of this booklet or a suitably repairer. -
Page 11: Carbon Filters
Care and Maintenance The Carbon Filters If the appliance is going to be used in recirculation mode when it is necessary to fit carbon filters. This will help absorb odours caused by cooking. Carbon filters have a limited life. We advise you to change them when there is a noticable drop in peformance. The intervals between changing the filter will depend entirely upon the amount of cooking you do, but on average they will last about 3-6 months. -
Page 12: Replacing The Lamps
Replacing the Lamps The extractor hood is with lamps that may need to be replaced periodically. IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LAMP, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE EXTRACTOR FROM YOUR MAINS SUPPLY AND THAT THE APPLIANCE IS COLD. Remove the grease filters (as described on page 10). -
Page 13: Installation
Installation Methods of Extraction The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not need charcoal when using the external ducting mode. -
Page 14: Before Beginning Installation
Before Beginning Installation • Check that the p roduct purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside. -
Page 15: Installation Dimensions
Installation Dimensions 600mm (min) (Minimum 650mm ( See Page 7)) Hob Top Fittings Exclusive to Howdens Joinery.co Page _ 15... -
Page 16: Installing Your Cooker Hood
Installing Your Cooker Hood You will have to decide before installing your cooker hood whether to use it in extraction mode or recirculation mode. e suggest the easiest way of installing the extractor is fastening the extractor to the underside of the wall unit before mounting the wall unit to the wall. - Page 17 Installing Your Cooker Hood Wall Mounted • Remove the grease filters (see page 10) • Hold the hood against the wall in the intended position and mark position of the screw holes that are to be drilled. Using an 8mm diameter drill, drill holes in the wall in these positions. •...
-
Page 18: Electrical Connections
Electrical Connections IMPORTANT: Ensure that the electricity supply is switched off before connecting. Your appliance must be connected to wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, The isolation switch must be accessible after installation. (See technical data for fuse rating). -
Page 19: Technical Specifications
Technical Specification TECHNICAL INFORMATION Dimensions: Total Wattage: 116W Voltage: 220V - 240V 50HZ Width : 600mm Depth : 500mm Height: 150mm Your Cooker Hood is with: Single motor 60W Push button control 3 Speed extraction x2 28W E14 lamps x2 Aluminium grease filters Optional Extras: Charcoal HJA2906... -
Page 20: Your Guarantee
Call the Depot number on your Proof of Purchase Document supplied with the product / kitchen. Call the LAMONA Service Line on 0845 00 60 006 *Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people are using the appliance. - Page 21 Product Fiche Commission Regula on (EU) No 65/2014 Model LAM2100 67 kWh/a 10.9% hood 94.8 hood 80.1m3/h 218 Pa 150.1 m3/h 44.7 W middle 70 dB * Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards.
- Page 22 Product serial number (Place sticker here) ISSUE v1 021216...
