BleBox roller gate User Manual

rollergate
control with μWiFi technology
from any place in the World
INTEGRATED ROLLER GATE CONTROLLER
SAFETY RULES
Do not connect the device to loads exceeding the permitted
values.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not meet
the quality requirements defined by PN-EN 50160, will result in
the loss of the warranty.
Warning! The absence of safety devices connected to the
controller, such as infrared sensors and a sensing edge or warning
signal device, can cause damage to health and property.
The controller connection must be carried out only by persons
with the corresponding electrician's license.
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch off the mains fuse or disconnect the power
cord from the mains socket).
The controller should be installed in a place protected against adverse
environmental conditions. Remember that metallic elements (wires, tubes,
housing parts) have a negative influence on the range of the device, and
consequently the comfort of use. The controller and electric wires must be
fixed permanently to the wall. Due to the operating voltage of the device it
INSTALATION - BASICS

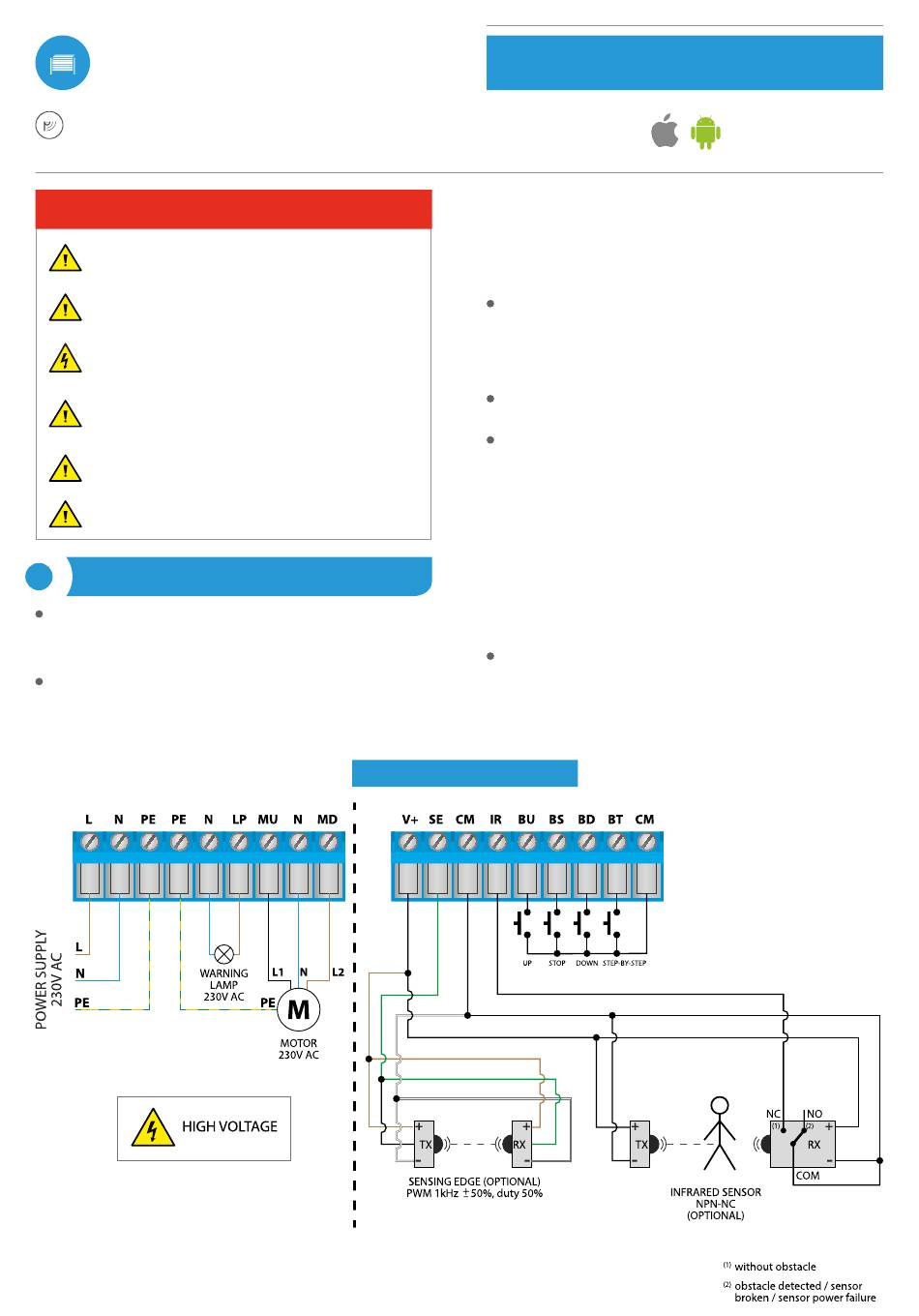

CONNECTION DIAGRAM
user manual
is necessary that the wires are inserted through the rubber glands and the
cable insulation is cutted-out inside the controller housing at a distance of at
least 1 cm from the cable gland. When connecting the wires, make sure that
the insulation along the entire length of the wire is not damaged. The correct
installation must guarantee that all conductive elements are protected
against accidental contacts or short circuits, which may cause an electric
shock or damage to the device.
Read the diagram and then proceed to install the controller. Remove the four
screws which fix the front panel of the controller and then, holding it on
both sides, pull the panel toward you, which will disconnect the strip of pins
in the connector. Pay special attention to the designation of the controller
connectors. Start connecting the power wires: phase L (brown), neutral N
(blue) and the protective earth PE (yellow-green).
Connect the motor wires: phase MU (black) and MD (brown), N neutral (blue)
and the protective earth PE (yellow-green).
It is also possible to connect optional accessories: a warning lamp, additional
wall buttons or a wired remote controller, a sensing edge and an infrared
sensor. The flashing warning lamp, supplied with a voltage of 230 V, must be
connected to the terminals LP and N. The additional monostable pushbuttons
must be connected between the terminal CM and, corresponding, BU
(""open"" button), BD (""close"" button), BS (""stop"" button), BT (""step-by-
step"" button) terminals. The optical rubber sensing edge with PWM output
interface (50%@500..1500 Hz), must be connected to the terminals V+
(brown), SE (green) and CM (white). The detection of an obstacle by the
sensing edge or its failure should result in the loss of the PWM signal at the
SE terminal. The set of infrared beam NPN-NC sensor must be connected
to terminals V+ (power ""+"" of infrared sensor), CM (power ""GND"" of
infrared sensor) and IR (normally closed IR sensor output). The detection of
an obstacle by the infrared sensor or the failure of the photocells (e.g. due to
the damaged wire of the photocell) should cause a break in the IR-CM circuit.
Remove the pinhead from the front panel (if it is in a socket) and insert it into
the socket in the controller board. Holding the front panel of the controller
on both sides, place it carefully and gently to the controller housing, paying
attention to the correct insertion of the pinheads to the socket. Pay attention
that the pins does not move horizontaly during the assembly of the panel.
Tighten gently the four screws that secure the front panel - take care not to
use too much force which could damage the housing.
