BleBox shutterbox User Manual

electric shutter controller
with WiFi technology
TAKE CARE ABOUT THE SAFETY AND COMFORT OF YOUR FAMILY – OPEN AND CLOSE
THE ELECTRIC SHUTTER STRAIGHTWAY FROM YOUR MOBILE PHONE
SAFETY RULES
Do not connect the device to loads exceeding the permitted
values.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned o ,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not
meet the quality requirements de ned by PN-EN 50160, will
result in the loss of the warranty.

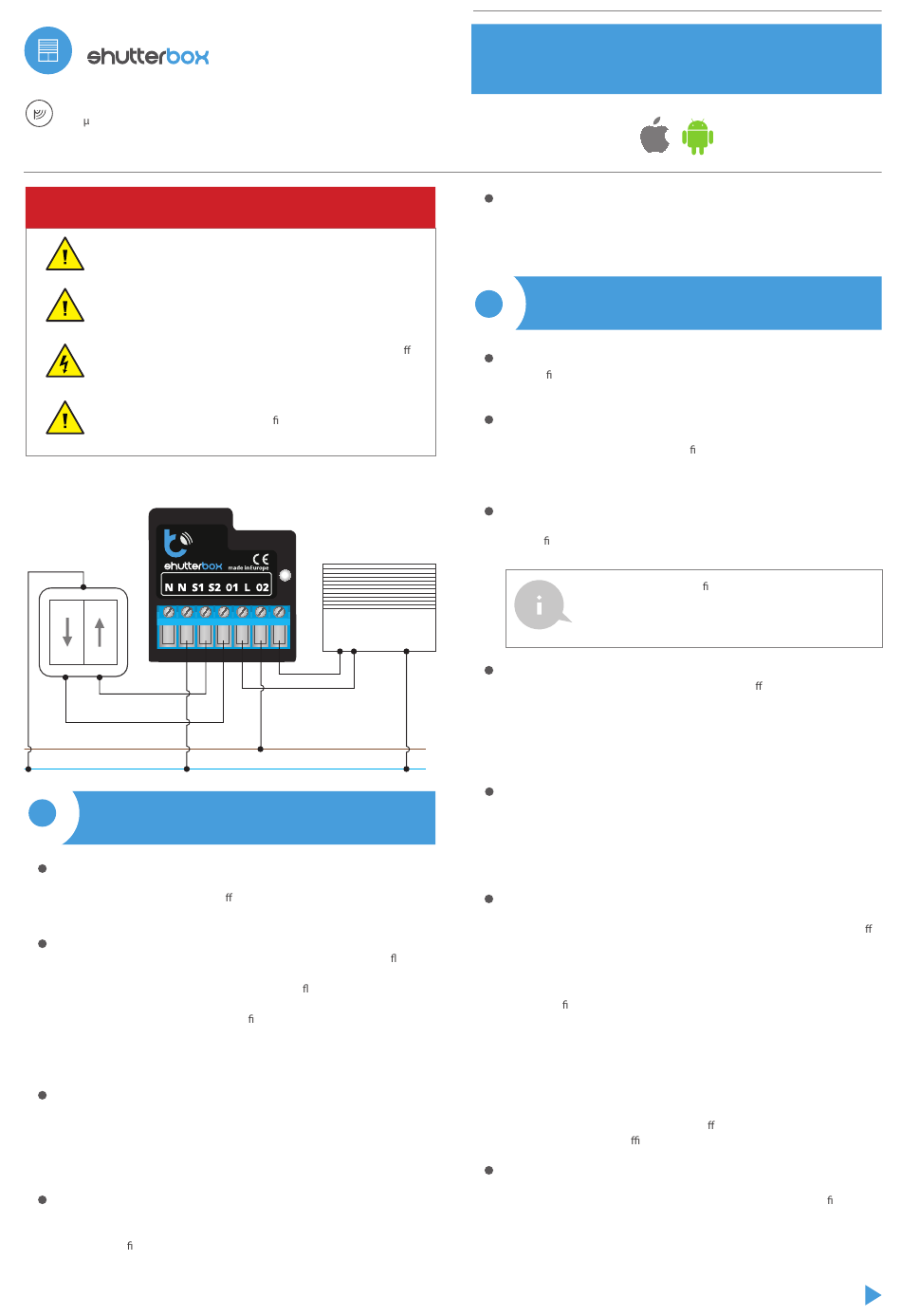

CONNECTION DIAGRAM
button

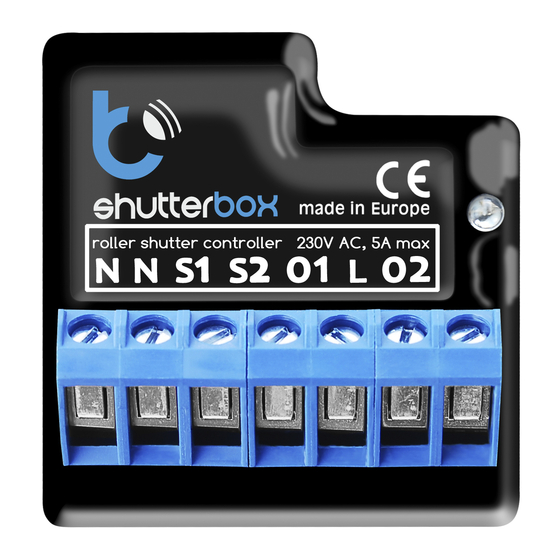

roller shutter controller 230 V AC, 5A max
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch o the mains fuse or disconnect the power
cord from the mains socket).
The controller should be installed in a place protected against adverse
environmental conditions, protected from third party access - in the ush box
or inside the enclosure of the controlled device. Remember that metallic
elements (wires, housing parts) have a negative in uence on the range of the
device, and consequently the comfort of use. It is recommended that the
device be mounted in a stable and xed position. Due to the operating
voltage of the device it is necessary that the connectors of the controller be
protected against accidental contacts or short circuits, which could cause
electric shock or damage to the device.
Read the diagram and then proceed to install the controller. Pay particular
attention to the designation of the controller connectors. Start with power
wires - phase L (usuallybrown) and neutral N (blue). Then, connect the load. If
you only want a local control with a wall switch, connect the wall push-button
according to the diagram. To control using only your phone or Tablet, it is not
necessary to install the wall push-button.
The controller supports all types of double monostable push-button. The
order of connection of the S1 / S2 input, to the right / left push-button does
not matter at the installation stage - it can be set at a later stage of the
controller con guration.
electric shutter
INSTALLATION - BASICS
User manual
After making sure that the device is connected in accordance with the
diagram and that there are no metal components near the controller which
may accidentally cause short-circuit, start the device by turning on the power
(turning on the mains fuse or connecting the power cord to the power outlet).
2
Download the free wBox application. If you have an Android mobile device,
you will nd the application in the Play Store. For iOS devices the application
is in the App Store.
By using your mobile phone or tablet, connect it to the device wireless
network. To do this, enter to your smartphone or tablet settings, then go to
setting of the WiFi network and
-xxxxxxxxxx" where xxxxxxxxxx is the serial number of the device. Connect to
this network.
Turn on the wBox application. A device will appear at the top of the screen. To
add it to the application, click on "plus" on the right side of the name. To
pre-con gure the controller, click on the default device name.
You can also set the con guration using the web browser
of your phone / tablet. After connecting to the wireless
network of the controller, turn on the browser and go
website www.blebox.eu
Test the controller's work by clicking on the arrow near to the area showing
the window. If the electric shutter is moving in a di erent direction than you
suppose, go to „Settings" (icon at the top-right corner of the screen) and select
"Enable" in the "Move direction swap" option. Remember to save your
settings by clicking the "Save" button, then go to the main panel by clicking
L
the arrow at the top-left corner of the screen. Check again whether the shutter
moves as expected.
N
If you have connected the wall push-button, check its work. Single pressing of
the "down" button / "up" button, will cause that the roller shutters moves in
the desired direction to the end position. If the electric shutter goes in the
opposite direction to the expected, select "Enable" in the "Inputs swap"
option. When the electric shutter is moving, pressing any of the wall switches
causes that the shutter will stop immediately.
The next step is to select the type of roller shutter to be controlled - in settings
under "Control type", select one of the options: "Roller shutter", "window
opener", "Material shutter", "Awning" or "Screen". The individual options di er
by the control algorithm (among others, the conversion of the set position to
the time of movement) and the icon on the control screen. The "tilt shutter"
option is designed for controlling tilt shutters with steerable louver rotated by
a single motor. After selecting this option, it is also necessary to set an
additional eld "Time of maximal rotation of louvers in milliseconds"
(suggested value approx. 1100 ms). This is the time in which the louvers will
be in the maximum angle of rotación before the shutter starts rolling - thanks
to this, the control screen can be used to adjust both the position of the blind
and the additional scrollbar, for the angle of the louvers. If you have an
unusual engine, select the "Without positioning" option. Specify also the
maximum time of movement which is needed for the transition between end
positions - this is the time in which the controller gives voltage to the roller
motor (it is not recommended to turn o the move timeout). A suggested
value of 120 seconds is su cient for most motors.
If the controlled electric shutter have a mechanical limit switch, is possible the
control to a certain point. To use this feature, calibrate the controller by
clicking the "Auto calibration" button. Once the procedure is con rmed, the
electric shutter will open to the upper limit switch position, then will close to
the lower limit switch position and then will open again to the upper limit
switch position. During the calibration, do not perform any action. To check
FIRST START
nd the network name „shutterBox-
