BleBox shutterbox DIN User Manual

shutterbox
control with μWiFi technology
from any place in the World

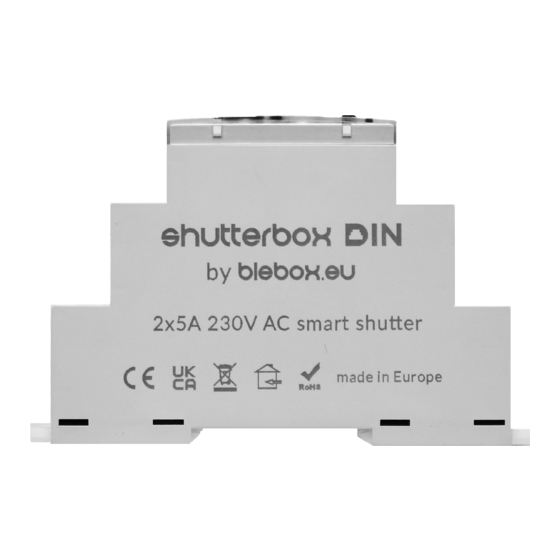

WIRELESS CONTROLLER FOR ROLLER SHUTTERS 230V, DIN RAIL MOUNT
ability to control by voice commands
with Amazon Alexa and Google Home
SAFETY RULES
Do not connect the device to loads exceeding the permitted
values.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not meet
the quality requirements defined by PN-EN 50160, will result in
the loss of the warranty.
Protect the power circuit with overcurrent protection.
1
Disconnect the installation
controller. Remember that any mounting works should be carried
out when the mains voltage
mains fuse or disconnect the power cord from the mains socket).
The controller should be installed on the DIN rail, protected from third party
access - in the flush box or inside the enclosure of the controlled device.
Remember that metallic elements (wires, housing parts) have a negative
influence on the range of the device, and consequently the comfort of use. It
is recommended that the device be mounted in a stable and fixed position.
Due to the operating voltage of the device it is necessary that the connectors
of the controller be protected against accidental contacts or short circuits,
which could cause electric shock or damage to the device.

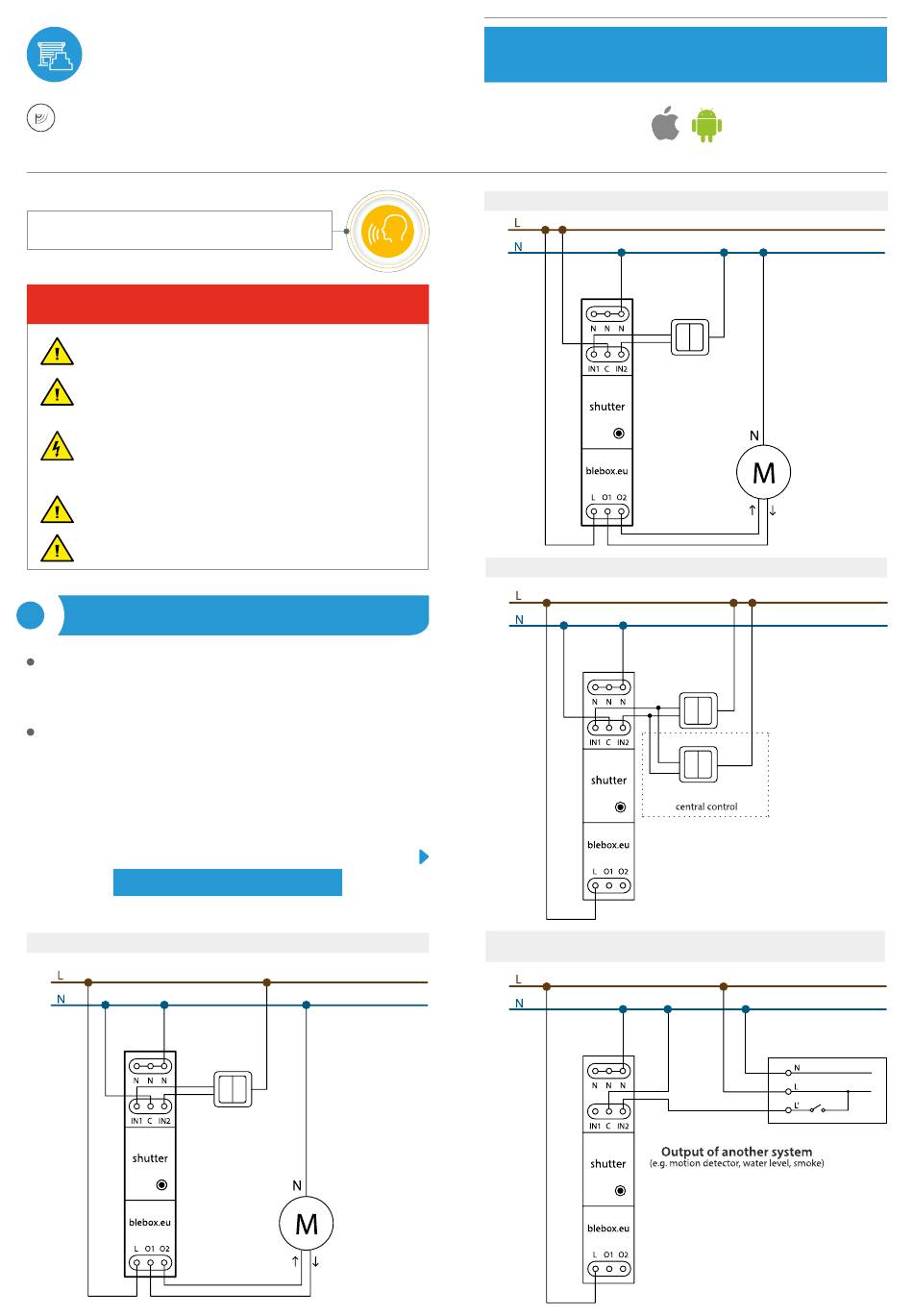

CONNECTION DIAGRAMS
1. General connection - common neutral wire
DIN
INSTALLATION - BASICS
supply voltage before installing
is disconnected (switch off
2. General connection - common phase wire
3. Connecting the central control
the
the
4. Connection of sensors with a relay output
(e.g. motion detector, smoke detector, water level detector)
user manual
