BleBox windsensor PRO User Manual

windsensor
sterowanie w technologii μWiFi,
z dowolnego miejsca na świecie

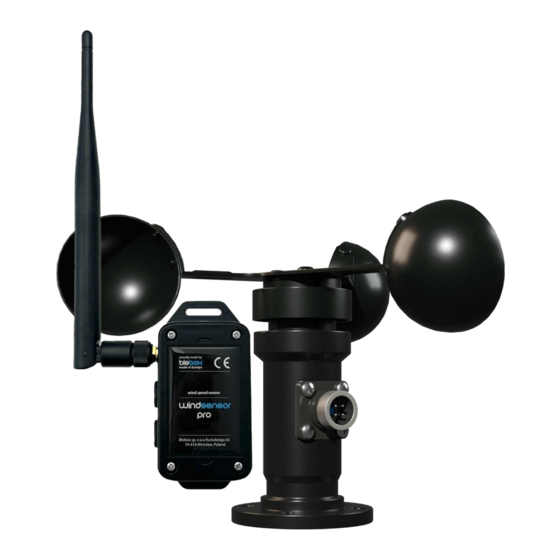

WIRELESS WIND SENSOR CONTROLLER WITH EXTERNALL ANTENNA
SAFETY RULES
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned off,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
The installation of the device to a power mains that does not meet
the quality requirements defi ned by EN 50081-1, EN 50082-1,
UL508, EN 60950, will result in the loss of the warranty.
1
Disconnect supply voltage circuit before installing the controller. Remember
that any mounting works should be carried out when the main voltage is
disconnected (switch off the mains fuse or disconnect the power supply from
the socket).
The controller should be installed in a place protected against accidential
destroyment. It is not allowed to install the device in a place exposed to
contact with oils, liquid fuels, solvents and caustic substances, as well as in
places exposed to the direct action of high temperatures. Remember that
metallic elements (wires, large fitting elements) have a negative influence
on the range of the device, and consequently the comfort of use. It is
recommended that the device be mounted in a stable and fixed position with
the antenna upside. When installing the device outside of dry rooms, pay
special attention to provide tightness of the rubber cable glands.
The wind speed sensor is watertight, place it on an arm suitable for the
expected wind load. The rotational speed is measured digitally, however, it
is not recommended to extend the original sensor cable excessively because
the induced interference may cause incorrect operation of the controller and
even damage it.
Connection order (colors from left to right):
- black, red, blue
PRO
INSTALLATION - BASICS

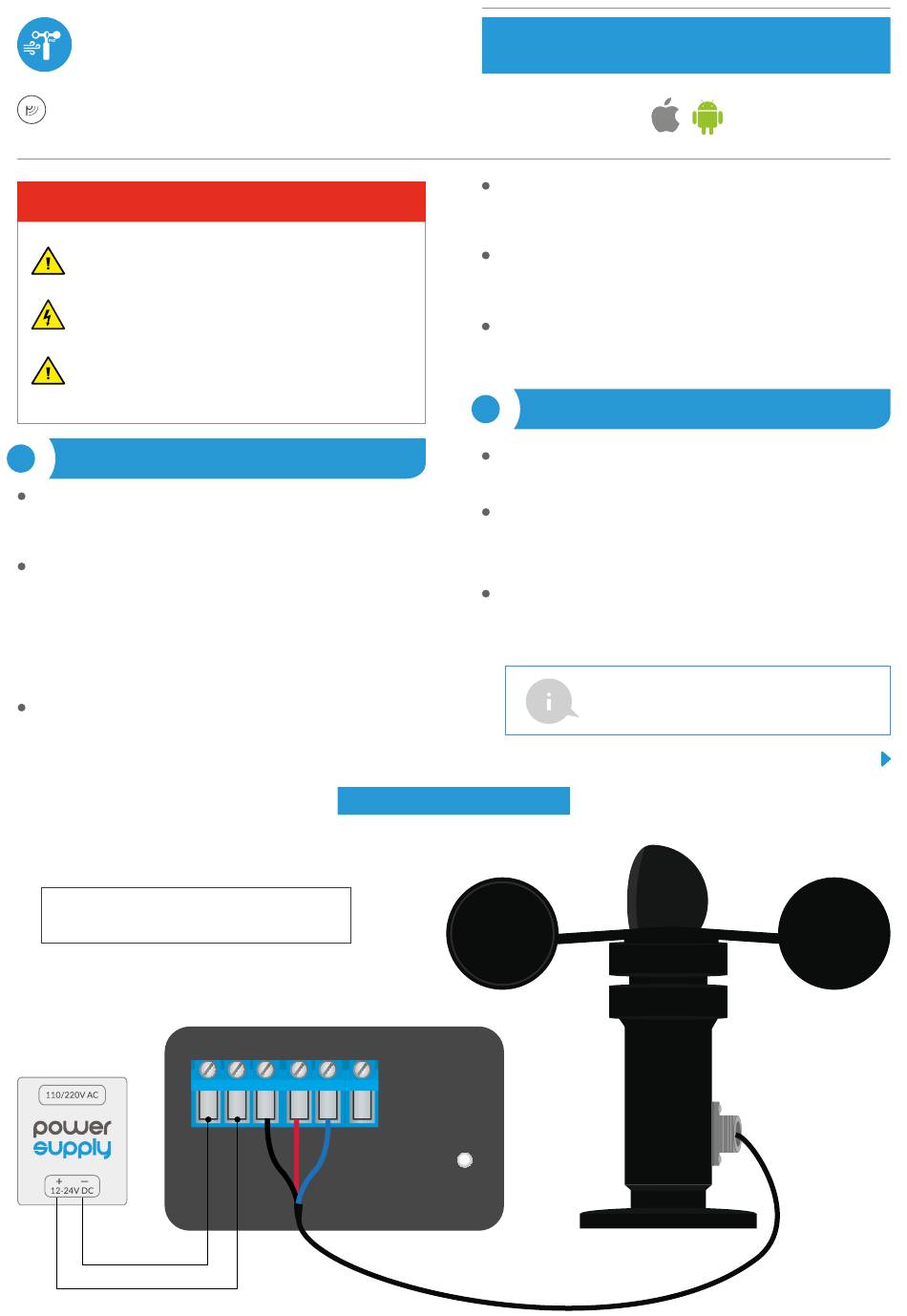

CONNECTION DIAGRAM
V- V+ S- S+ SD
user manual
Read the diagram and then proceed to install the controller. Pay particular
attention to the designation of the controller connectors. Start by connecting
(from left) the GND (black) and power wires from 12V to 24V DC (red or
black with a white dotted line).
Than connect the external temperature probe, in the order of wire colors
(from left): black, red and blue. The last connector, on the far right, must
be left unconnected, it has been designed to allow the expansion of the
capabilities of the product and is currently not used.
After making sure that the device is connected in accordance with the
diagram and that there are no metal components near the controller which
may accidentally cause short-circuit, start the device by turning on the power
(turning on the mains fuse or connecting the power cord to the power outlet).
2
Download the free wBox application. If you have an Android mobile device,
you will find the application in the Play Store. For iOS devices the application
is in the App Store.
By using your mobile phone or tablet, connect it to the device wireless
network. To do this, go to your smartphone or tablet settings, then go to
setting of the WiFi network and find the network name „windSensor_PRO-
xxxxxxxxxx" where xxxxxxxxxx is the serial number of the device. Connect
to this network.
Turn on the wBox application. You will see your device on the main screen.
In order to add it to your application account, select "Add device to account".
If you are the installer and do not want to assign the device to your account,
select "Use only once".
You can also set the configuration using the web
browser of your phone / tablet. After connecting to the
wireless network of the controller, turn on the browser
and go website www.blebox.eu
FIRST START
