BleBox wLightBox User Manual

LED controller
with WiFi tecnology
FIRST LED RGBW CONTROLLER BASED ON THE µWiFi TECHNOLOGY
SAFETY RULES
Do not connect loads with more than permissible power.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned o ,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
Connecting the device to a power supply that does not meet the
quality requirements speci ed in EN 50081-1, EN 50082-1, UL508,
EN 60950 will invalidate the warranty.
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch o the mains fuse or disconnect the power
cord from the mains socket).

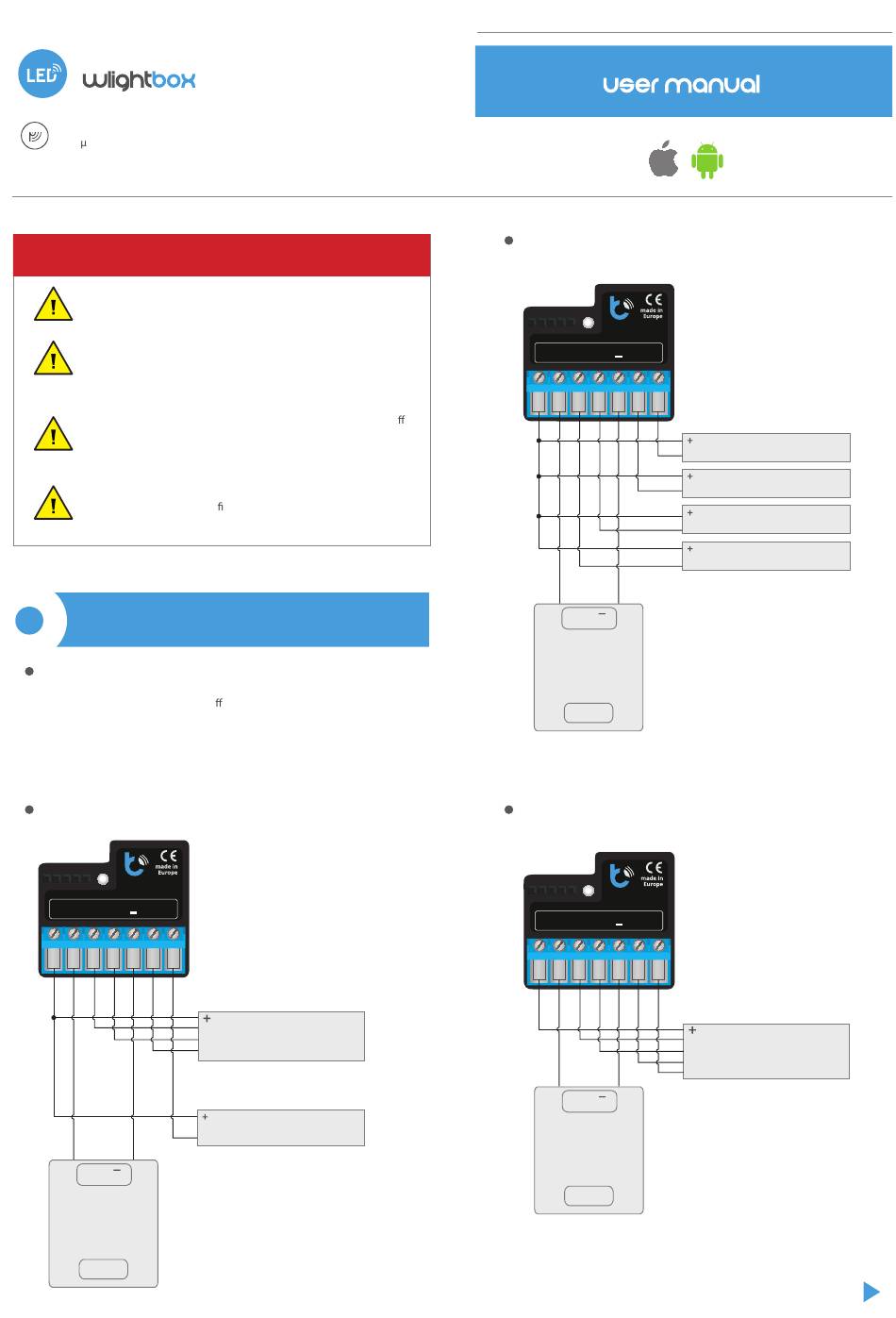

CONNECTION DIAGRAMS
wLightBox + LED RGB strip + 1-color LED strip (white color)
wlightBox
µWiFi LED RGBW controller
12 - 24V max 12A, 3 A channel
_
R G B W
+ +
+
12-24V
power
supply
110 / 230V
INSTALLATION
LED STRIP
R
G
RGB+W max 9A
B
LED STRIP
WHITE max 3A
W
wLightBox + 4 single-channel LED strip
wlightBox
µWiFi LED RGBW controller
12 - 24V max 12A, 3 A channel
_
R G B W
+ +
-
-
-
-
+
12-24V
power
supply
110 / 230V
wLightBox + 4-channel strip
wlightBox
µWiFi LED RGBW controller
12 - 24V max 12A, 3 A channel
_
R G B W
+ +
R
G
B
W
+
12-24V
power
supply
110 / 230V
LED STRIP max 3A
LED STRIP max 3A
LED STRIP max 3A
LED STRIP max 3A
LED STRIP
RGB+W max12A
