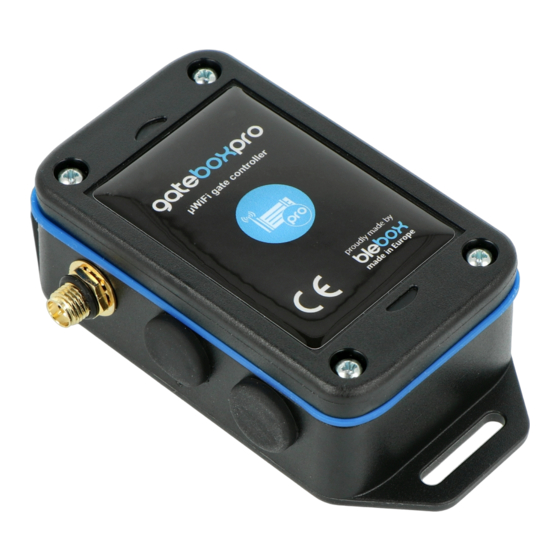

BleBox GateBoxPro User Manual

control with WiFi technology
from any place in the World
GARAGE, SLIDING AND SWING GATES AND DOOR CONTROLLER WITH AN EXTERNAL ANTENNA
SAFETY RULES
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned o ,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
Connecting the device to a power supply that does not meet the
quality requirements speci ed in EN 50081-1, EN 50082-1, UL508,
EN 60950 will invalidate the warranty.
Apply the safety systems described in the PN-EN 13241 standard
de ning the safety requirements and operational requirements
for gates and barriers.

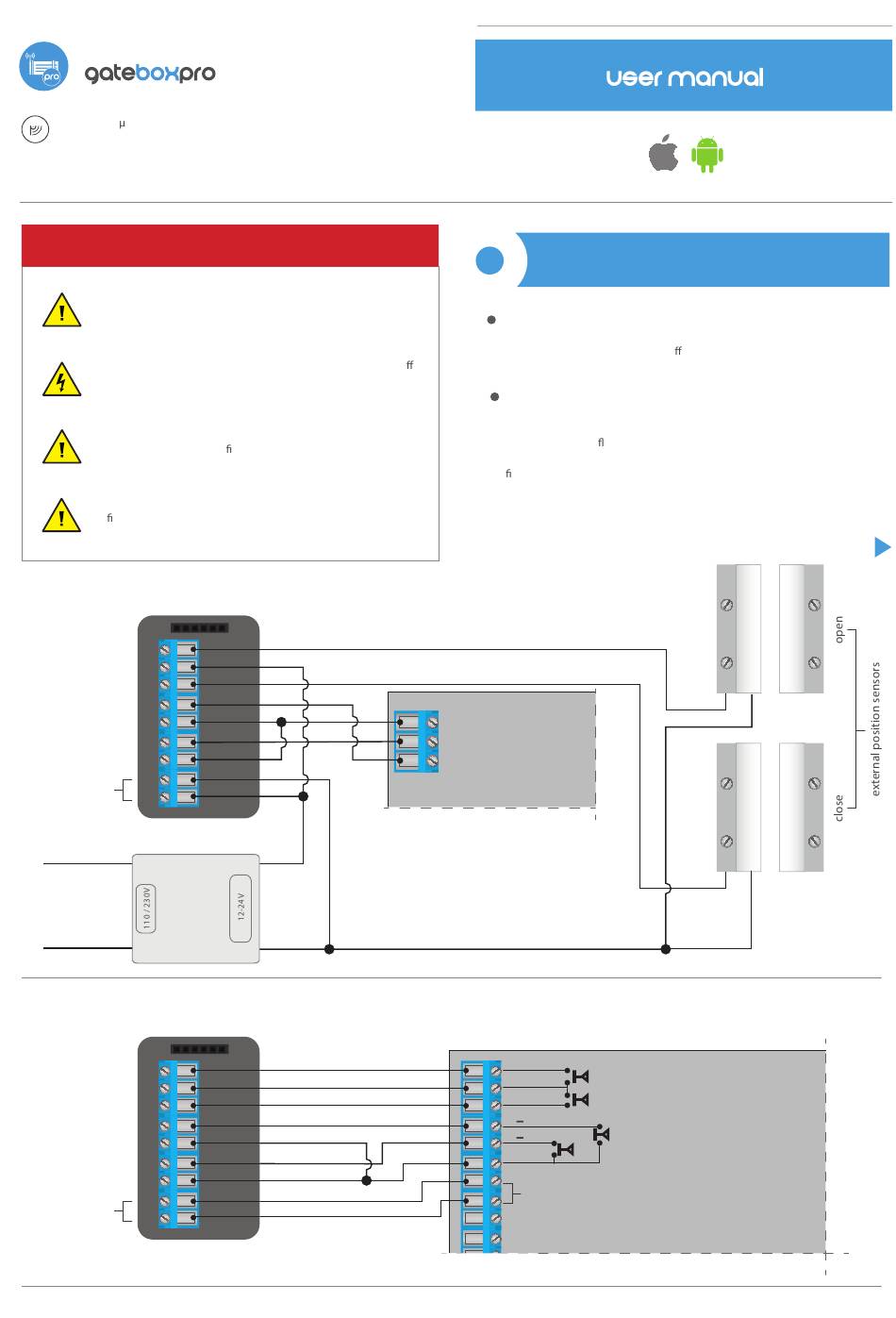

GENERAL CONNECTION DIAGRAM:
input 2
common
input 1
output 2 -
output 2 +
output 1 -
output 1 +
AC/DC
power inputs
power
supply
CONNECTION DIAGRAM TO TIPICAL CONTROL PANEL:
input 2
common
input 1
output 2 -
output 2 +
output 1 -
output 1 +
AC/DC
power inputs
DIAGRAM CONNECTION EXAMPLE OF REEL SWITCH FOR SECTIONAL GARAGE DOORS AND SLIDING GATE - showed at the end of the user guide
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch o the mains fuse or disconnect the power
cord from the mains socket).
The controller should be installed in a place protected against accidential
destroyment, eg. screwed to the fence pole or inside the enclosure of the
controlled device. Remember that metallic elements (wires, housing parts)
have a negative in uence on the range of the device, and consequently the
comfort of use. It is recommended that the device be mounted in a stable and
xed position with the antenna upside. When installing the device outside of
dry rooms, pay special attention to provide tightness of the rubber cable
glands.
common for inputs
P. P. input
STOP N/C input
gate controller board
FCO/SWO/FA open possition input
common for inputs
FCC/SWC/FC close possition input
+
24 V DC for
external accessory
gate controller board
INSTALLATION - BASICS
STOP N/C external button
P. P. N/O external button
common for external buttons
