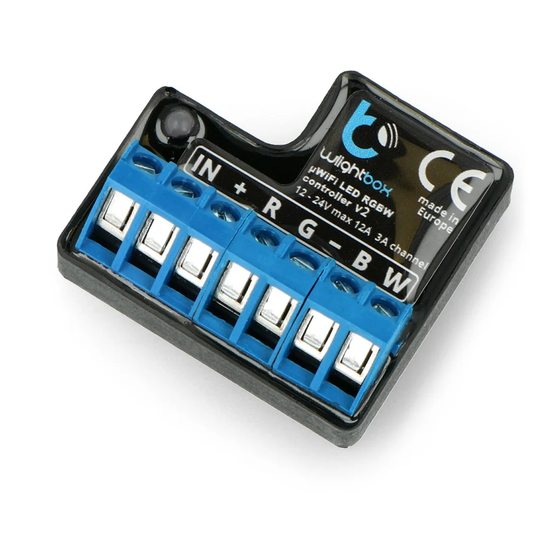

BleBox wLightBox v2 User Manual

control with WiFi technology
from any place in the World
WIRELESS CONTROLLER FOR LED AND LED RGB / RGBW / CT
ability to control by voice commands with
Amazon Alexa and Google Home
SAFETY RULES
Do not connect loads with more than permissible power.
Connect only in accordance with the diagram presented in the
manual. Improper connections may be dangerous, it can damage
the controller, and loss of the warranty.
DANGER! Risk of electric shock! Even with the device turned o ,
the outputs may be live. All assembly work should be ALWAYS
performed with the disconnected power circuit.
Connecting the device to a power supply that does not meet the
quality requirements speci ed in EN 50081-1, EN 50082-1, UL508,
EN 60950 will invalidate the warranty.
1
Disconnect the installation supply voltage before installing the controller.
Remember that any mounting works should be carried out when the mains
voltage is disconnected (switch o the mains fuse or disconnect the power
cord from the mains socket).

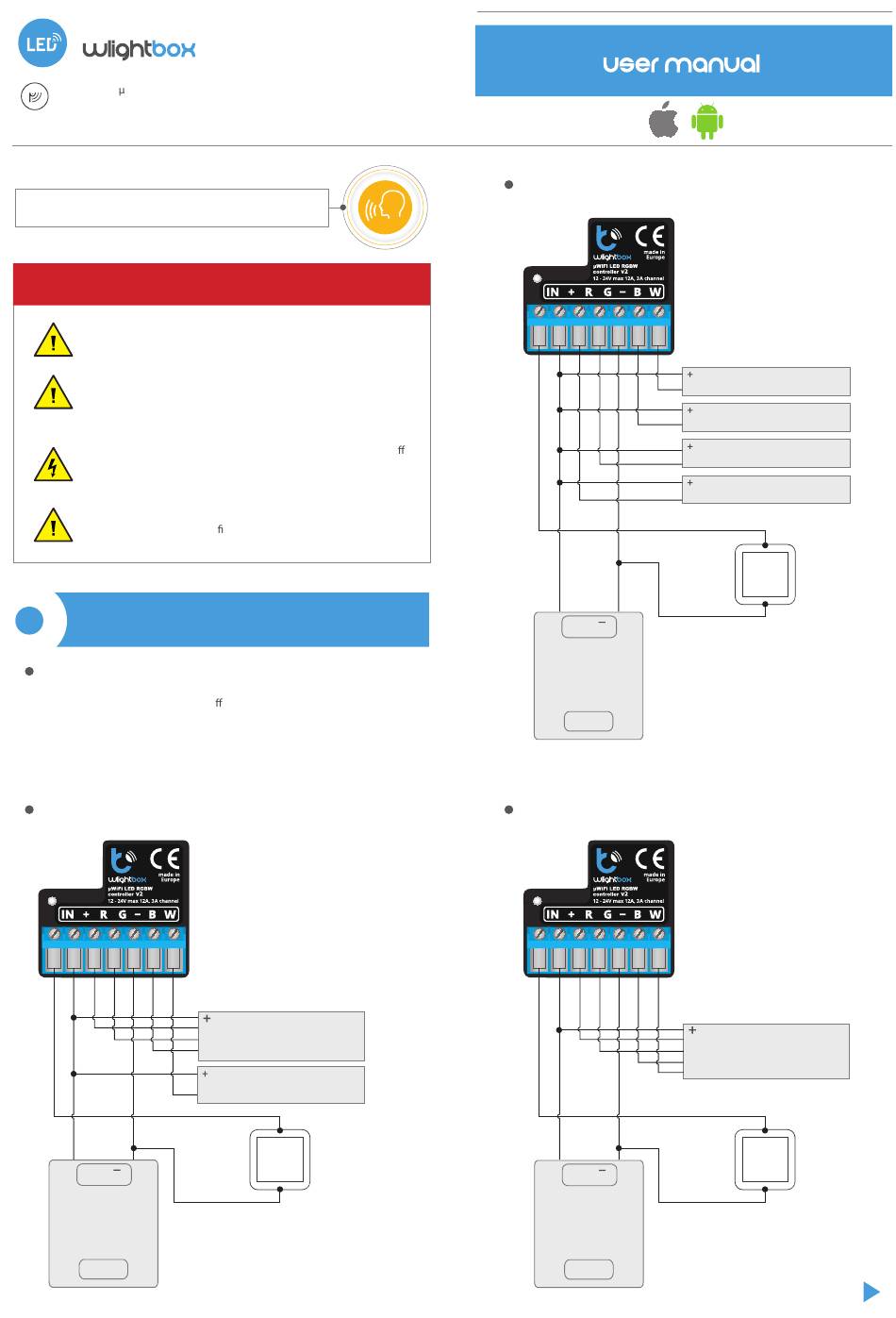

CONNECTION DIAGRAMS
wLightBox v2 + RGB LED strip + 1-channel LED strip (white color)
+
12-24V
power
supply
110 / 230V
v2
INSTALLATION
R LED STRIP
G
RGB max 9A
B
LED STRIP
WHITE max 3A
W
button
wLightBox v2 + 4 single-channel LED strip
-
-
-
-
+
12-24V
power
supply
110 / 230V
wLightBox v2 + 4-channel RGBW LED strip
R
G
B
W
+
12-24V
power
supply
110 / 230V
LED STRIP max 3A
LED STRIP max 3A
LED STRIP max 3A
LED STRIP max 3A
button
LED STRIP
RGB+W max12A
button
