- Page 1 QUICK START GUIDE MIMXRT1160-EVK MIMXRT1160-EVK Evaluation kit for the i.MX RT1160 MCU 600 MHz Arm Cortex -M7 and 240 MHz Cortex-M4 cores ® ®...

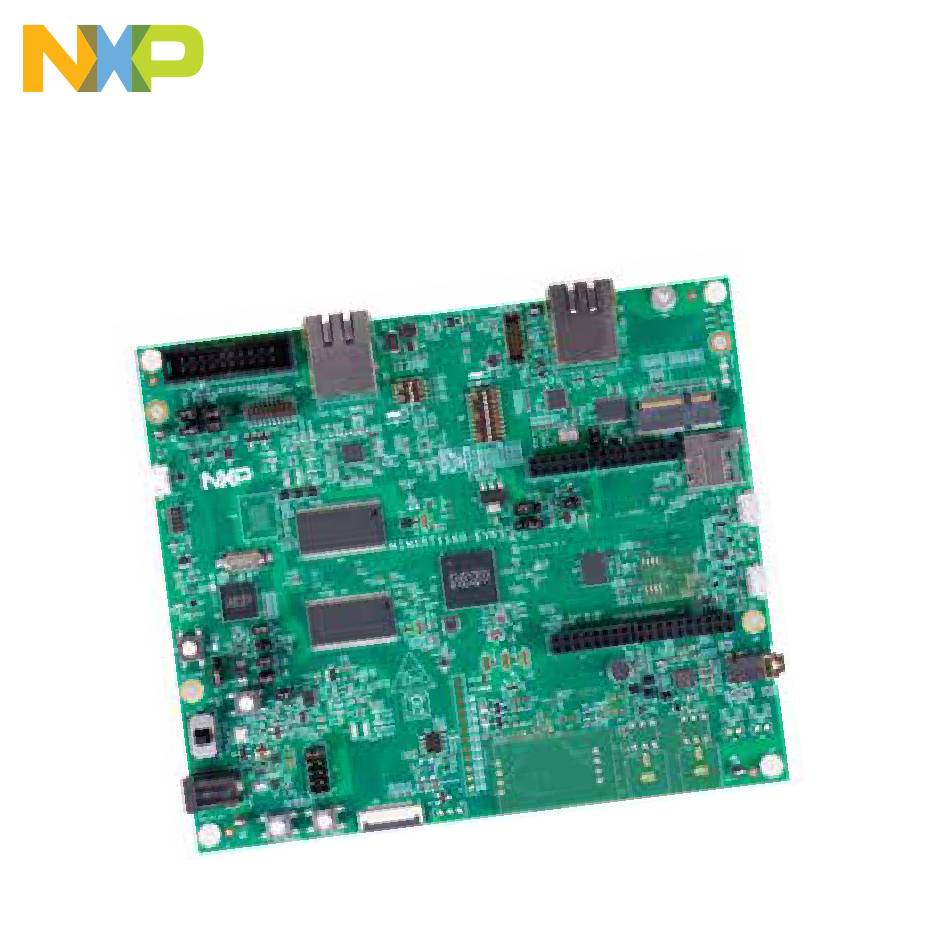

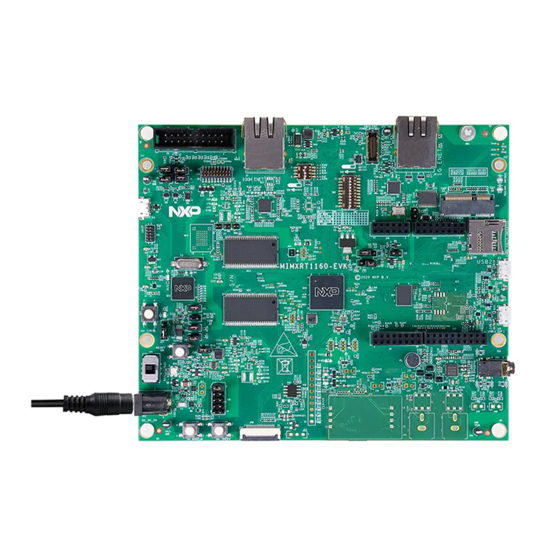

- Page 2 GET TO KNOW THE MIMXRT1160-EVK 10/100M 10/100M Camera Module Camera Module ENET ENET JTAG + JTAG + JTAG JTAG Connector Connector Trace Trace Boot Boot 10/100/1000M 10/100/1000M Switch Switch ENET ENET M.2 Socket M.2 Socket Debug USB Port Debug USB Port...
- Page 3 QUICK START GUIDE MIMXRT1160-EVK GET TO KNOW THE MIMXRT1160-EVK CONTINUED MIPI LCD Connector MIPI LCD Connector QSPI Flash QSPI Flash Figure 2: MIMXRT1160-EVK Board Back Callouts...
- Page 4 GETTING STARTED 1. Plug the power adapter wire into the MIMXRT1160-EVK board 5 V DC IN header (J43) and switch on 5 V DC IN (SW5). 2. The MIMXRT1160-EVK board comes preprogrammed with a demo that will initiate the LED on the board to flash periodically when plugged in.
