- Page 1 QUICK START GUIDE MIMXRT1024-EVK Evaluation kit for the i.MX RT1024 MCU Cortex -M7 core at 500 MHz ® ® 4 MB flash, 256 KB RAM...

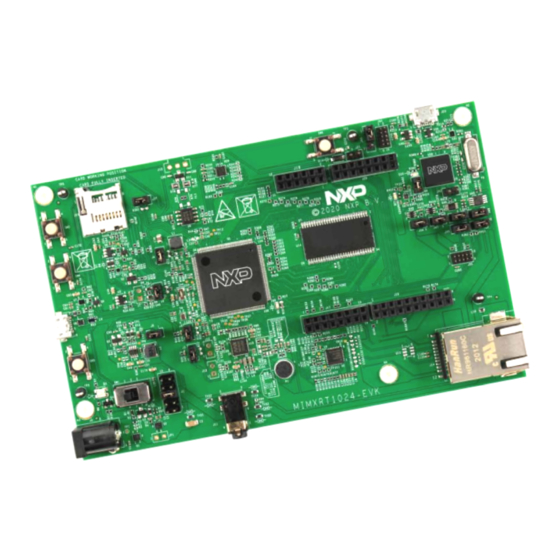

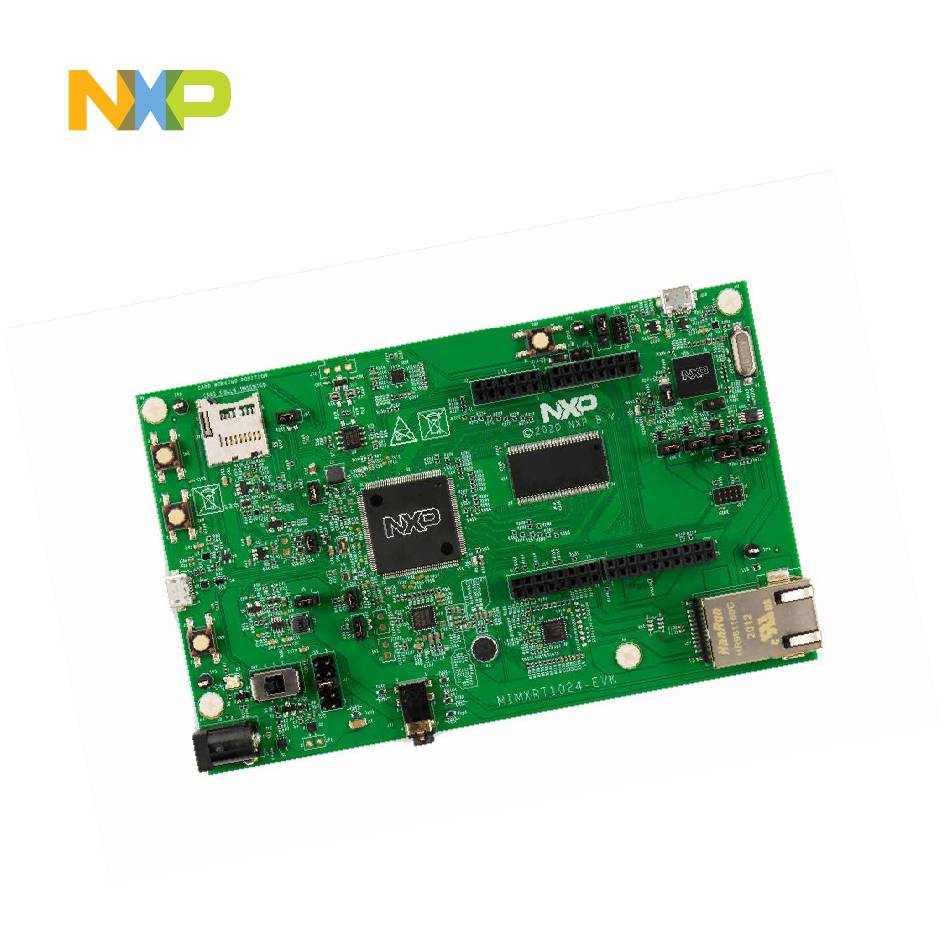

- Page 2 GET TO KNOW THE MIMXRT1024-EVK Debug USB Debug USB SD Slot SD Slot Arduino Arduino and Motor and Motor ® ® ON/OFF ON/OFF Control Interface Control Interface User button User button SDRAM SDRAM i.MX RT1024 i.MX RT1024 USB OTG USB OTG...
- Page 3 QUICK START GUIDE MIMXRT1024-EVK HOW TO GET STARTED 1. Connect the MIMXRT1024-EVK board to a PC using the included micro USB cable to USB connector J23. 2. The MIMXRT1024-EVK board comes preprogrammed with a demo that will initiate the LED on the board to flash when plugged in.
- Page 4 GET STARTED Download installation software www.nxp. and documentation at com/MIMXRT1024-EVK. SUPPORT Visit www.nxp.com/support for a list of phone numbers within your region. WARRANTY Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/MIMXRT1024-EVK NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
