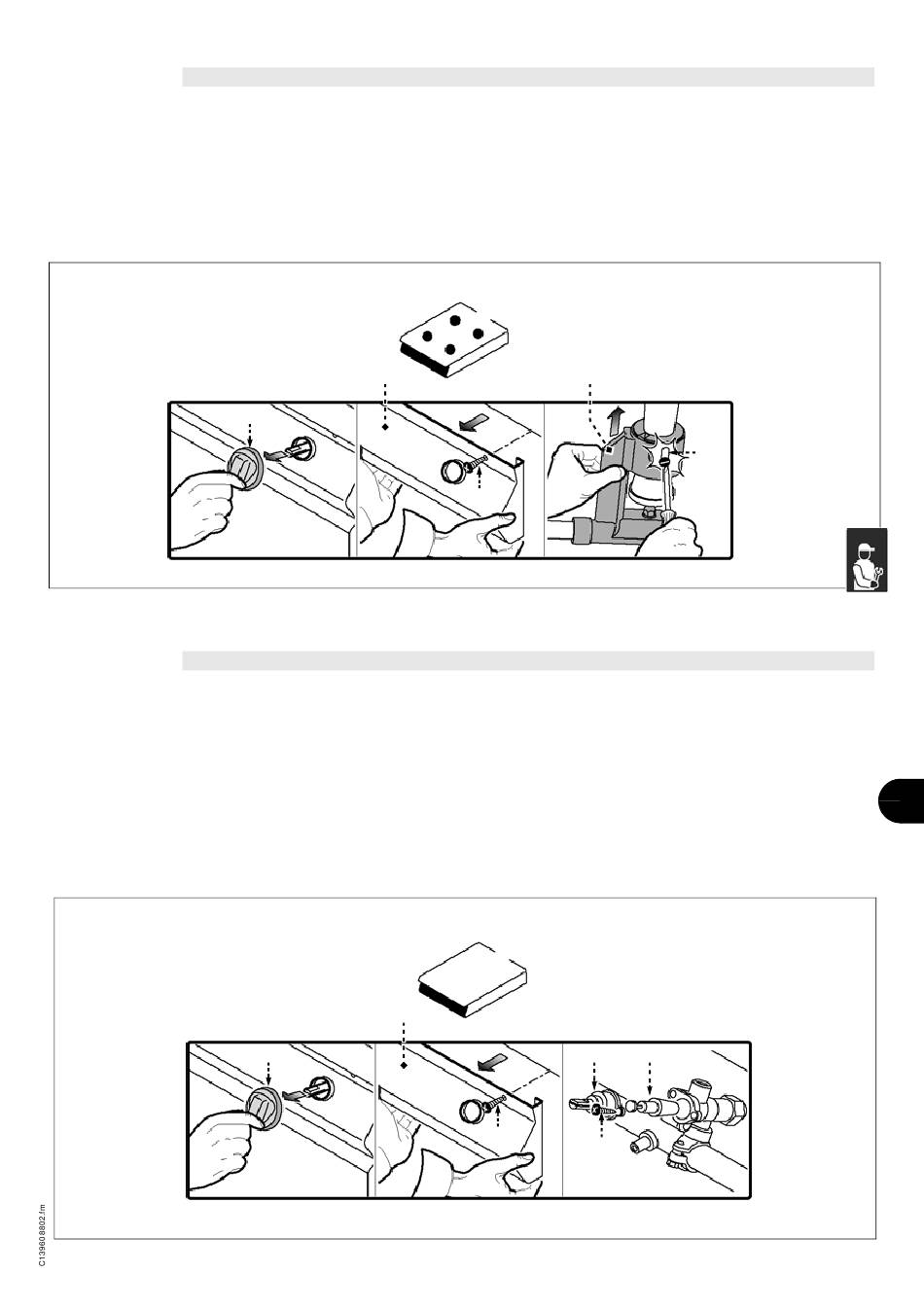

ADJUSTING TOP BURNER PRIMARY AIR
To carry out this operation, proceed as follows.
1 - Turn off the gas supply tap.
2 - Pull off the knob (A).
3 - Undo the screws (C) and remove the control
panel (B).
GREASING THE GAS TAP
To carry out this operation, proceed as follows.
1 - Turn off the gas supply tap.
2 - Pull off the knob (A).
3 - Undo the screws (C) and remove the control
panel (B).
4 - Undo the screws (D) and extract the cap (E).
5 - Pull off the cone (F).
6 - Clean the cone (F) and its seat.
B
A
B
A
4 - Undo the screw (D) and lift the burner support
(E) as far as it will go.
5 - Tighten the screw (D) and restore the initial
conditions when the operation is complete.
E
C
7 - Coat the cone with grease (F), fit it in its seat
and turn it a few times.
8 - Pull off the cone (F) to remove the excess grease.
9 - Replace the cone (F) and the cap (E).
10 - Replace the control panel (B) and the knobs (A)
on completion of the operation.
E
C
D
- 17 -
D
IDM-39608800700.tif
F
IDM-39608800800.tif
