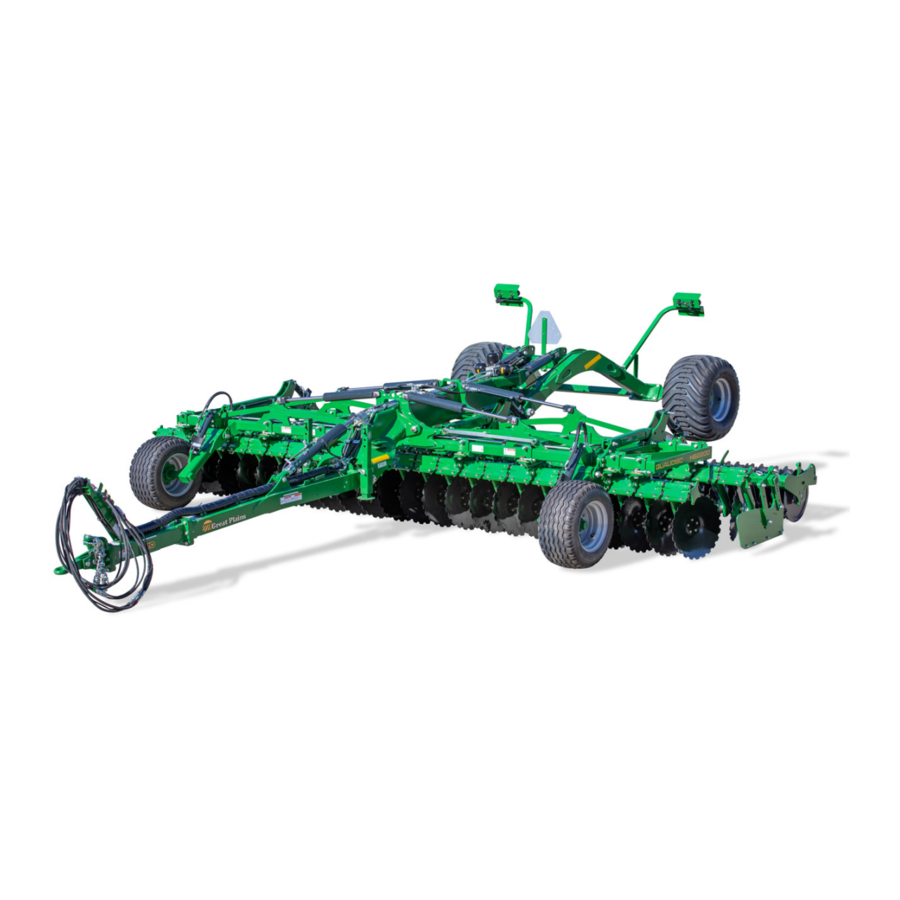

Pre-Delivery Manual
HS2200-13, HS2200-16, HS2200-20 & HS2200-23
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2022
Qualidisc
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2022-05-09
EN
556-436Q

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Qualidisc HS2200-13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GREAT PLAINS Qualidisc HS2200-13

Summary of Contents for GREAT PLAINS Qualidisc HS2200-13

  • Page 1 Pre-Delivery Manual Qualidisc HS2200-13, HS2200-16, HS2200-20 & HS2200-23 Manufacturing, Inc. www.greatplainsmfg.com Read the operator’s manual entirely. When you see this symbol, the subsequent instructions and warnings are serious - follow without exception. Your life and the lives of others depend on it! Illustrations may show optional equipment not supplied with standard unit.
  • Page 2 HT1100-20 - HT1100-30 Great Plains | 556-436Q...

  • Page 3: Table Of Contents

    Great Plains Manufacturing, Inc. assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Great Plains Manufacturing, Inc. reserves the right to revise and improve its products as it sees fit.

  • Page 5: Important Safety Information

    Important Safety Information Important Safety Information Look for Safety Symbol The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it.
  • Page 6 Keep Riders Off Machinery Riders obstruct the operator’s view. Riders could be struck by foreign objects or thrown from the machine.  Never allow children to operate equipment.  Keep all bystanders away from machine during operation. Great Plains | 556-436M...
  • Page 7 Important Safety Information Check for Overhead Lines The Qualidisc requires at least HS2200-13: 6 feet 7 inches (2.1 m) HS2200-16 - 23: 13 feet 1 inch (4.0 m) vertical clearance in transport. Contacting overhead electrical lines can introduce lethal voltage levels on Qualidisc and tractor frames.
  • Page 8  Do not stand between the tractor and Qualidisc during hitching.  Keep hands, feet and clothing away from moving parts.  Watch out for wires, trees, etc., when folding and raising Qualidisc. Make sure all persons are clear of working area. Great Plains | 556-436M...
  • Page 9 Important Safety Information \ WARNING Use the correct screw and bolt tightening torques Securely tighten screws, nuts and boles to the specified torques. Otherwise, damages to the machine and serious or fatal injuries may be caused as a result. Note the strength class specification for screws, nuts bolts to the specified values, provided that no other and bolts.

  • Page 10: Required Tools

    HS2200-13 - HS2200-23 Required tools Great Plains | 556-436M...

  • Page 11: Elements Of The Machine

    Important Safety Information Elements of the machine Main frame and wheel wagon Drawbar Folding frame 5/9/2022...
  • Page 12 HS2200-13 - HS2200-23 Left inner front discs row Right inner front discs row Left inner rear discs row Right inner rear discs row Great Plains | 556-436M...
  • Page 13 Important Safety Information Left outer front discs row Right outer front discs row Left outer rear discs row Right outer rear discs row Roller arm Extension 5/9/2022...
  • Page 14 HS2200-13 - HS2200-23 Roller Leveling fingers harrow Safety chain Front depth control wheel Great Plains | 556-436M...

  • Page 15: Axle Assembly

    Important Safety Information Axle assembly Image Reference Description Model Tyre Rec. pressure Transportation 3 bars 480/45x17 KG00366661 M20x70 wheels Wide model (44 PSI) Transportation 3.3 bars wheels 520/50x17 KG01068161 Lock nut M20 (48 PSI) Extra-wide model RF17179 Nut M18x150 270 N.m 200 ft.bf See the table above...

  • Page 16: Draw Bar Assembly

    HS2200-13 - HS2200-23 Draw Bar Assembly Image Reference Description Lock nut RF23915 Drawbar RF25853 axle Do not tighten Screw until the nut comes in contact with the main frame. Great Plains | 556-436M...

  • Page 17: Hoses Holder Assembly

    Important Safety Information Hoses holder assembly Drawbar Image Reference Description KG00471761 M8 x16 KG01067561 Lock nut M8 Hoses position on the drawbar Letter Reference Description RF29235 Hyd. hose 4.80M Note: All GP Qualidisc models are drawbar attached. For tractors with 3-pt hitch and quick hitch attachments, mount the hose holder far enough back to clear hitch when turning (usually second set of mounting holes).

  • Page 18: Parallel Lifting Kit Assembly

    HS2200-13 - HS2200-23 Parallel lifting kit assembly Image Reference Description KG01191962 Tension pin 8x45 Pin diam.30 RF1368061 LG118 RF22033 Washer diam. 30.5 Great Plains | 556-436M...

  • Page 19: Hitch

    Important Safety Information Hitch Image Reference Description KK016025 Lock nut m16 KK032770 Hex bolt m16 5/9/2022...

  • Page 20: Mounting Folding Wing Frames

    Hex. bolt m14x80 RF2577861 Articulation axle KG00356061 Hex. bolt m10x80 RF2716661 Cylinder pin Washer ø60 / ø40 KG01067661 Lock nut m10 RF3063661 lg 12 KG01067861 Lock nut m14 RF31170 Lock nut m36 KG01191962 Tension pin 8x45 Assembly Great Plains | 556-436M...
  • Page 21 Important Safety Information Do not tighten Screw until the nut comes in contact with the main frame. 5/9/2022...

  • Page 22: Result

    HS2200-13 - HS2200-23 Result Great Plains | 556-436M...

  • Page 23: Wing Extensions

    Important Safety Information Wing Extensions  These extensions are not available on 4M00 (13’1”) machines. Parts Image Reference Description Width Left extension Right extension HS2200-16 - A135875741 A135481691 16’4” KK016025 Lock nut m16 HS2200-20 - A135875741 A135481691 19’8” KK032710 Hex bolt m16x155 HS2200-23 - A135481991 A135481891...

  • Page 24: Disc Rows

    HS2200-13 - HS2200-23 Disc Rows Necessary tools  Make sure you have a lifting tool at your disposal. Mounting Inner Rows Great Plains | 556-436M...

  • Page 25: Mounting Outer Rows

    Important Safety Information Mounting outer rows Image Reference Description Qty* KG00480261 Hex. screw M16x40 KG01067961 Lock nut M16 5/9/2022...

  • Page 26: Overlapping Discs

    HS2200-13 - HS2200-23 Overlapping discs 97 mm - 4” 97 mm - 4” Great Plains | 556-436M...

  • Page 27: U-Clamp

    Important Safety Information 97 mm - 4” 97 mm - 4” U-clamp 500 Nm - 370 ft.lbf 5/9/2022...

  • Page 28: Result

    HS2200-13 - HS2200-23 Result Great Plains | 556-436M...

  • Page 29: Depth Control Wheels

    Important Safety Information Depth control wheels Parts Image Reference Description Diameter 18mm of the studs KG01068561 Lock nut m30 Recommended 270 N.m torque 199 ft.lbf Tension pin KG01195400 12x40 KK010315 Bolt w/ head RF27115 Wheel axle Assembly 5/9/2022...

  • Page 30: Hydraulic Diagram

    HS2200-13 - HS2200-23 Hydraulic diagram Great Plains | 556-436M...

  • Page 31: Deflectors Assembly

    Important Safety Information Deflectors Assembly Parts Image Reference Description Hex. screw KG00480261 m16x40 8.8 KG01067961 Lock nut m16 A135767763 Locking Pin 7M Fold Bracket Assembly (left shown) 5/9/2022...

  • Page 32: Result

     Tighten to the torque recommended in section "Standard tightening torques“. For 7M machines, bolt the foldable hinge A between the disc frame Deflector - 7M plate and the lateral deflector B: machines Install locking pin A into the locked position with keeper. Great Plains | 556-436M...

  • Page 33: Assembly

    Important Safety Information Rollers Parts Image Reference Description A135369562 U bolt M20 KG01068161 Lock nut M20 Assembly 5/9/2022...
  • Page 34 1. Tighten so the tube comes in contact with the plate. 2. Tighten to the recommended torque. 1. Tighten so the tube comes in contact with the plate. 3. Tighten to the recommended torque. Recommended Torque: 295ft lbs/400N.m x 16 Great Plains | 556-436M...
  • Page 35 Important Safety Information 5/9/2022...

  • Page 36: Finger Harrow

    HS2200-13 - HS2200-23 Finger harrow Parts Image Reference Description RF04030 U bolt M16 KG01067961 Lock nut M16 Assembly Adjustments Machine inches HS2200-13 Qualidisc ” ” HS2200-16 Qualidisc HS2200-20 Qualidisc ” ” HS2200-23 Qualidisc Great Plains | 556-436M...

  • Page 37: Result

    Important Safety Information Result 5/9/2022...

  • Page 38: Lighting

    HS2200-13 - HS2200-23 Lighting Front signs assembly Parts Image Reference Description KG00357761 Hex. bolt m12x60 KG01067761 Lock nut m12 Assembly Great Plains | 556-436M...

  • Page 39: Rear Signs Assembly

    Important Safety Information Rear signs assembly Parts Image Reference Description Image Reference Description KG01267561 Washer m12 KG00357761 Hex. bolt m12x60 RF16490 U-bolt diam.16 KG01067761 Lock nut m12 8 KG01067961 Lock nut m16 Assembly 5/9/2022...
  • Page 40 HS2200-13 - HS2200-23 Great Plains | 556-436M...

  • Page 41: Fitting

    Important Safety Information Fitting Front Letter Dimension 9’ (2.75m) 13’1 (4.00m) 9’10 (3.00m) 5/9/2022...
  • Page 42 HS2200-13 - HS2200-23 Rear Letter Dimension 9’ (2.75m) 6” (Max. 150mm) 13’1 (4.00m) 9’10 (3.00m) Great Plains | 556-436M...

  • Page 43: Front

    Important Safety Information Front 5/9/2022...

  • Page 44: Rear

    HS2200-13 - HS2200-23 Rear Great Plains | 556-436M...
  • Page 45 Important Safety Information 5/9/2022...

  • Page 46: Checking The Level Adjustment

    HS2200-13 - HS2200-23 Checking the level adjustment Great Plains | 556-436M...

  • Page 47: Adjusting The Level

    Important Safety Information  If side frames are not parallel to the cord, you must adjust the level of the discs gangs. Adjusting the level 5/9/2022...
  • Page 48 HS2200-13 - HS2200-23 Great Plains | 556-436M...

  • Page 49: Result

    Important Safety Information Result 5/9/2022...
  • Page 50 HS2200-13 - HS2200-23 Great Plains | 556-436M...
  • Page 51 Index Index CAUTION, defined .......1 children ..........2 clearance, vertical ........3 DANGER, defined ........1 electrocution .........3 fire ............1 headphones ..........2 high pressure fluids ......2 hydraulic safety ........2 leaks .............2 lifters .............1 lights .............2 maintenance safety ......3 medical assistance .......2 overhead lines ........3 protective equipment ......2 riders ............2 Safety...
  • Page 52 HT1100-20 - HT1100-30 Great Plains | 586-831Q...
  • Page 54 Great Plains, Mfg. 1525 E. North St. P.O. Box 5060 Salina, KS 67402...
