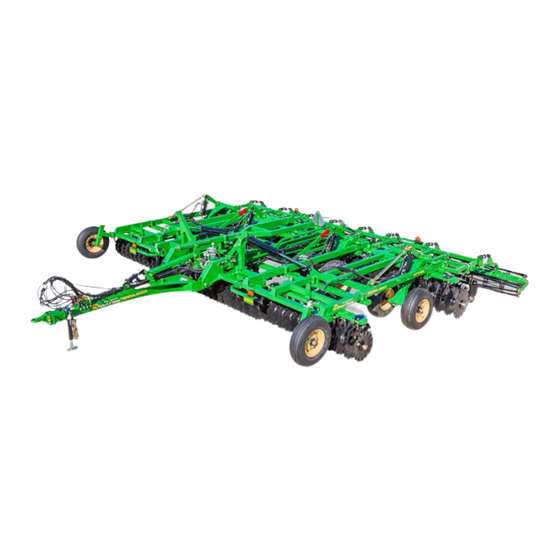

GREAT PLAINS Terra Max HT1100-20 Field Adjustment Manual
Tillage
Hide thumbs
Also See for Terra Max HT1100-20:
- Predelivery manual (96 pages) ,
- Assembly manual (72 pages) ,
- Operator's manual (48 pages)
Table of Contents
Advertisement
Quick Links

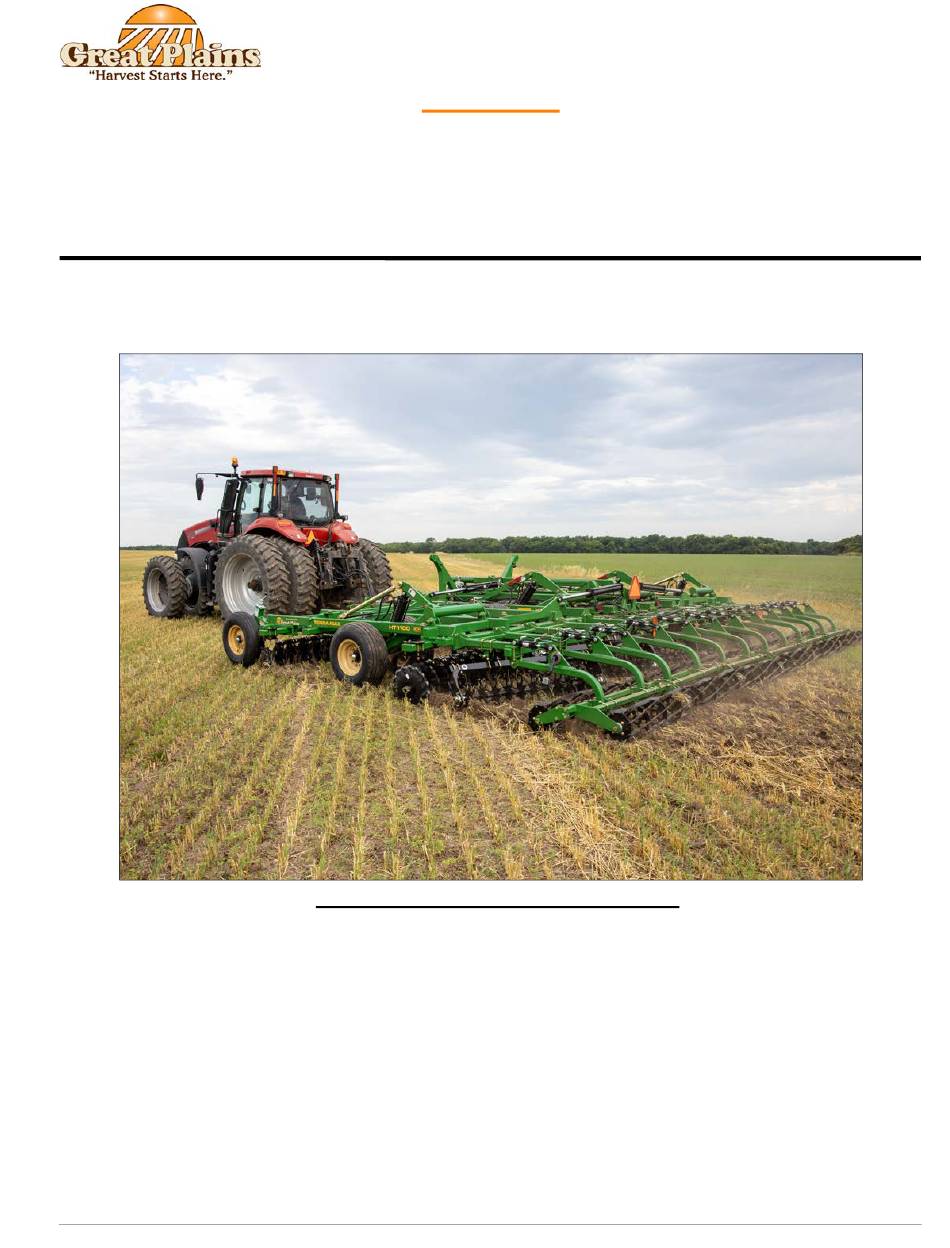

FIELD ADJUSTMENT GUIDE
Tillage
Terra Max
Date: July 14, 2020
TLUS625C-0001B
Document #
Models Affected:HT1100-20, HT1100-25, HT1100-30
General Information
Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic
inspection of equipment, costly maintenance, time and repair can be avoided. The following information
will assist with recommended servicing and adjustments:
49664
First Time Field Setting Recommendation:
1) Gang Angle - 3-4 Degree
2) Working Depth - 2.5-3 Inches
3) Wing Down Pressure - Start in "FLOAT". Increase to 200 PSI
if pressure is needed
4) Fore/Aft - Machine must be level front to rear to ensure all
blades are working the same depth
5) Finish Reel Down Pressure - Start in "FLOAT". Increase to
200-300 PSI is pressure is needed
6) Operating Speed - 7-9 MPH
1 of 6
Document
#TLUS625C-0001B
Advertisement
Table of Contents
Related Manuals for GREAT PLAINS Terra Max HT1100-20
Summary of Contents for GREAT PLAINS Terra Max HT1100-20
- Page 1 FIELD ADJUSTMENT GUIDE Tillage Terra Max Date: July 14, 2020 TLUS625C-0001B Document # Models Affected:HT1100-20, HT1100-25, HT1100-30 General Information Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic inspection of equipment, costly maintenance, time and repair can be avoided. The following information will assist with recommended servicing and adjustments: 49664 First Time Field Setting Recommendation:...
- Page 2 52 PSI Wings 30 Hydraulic Hose Hookup: Hydraulic Hose Hookup Great Plains hydraulic hoses have colored coded han- Color Function dle grips to help hook up hoses to the tractor remotes. Hoses with the same color use the same remote.
- Page 3 Wing Adjustment Turnbuckle: Note: Prior to leveling the wings, ensure that the machine is level front to rear. 1) Lower the machine until the coulter gangs are 1- 2” off of the ground. 2) Loosen the jam nuts, and adjust the wing turn- buckles (shortening the turnbuckles lowers the wings and extending the turnbuckles raises the wings) to match the center frame.
- Page 4 Hydraulic Down Pressure Adjustment: (HT1100-20, HT1100-25, HT1100-30) Note: This setup procedure is for tractors with closed center pressure compensated or pressure and flow compensating hydraulic systems. Open center hydrau- lics are NOT SUPPORTED. 1) With the machine unfolded, engage the fold/unfold hydraulics for continuous flow (unfold position).
- Page 5 Hydraulic Single Point Depth Stop Adjustment: The hydraulic dept stop will ensure a consistent depth every time the implement is lowered. 1) Once the machine is level and set to the desired working depth, set the hydraulic depth stop at the front of the machine.
- Page 6 Gauge Wheel Adjustment: Note: The gauge wheels should be set in the field position to be 1/2” to 1 1/2” off the ground. 1) Loosen the set screws on each gauge wheel. 2) Turn the jack handle to adjust the spindle receiver. Adjusting the jack handle counterclockwise will run the wheel closer to the ground while turning the jack handle clockwise will cause the wheel to run further...
