Pre-Delivery Manual

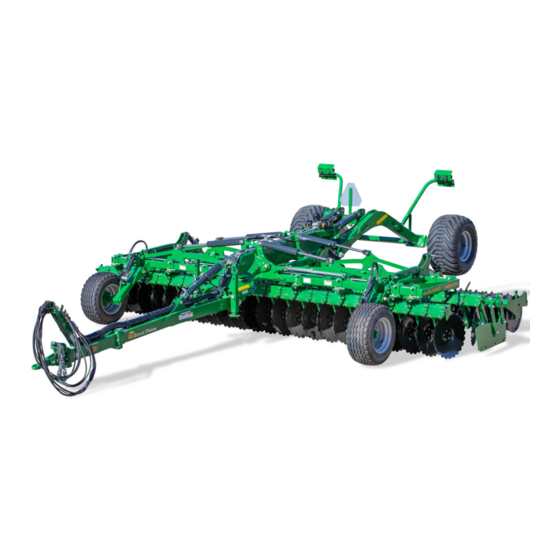

HS2200-13, HS2200-16, HS2200-20 & HS2200-23
Read the operator's manual entirely. When you see this symbol, the
subsequent instructions and warnings are serious - follow without
exception. Your life and the lives of others depend on it!
Illustrations may show optional equipment not supplied with standard unit.
ORIGINAL INSTRUCTIONS
© Copyright 2020
Table of Contents
Index
Qualidisc
Manufacturing, Inc.
www.greatplainsmfg.com
Printed 2020-12-21
Index
EN
556-436Q
